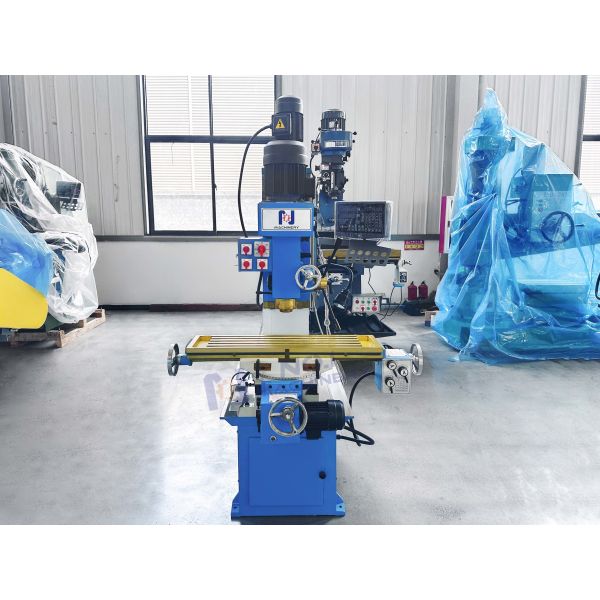

ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
ZX50C
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
1350USD
Payment Terms :
T/T
Supply Ability :
1500 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum diameter of drilled hole(mm) :
50
Table size(mm) :
900*240
Table travel(mm) :
400/230/120
Spindle taper :
MT4
Spindle speed range(rpm) :
115-1750
Distance between spindle nose and table surface(mm) :
38-430
motor power(kw) :
1.5/2.2
Description

ZX50C High-quality Metal Drilling and Milling Machine with Digital Display


The ZX50C drilling and milling machine is a versatile multi-purpose machine tool integrating drilling and milling functions. It is ideally designed for machining small and medium-sized workpieces. Featuring a compact structure, easy operation, high machining accuracy and exceptional stability, this machine is equipped with a wide spindle speed range to meet the processing demands of various materials. Widely used in machinery manufacturing, mold making and other industrial fields, the ZX50C is an ideal and cost-effective solution for small and medium-sized enterprises.


standard configuration:

1. X-axis automatic tool feed

optional configuration:

1. Y-axis automatic tool feed

2. Electric lift of Z axis

3.Three-axis digital display

4.Two-axis digital display

Product specification:

Item
Unit
ZX50C
Maximum diameter of drilled hole
mm
50
End mill maximum width
mm
100
Maximum diameter of vertical milling
mm
25
Boring maximum diameter
mm
120
Maximum tapping diameter
mm
M16
Spindle taper hole

MT4
Distance from spindle end face to table
mm
38-430
Spindle speed range
rpm
115-1750
Spindle stroke(z)
mm
120
Working desk size
mm
900*240
Workbench stroke
mm
500*250
Dimensions
mm
1100*970*1650
Motor power
kw
1.5/2.2
Weight
Kg
500/600

Details Display:

ZX50C High-quality Metal Drilling and Milling Machine with Digital Display

ZX50C High-quality Metal Drilling and Milling Machine with Digital Display

ZX50C High-quality Metal Drilling and Milling Machine with Digital Display

ZX50C High-quality Metal Drilling and Milling Machine with Digital Display
