Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
ZX7550CW
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
3300USD
Payment Terms :
T/T
Supply Ability :
1500 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum diameter of drilled hole(mm) :
50
Table size(mm) :
1000x240
Table travel(mm) :
500/230/120
Spindle taper hole :
MT4
Maximum tapping diameter :
M16
Spindle speed range(rpm) :
90-490
motor power(kw) :
1.5/2.2
Description

China ZX7550CW Vertical and Horizontal Milling Machine Small Universal Milling


The ZX7550CW drilling and milling machine is a high-performance multifunctional machine tool that integrates drilling and milling functions, ideal for machining small and medium-sized workpieces. Featuring a compact structure, user-friendly operation, superior machining precision and stable running performance, it comes with an extensive spindle speed range to satisfy the processing requirements of a wide variety of materials. Widely applied in machinery manufacturing, mold processing and other industrial fields, the ZX7550CW is an excellent and cost-effective choice for small and medium-sized enterprises.


standard configuration:

1. X-axis automatic tool feed

optional configuration:

1. Y-axis automatic tool feed

2. Electric lift of Z axis

3.Three-axis digital display

4.Two-axis digital display

Product specification:

PARAMETER ITEM
UNIT
ZX7550CW
Maximum diameter of drilled hole
mm
50
End mill maximum width
mm
100
Maximum diameter of vertical milling
mm
25
Boring maximum diameter
mm
120
Maximum tapping diameter
mm
M16
Spindle taper hole

MT4
Distance from spindle end face to table
mm
90-490
Spindle speed range
rpm
115-1750(V) 60-1350(H)
Spindle stroke(Z)
mm
120
Working desk size
mm
1000x240
Workbench stroke
mm
500x230
Dimensions
mm
1280x100x2080
Motor Power
kw
1.5/2.2
Weight
kg
1000/1100

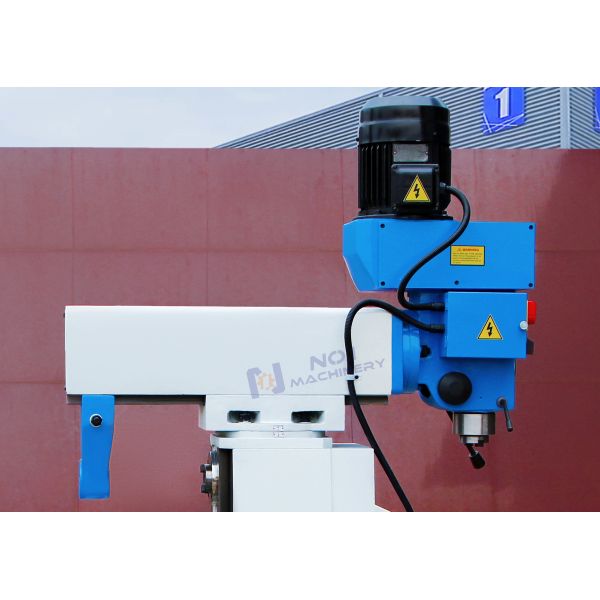

Details Display:

China ZX7550CW Vertical and Horizontal Milling Machine Small Universal Milling

China ZX7550CW Vertical and Horizontal Milling Machine Small Universal Milling

China ZX7550CW Vertical and Horizontal Milling Machine Small Universal Milling

China ZX7550CW Vertical and Horizontal Milling Machine Small Universal Milling
