China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
ZX6350
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
3850USD
Payment Terms :
T/T
Supply Ability :
1500 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum diameter of drilled hole(mm) :
50
Table size(mm) :
1200x280
Table travel(mm) :
650/280/350
Spindle taper hole :
MT4
Maximum tapping diameter :
M16
Spindle speed range(rpm) :
90-450
motor power(kw) :
1.5/2.2
Description

China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed

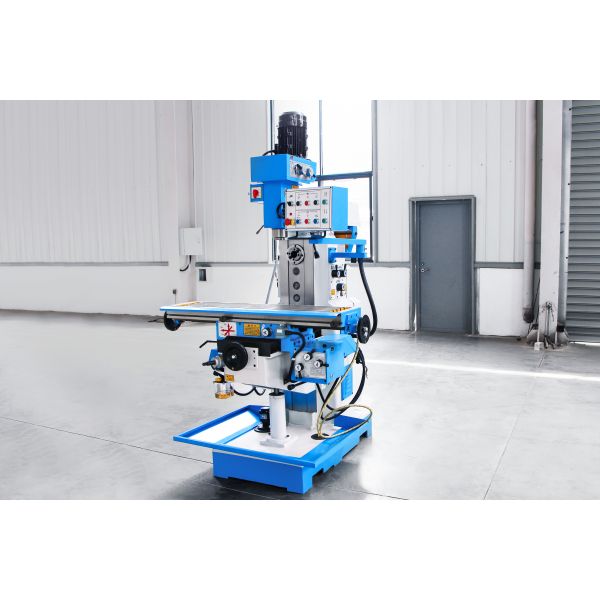

The ZX6350 is a high-performance multi-functional drill milling machine, integrating drilling, milling and tapping functions into a compact, space-saving unit. With an intuitive operation design, it offers outstanding machining flexibility for diverse processing tasks. Featuring a side-swiveling spindle head and a three-axis movable worktable, the ZX6350 is excellent for machining planes, grooves and gears on small and medium-sized workpieces. Its all-in-one performance makes it a must-have equipment for tool maintenance workshops, small-batch production lines and general machining workshops.


standard configuration:

1. ZX6350: X/Y axis automatic tool feed

2. ZX6350C: X axis automatic tool feed

3. ZX6350A: X/Y axis automatic tool feed Zaxis electric lifting

optional configuration:

1. 1500x250mm worktable

2. Can be changed to CNC three-axs linkage

3. 2/3-axis digital display


Product specification:

PARAMETER ITEM
UNIT
ZX6350
Drilling diameter
mm
50
End milling maximum width
mm
100
Vertical milling maximum diameter
mm
25
Maximum diameter of the pupil
mm
120
Maximum tapping diameter
mm
M16
Spindle taper

MT4
Spindle end to table distance
mm
90-450
Spindle speed range
rpm
(V)115-1750 (H)40-150
Spindle travel(Z)
mm
120(V)
Working desk size
mm
1200/1500x280x400
Workbench trip (X/Y)
mm
650/900x280x350
Dimensions
mm
1680x1480x2250
Motor Power
kw
1.5 /2.2(V) 2.2(H)
Weht
kg
1450/1560

Details Display:

China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed

China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed

China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed

China High Efficiency Drilling Machine ZX6350 with X/Y axis Automatic Tool Feed
