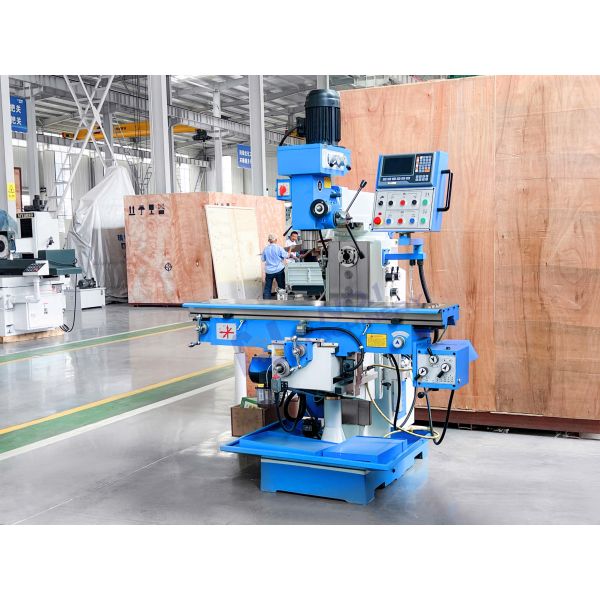

ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
ZX6332A
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
6300USD
Payment Terms :
T/T
Supply Ability :
1500 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum diameter of drilled hole(mm) :
50
Table size(mm) :
1500x320
Table travel(mm) :
1000/320/400
Spindle taper hole :
MT4
Maximum tapping diameter :
M16
Spindle speed range(rpm) :
80-480
motor power(kw) :
1.5/2.2
Description

ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing


A milling machine is a small to medium-sized general-purpose metal cutting machine tool suitable for drilling, reaming, boring, and hole machining. It has both vertical and horizontal milling functions, capable of milling planes, inclined surfaces, grooves, and splines on small and medium-sized parts. It is widely used in machining, mold making, instrumentation, and metering industries. When a milling machine is working, the workpiece is mounted on the worktable or indexing head and other attachments. The milling cutter rotates as the main motion, supplemented by the feed motion of the worktable or milling head, to obtain the desired machined surface. Due to its multi-bladed intermittent cutting, the milling machine has high productivity. Simply put, a milling machine is a machine tool that can perform milling, drilling, and boring operations on workpieces.

The milling machine's worktable can move longitudinally and laterally, the spindle is vertically arranged, usually a table type, and the milling head can be raised and lowered. It is a machine tool with multiple cutting functions such as drilling, milling, boring, grinding, and tapping. The worktable can automatically feed longitudinally. It has an advanced and reasonable structure, is easy and flexible to operate, and is convenient to maintain.


standard configuration:

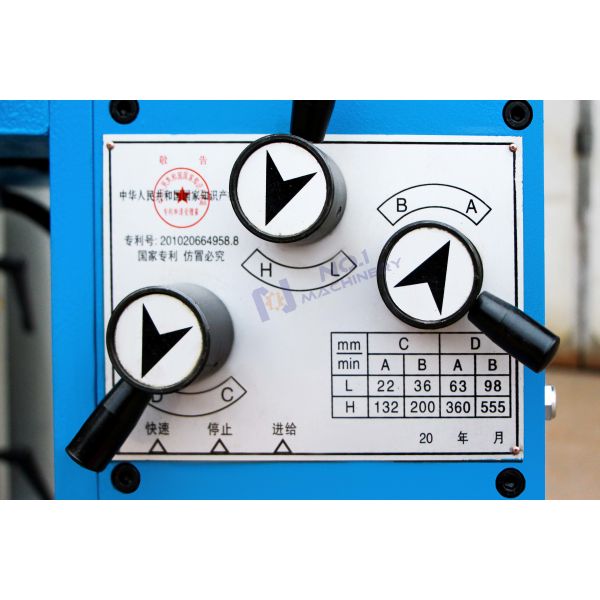

X/Y axis automatic tool feed

optional configuration:

1. Spindle automatic feed

2. Can be changed to three-axis CNC

3.4kw Main motor optional large head 4KW


Product specification:

PARAMETER ITEM
UNIT
ZX6332A
Drilling diameter
mm
50
End milling maximum width
mm
100
Vertical milling maximum diameter
mm
25
Maximum diameter of the pupil
mm
120
Maximum tapping diameter
mm
M16
Spindle taper

MT4/7:24:40
Spindle end to table distance
mm
80-480

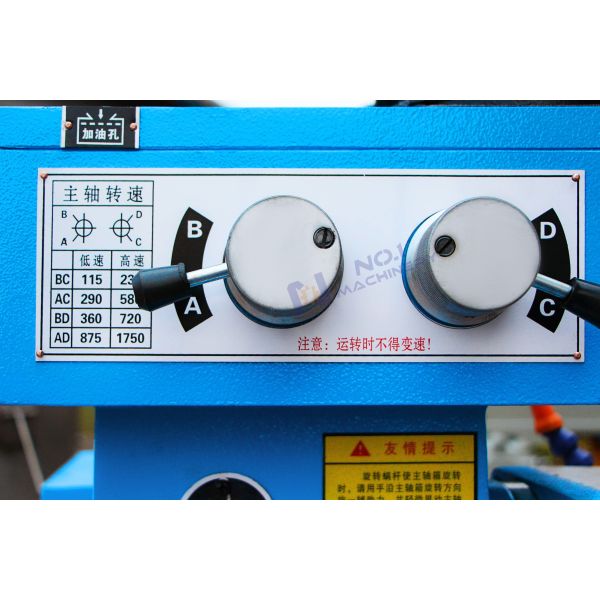

Spindle speed range
rpm
(V)115-1750(H)40-1300
Spindle travel(Z)
mm
120(V)
Working desk size
mm
1500x320x400
Workbench trip (X/Y)
mm
1000/320/400
Dimensions
mm
1720x1520x2225
Motor Power
kw
1.5 /2.2(V)2.2(H)
Weht
kg
1770/1900

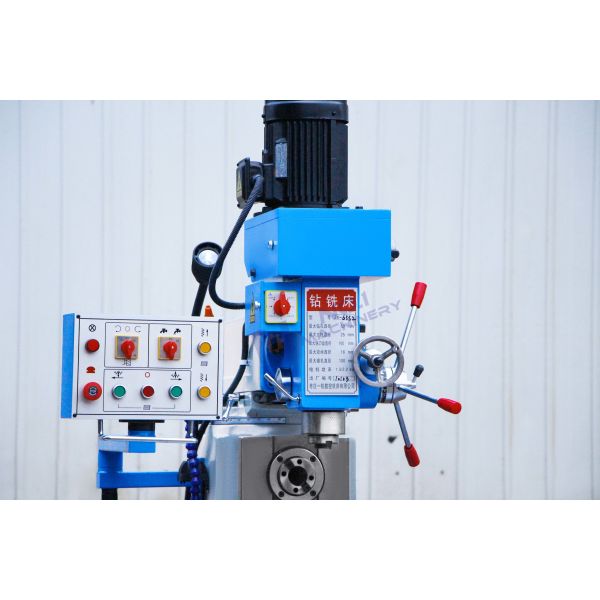

Details Display:

ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing

ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing

ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing

ZX6332A Spindle Automatic Feeding Drilling and Milling Machine for Metal Processing
