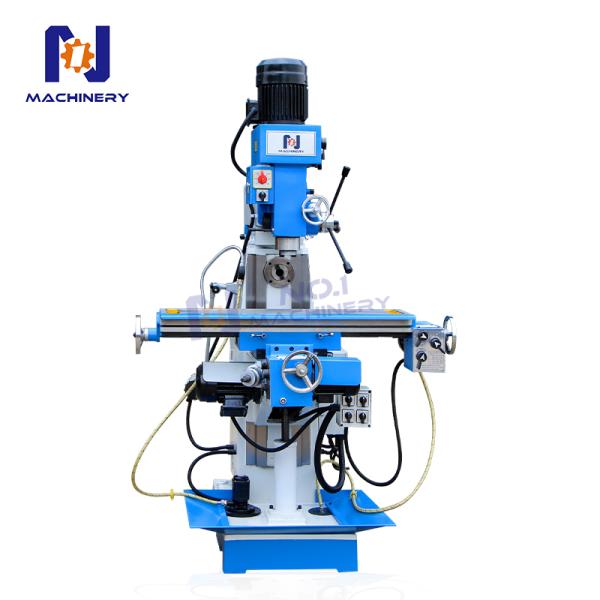

ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
ZX7550CW
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
3300USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum diameter of drilled hole(mm) :
50
Table size(mm) :
1000x240
Table travel(mm) :
500/230/120
Spindle taper hole :
MT4
Maximum tapping diameter :
M16
Spindle speed range(rpm) :
90-490
motor power(kw) :
1.5/2.2
Description

ZX7550CW High Quality Drilling and Milling Machine with 1000X240mm Table Size

The drilling and milling machine ZX7550CW is a multifunctional machine tool that integrates drilling and milling functions and is suitable for the processing of small and medium-sized parts. The equipment has a compact structure, easy operation, high processing accuracy and stability. The spindle speed range is wide, which can meet the processing needs of various materials. ZX7550CW is widely used in machinery manufacturing, mold processing and other fields, and is an ideal choice for small and medium-sized enterprises.

standard configuration:

1. X-axis automatic tool feed

optional configuration:

1. Y-axis automatic tool feed

2. Electric lift of Z axis

3.Three-axis digital display

4.Two-axis digital display

Product specification:

PARAMETER ITEM
UNIT
ZX50C
ZX7550CW
Maximum diameter of drilled hole
mm
50
50
End mill maximum width
mm
100
100
Maximum diameter of vertical milling
mm
25
25
Boring maximum diameter
mm
120
120
Maximum tapping diameter
mm
M16
M16
Spindle taper hole
MT4
MT4
Distance from spindle end face to table
mm
38-430
90-490
Spindle speed range
rpm
115-1750
115-1750(V) 60-1350(H)
Spindle stroke(Z)
mm
120
120
Working desk size
mm
900x240
1000x240
Workbench stroke
mm
400x230
500x230
Dimensions
mm
1100x970x1650
1280x100x2080
Motor Power
kw
1.5/2.2
1.5/2.2
Weight
kg
500/600
1000/1100

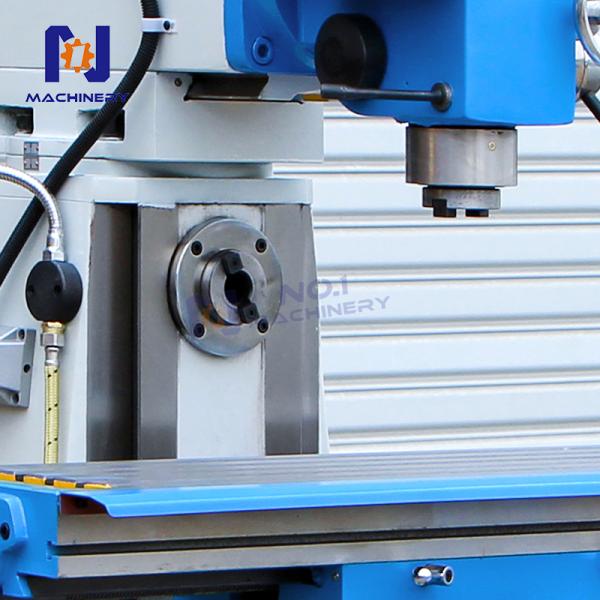

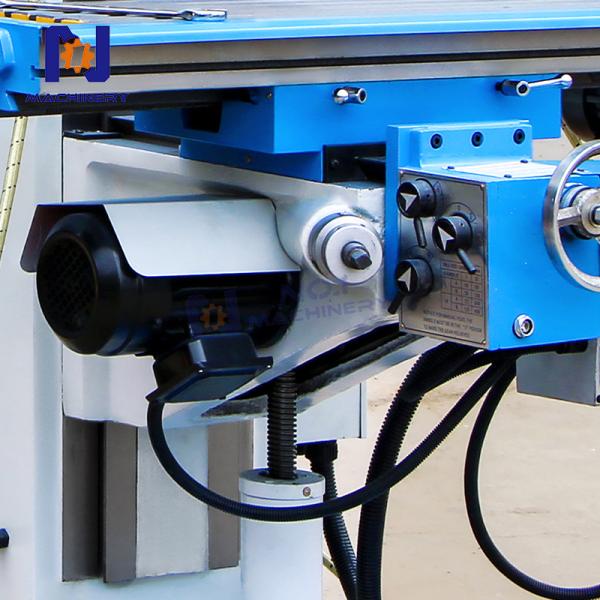

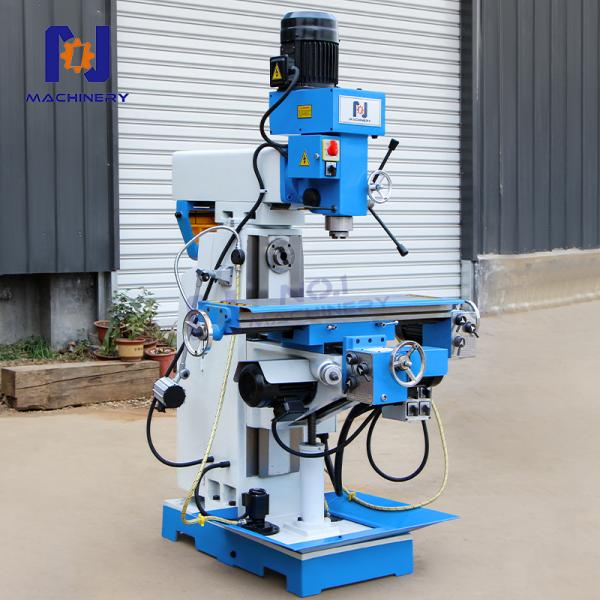

Details Display:

ZX7550CW Drilling Milling Machine With 1000X240mm Table Size

ZX7550CW Drilling Milling Machine With 1000X240mm Table Size

ZX7550CW Drilling Milling Machine With 1000X240mm Table Size

ZX7550CW Drilling Milling Machine With 1000X240mm Table Size
