Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
ZX6332A
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
6300USD
Payment Terms :
T/T
Supply Ability :
1500 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum diameter of drilled hole(mm) :
50
Table size(mm) :
1500x320
Table travel(mm) :
1000/320/400
Spindle taper hole :
MT4
Maximum tapping diameter :
M16
Spindle speed range(rpm) :
80-480
motor power(kw) :
1.5/2.2
Description

ZX6332A China Factory Vertical and Horizontal Milling Machine with Best Prices

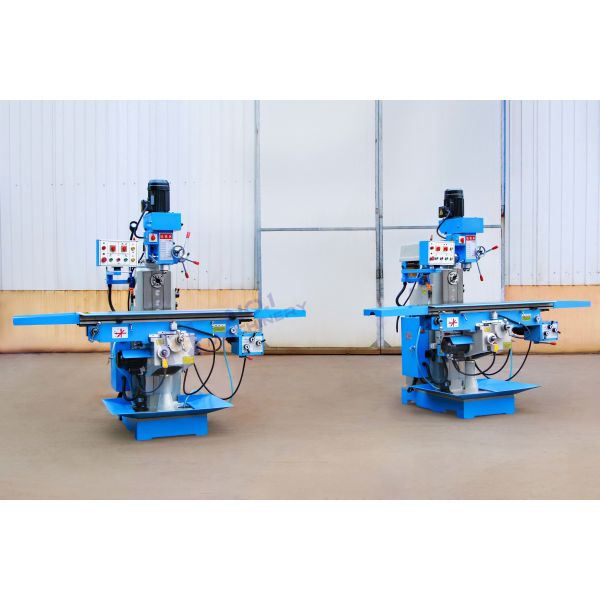

ZX6332A Multi-Function Drill Milling Machine: All-in-one solution for drilling, milling and tapping. The worktable can also be automatically fed in both the forward and reverse longitudinal and transverse directions, and is equipped with a limit stop safety protection device.Boasting a compact structure and easy operation, it features a swivel spindle head and 3-axis table movement. Ideal for machining planes, grooves and gears on small to medium-sized workpieces, it is the perfect pick for workshop use.


standard configuration:

1.X/Y axis automatic tool feed

2.Electric lift of Z axis

3.3 axis DRO

optional configuration:

1. Spindle automatic feed

2. Can be changed to three-axis CNC

3.4kw Main motor optional large head 4KW


Product specification:

PARAMETER ITEM
UNIT
ZX6332A
Drilling diameter
mm
50
End milling maximum width
mm
100
Vertical milling maximum diameter
mm
25
Maximum diameter of the pupil
mm
120
Maximum tapping diameter
mm
M16
Spindle taper

MT4/7:24:40
Spindle end to table distance
mm
80-480
Spindle speed range
rpm
(V)115-1750(H)40-1300
Spindle travel(Z)
mm
120(V)
Working desk size
mm
1500x320x400
Workbench trip (X/Y)
mm
1000/320/400
Dimensions
mm
1720x1520x2225
Motor Power
kw
1.5 /2.2(V)2.2(H)
Weht
kg
1770/1900
