3.5 Inch Car Instrument Cluster IPS TFT LCD Display 320×240 Resolution Module
3.5 Inch Car Instrument Cluster IPS TFT LCD Display 320×240 Resolution Module
3.5 Inch Car Instrument Cluster IPS TFT LCD Display 320×240 Resolution Module
3.5 Inch Car Instrument Cluster IPS TFT LCD Display 320×240 Resolution Module
Specifications
Model Number :
JT-3.5IPS1AUTO
CTP Structure :
GF/GFF
CTP Interface :
12c
Resolution :
320*240
Luminance :
250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)
Certification :
ISO9001 / ISO14000
Viewing Angle :
85/85/85/85
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Brand Name :
Jingtai
Packaging Details :
Standard Exportation Package
Place of Origin :
Shenzhen/China
Price :
1-20
Delivery Time :
1-5 weeks
MOQ :
5pcs
Supply Ability :
2000K Pcs Per Month
Key Words :
3.5 Inch IPS TFT
Interface Definition :
RGB/LVDS
Touch Screen :
CTP
Description

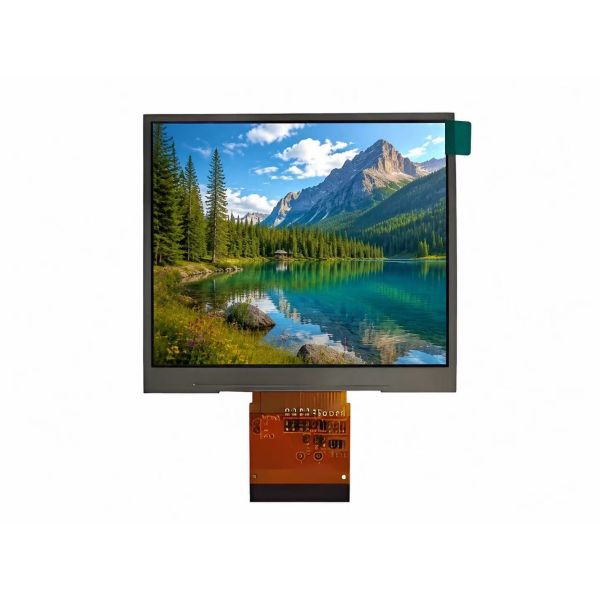

3. 5 Inch Car Instrument Cluster IPS TFT LCD Display 320×240 Resolution Module


Product Overview

This 3.5-inch IPS TFT LCD module features a 320×240 resolution with RGB/LVDS interface, designed for automotive dashboards and instrument clusters. Its normally black display mode delivers clear visuals and fast response, while the compact module allows easy integration into vehicle panels and center consoles.


Performance & Reliability

The IPS panel ensures rapid response times and stable visual performance. High contrast and reliable signal transmission make it suitable for professional automotive applications, with consistent operation across a wide temperature range of -30°C to +85°C.


Design & Integration

The module’s compact and lightweight design, along with carefully positioned FPC and edge alignment, simplifies integration into dashboard and embedded systems. Its layout is optimized for minimal space usage and straightforward installation in vehicle instrument clusters.


Industrial Suitability

Engineered for automotive environments, this module supports long-term operation under varying temperature and vibration conditions. Its durability and stability make it ideal for instrument clusters, center control systems, navigation displays, and embedded vehicle applications.

Designed for automotive OEMs, this compact IPS TFT LCD module ensures reliable operation in dashboards, instrument clusters, and embedded systems. Its high-contrast display, fast response, and robust construction make it ideal for real-time vehicle data monitoring, navigation, and multimedia displays under varying temperature and vibration conditions.


Product Specifications

Number Of Pixels

320*240pixels

Active Area

70.08*52.56mm

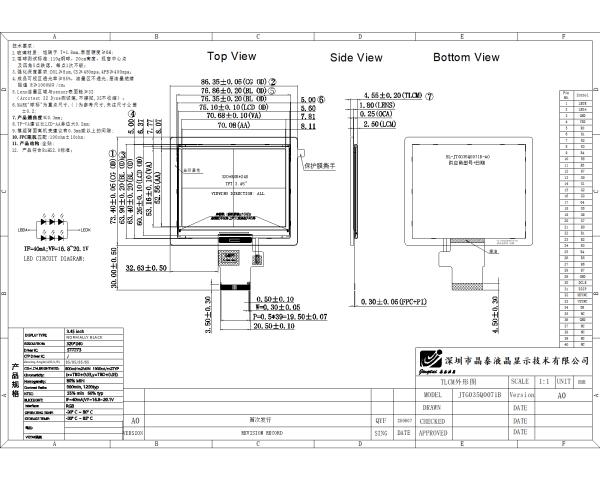

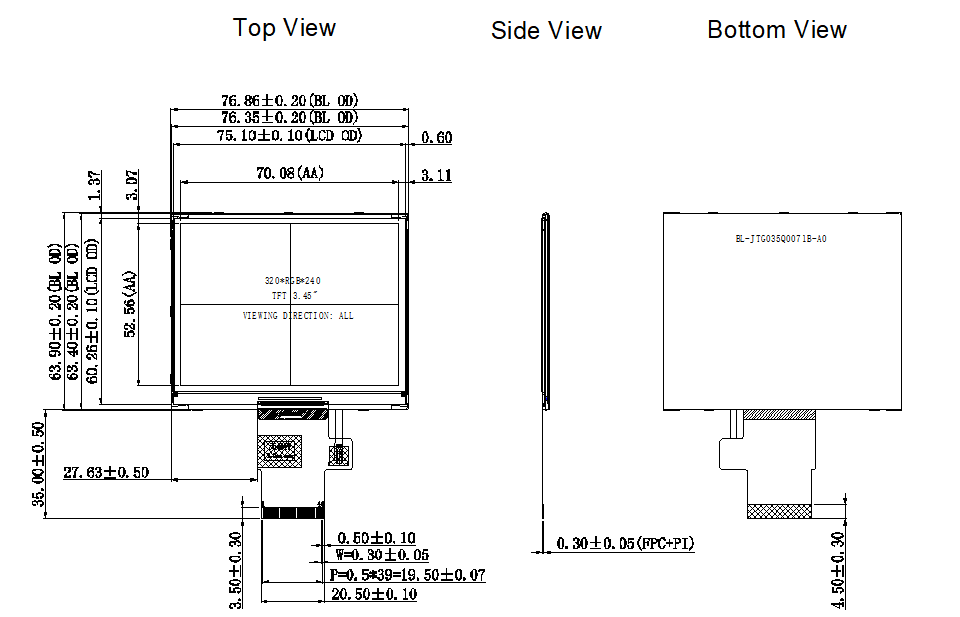

Module Outline

76.86*63.90*2.50mm

Aspect Ratio

4:3

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

900(Min) 1200(Typ)

NTSC

60%Typ

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)

Interface

RGB/LVDS

Operating Temperature

-30~+80℃

Storage Temperature

-30~+85℃



3.5 Inch Car Instrument Cluster IPS TFT LCD Display

3.5 Inch Car Instrument Cluster IPS TFT LCD Display 320×240 Resolution Module

3.5 Inch Car Instrument Cluster IPS TFT LCD Display 320×240 Resolution Module3.5 Inch Car Instrument Cluster IPS TFT LCD Display 320×240 Resolution Module
