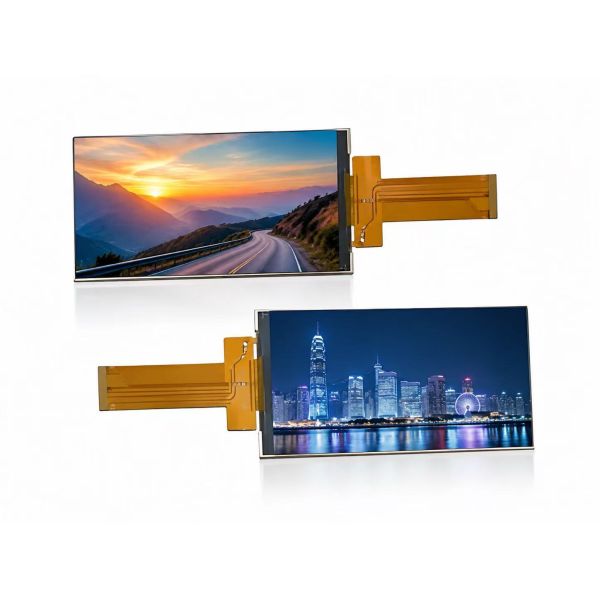

5.0 Inch IPS FW TFT LCD Module For Car Dashboard And Instrument Cluster
5.0 Inch IPS FW TFT LCD Module For Car Dashboard And Instrument Cluster
5.0 Inch IPS FW TFT LCD Module For Car Dashboard And Instrument Cluster
5.0 Inch IPS FW TFT LCD Module For Car Dashboard And Instrument Cluster
Specifications
Key Words :
5.0 Inch IPS TFT LCD
Price :
1-20
Model Number :
JT-IPSAUTOFW
Supply Ability :
2000K Pcs Per Month
Interface Definition :
MIPI
Certification :
ISO9001 / ISO14000
CTP Interface :
12c
Delivery Time :
1-5 weeks
Luminance :
250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)
Packaging Details :
Standard Exportation Package
Viewing Angle :
80/80/80/80
Touch Screen :
CTP
Place of Origin :
Shenzhen/China
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Brand Name :
Jingtai
CTP Structure :
GG
MOQ :
5pcs
Resolution :
480*854
Description

5.0 Inch IPS FW TFT LCD Module For Car Dashboard And Instrument Cluster


This 5.0 inch IPS FW TFT LCD module is designed for automotive dashboard and instrument display applications. With 480×854 resolution and MIPI interface, the module provides clear display performance and stable signal transmission for vehicle display systems.

The IPS panel offers wide viewing angles and improved color consistency. Optional brightness solutions are available according to different application requirements. The module is suitable for car dashboard displays, instrument clusters, center control systems, and embedded display devices.



Features

  • 5.0 inch IPS TFT LCD display with 480×854 resolution
  • MIPI interface for stable and efficient signal transmission
  • Wide viewing angle technology for improved display visibility
  • Normally black display mode with enhanced contrast performance
  • Optional high brightness solutions up to 1000 cd/m²
  • Compact module structure for automotive integration projects
  • Wide operating temperature range for vehicle environments
  • Stable display performance for automotive and industrial systems


Applications

  • Automotive dashboard display systems
  • Vehicle instrument cluster devices
  • Car center control display equipment
  • Navigation and multimedia display systems
  • Commercial vehicle display applications
  • Industrial control and HMI devices
  • Portable electronic display equipment


Advantages

  • Provides stable and reliable display performance for automotive applications
  • High brightness design improves visibility under strong ambient lighting conditions
  • IPS technology delivers wider viewing angles and better color performance
  • Compact design helps simplify integration into vehicle display systems
  • Wide temperature support ensures reliable operation in harsh environments
  • Helps improve product quality and user visual experience for vehicle systems


Product Specifications

Number Of Pixels

480*854pixels

Active Area

109.65*61.63mm

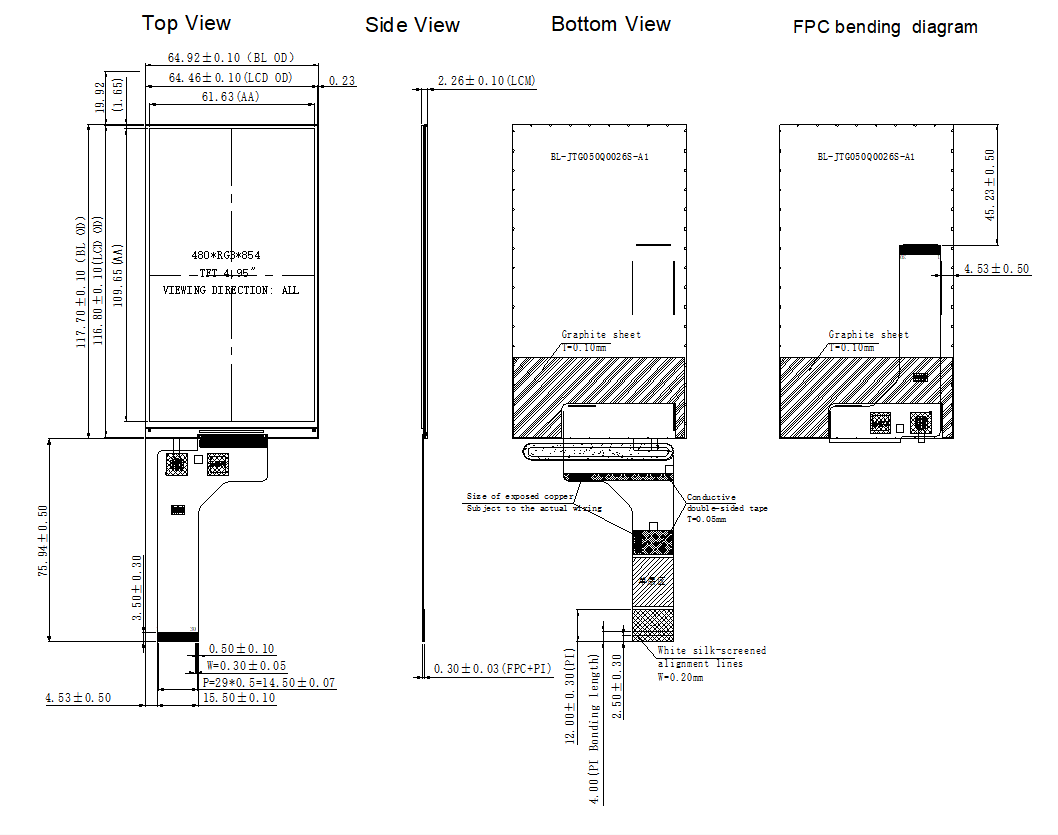

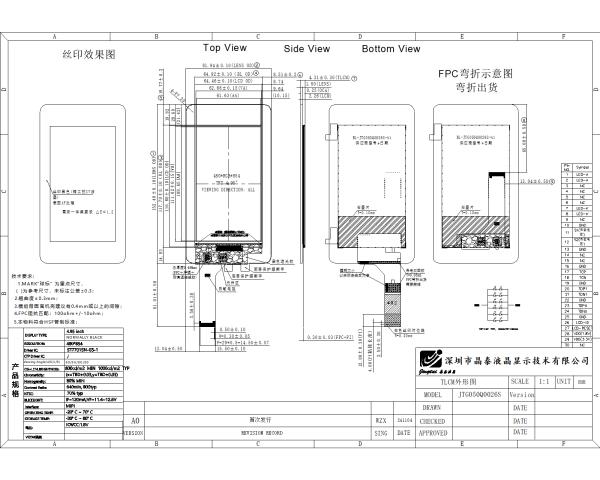

Module Outline

118.78*65.3*2.0mm

Aspect Ratio

16:9

Display Model

Normally Black

Viewing Angle(CR>10)

80/80/80/80

Contrast Ratio

640(Min) 800(Typ)

NTSC

70%TYP

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)

Interface

MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃
