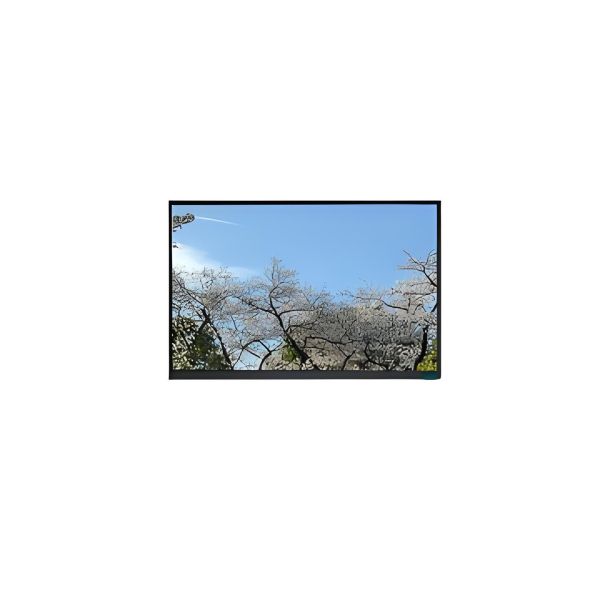

9.0 Inch IPS TFT LCD Module 1280x720 LVDS Display For Automotive Dashboard

Brightness Adaptability & Visual Consistency
This 9‑inch 16:9 IPS TFT LCD module features multi‑level brightness options of 500 cd/m² and 800 cd/m², adapting to strong outdoor sunlight and dim in‑car environments. With 85‑degree full viewing angle on four sides, the panel delivers uniform brightness and stable color reproduction without distortion. The 70% NTSC color gamut ensures vivid color performance, while the normally black structure enhances contrast, making text and icons clearer for long‑term vehicle‑mounted display.

LVDS Signal Transmission & Structural Compatibility

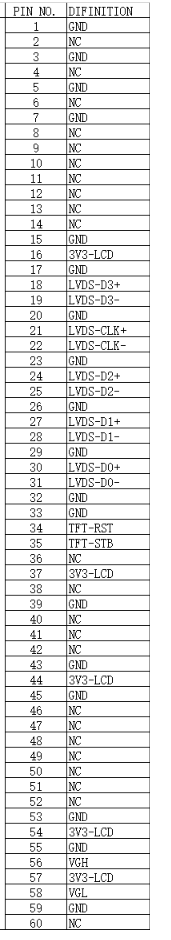

Equipped with standard LVDS interface, the module supports high‑speed and anti‑interference data transmission, effectively avoiding screen flicker, delay and signal loss in complex electromagnetic environments. The compact and standardized outline size simplifies embedded assembly and system debugging. It can be well matched with mainstream automotive control mainboards, shortening equipment development cycles and improving overall system operation stability.

Extreme Temperature Resistance & Long‑term Stability
As automotive‑grade display, it maintains stable operation between ‑30℃ and +80℃, coping with extreme cold, high temperature and frequent temperature changes. The IPS panel with high mechanical stability resists vibration during driving, reducing the risk of abnormal display. Strict material selection ensures long service life and continuous reliable performance in daily vehicle use.

Application Scenarios
• Automotive central control display for navigation, multimedia and vehicle status interaction
• Instrument display terminals for real‑time driving data visualization
• Special vehicle monitoring display requiring wide‑temperature and anti‑interference performance
• Custom embedded display modules for intelligent automotive electronic systems

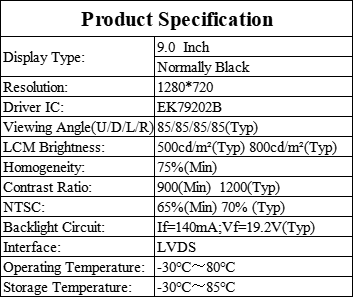

Product Specifications

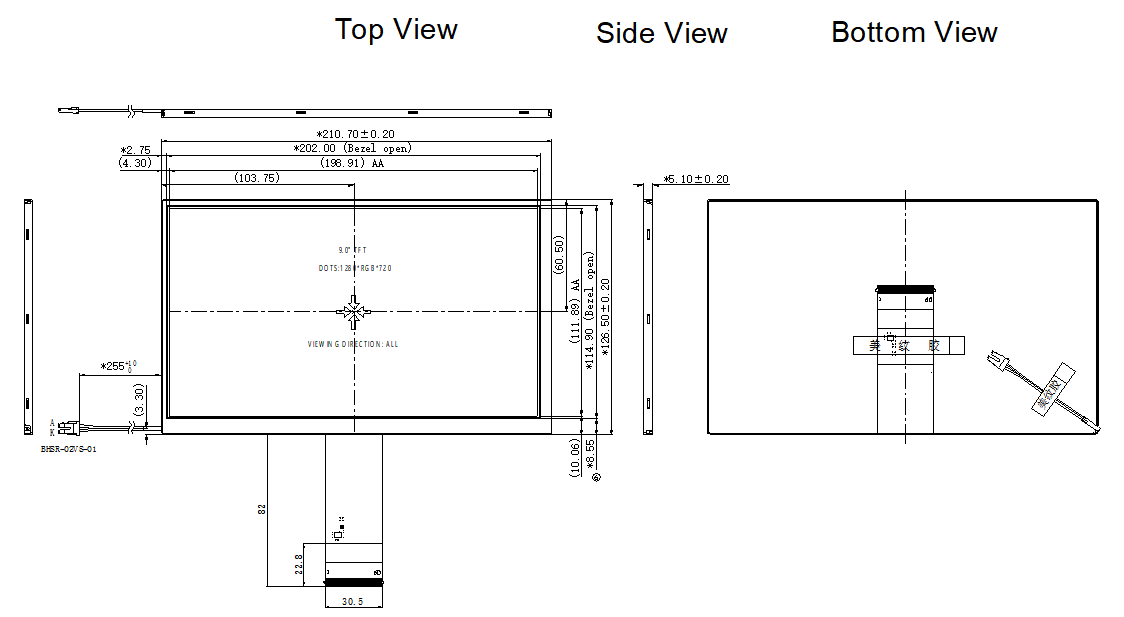

9.0 Inch IPS TFT LCD Module Drawing
