2. 4 Inch Car Instrument IPS TFT LCD 240×320 Display Module with MCU/SPI/RGB Interface
2. 4 Inch Car Instrument IPS TFT LCD 240×320 Display Module with MCU/SPI/RGB Interface
2. 4 Inch Car Instrument IPS TFT LCD 240×320 Display Module with MCU/SPI/RGB Interface
2. 4 Inch Car Instrument IPS TFT LCD 240×320 Display Module with MCU/SPI/RGB Interface
Specifications
Supply Ability :
2000K Pcs Per Month
Luminance :
250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)
Interface Definition :
MCU/SPI/RGB
Display Mode :
IPS Full Viewing Angle
Touch Screen :
CTP
Delivery Time :
1-5 weeks
Model Number :
JT-2.4IPSAUTO
Price :
1-20
Key Words :
2.4 Inch IPS TFT
Place of Origin :
Shenzhen/China
CTP Structure :
GF/GFF
MOQ :
5pcs
CTP Interface :
12c
Packaging Details :
Standard Exportation Package
Resolution :
240*320
Brand Name :
Jingtai
Certification :
ISO9001 / ISO14000
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Description

2. 4 Inch Car Instrument IPS TFT LCD 240×320 Display Module with MCU/SPI/RGB Interface


Product Overview

This 2.4-inch IPS TFT LCD module features a 240×320 resolution with wide viewing angles for clear, accurate color reproduction. It supports MCU, SPI, and RGB interfaces, making it suitable for seamless integration into automotive instrument clusters and dashboard displays. Its compact design ensures space-efficient installation in modern vehicles.


Performance & Reliability

  • Fast response and high contrast for accurate real-time vehicle dat

  • Wide operating temperature range: -30°C to +80°C, ensuring stable performance under typical automotive condition

  • Maintains consistent display quality even under normal vehicle vibrations and movemen

  • Reliable signal transmission for interference-free operation

Environmental Adaptability

  • IPS panel provides wide viewing angles, ensuring readability from multiple positions inside the vehicle
  • Designed to minimize glare and reflections for clear visibility under sunlight or low-light conditions
  • Lightweight and compact structure allows easy placement within dashboards without compromising active display area


Automotive Applications & Advantages

  • Ideal for automotive dashboards, instrument clusters, and navigation systems
  • Suitable for in-vehicle multimedia displays, providing crisp and accurate visuals
  • Enhances driving experience with stable, high-quality display output
  • Robust module design ensures reliable operation in professional automotive environments


The module ensures consistent color and brightness across the entire display area, providing clear and uniform visuals. It offers quick startup and maintains stable operation even during frequent power cycles. Designed for energy-efficient automotive systems, it consumes low power while delivering reliable performance. The module is compatible with various dashboard and infotainment systems, allowing flexible integration into different vehicle designs, and maintains consistent functionality under typical in-vehicle vibrations and temperature fluctuations.


Product Specifications

Number Of Pixels

240*320pixels

Active Area

36.72*48.96mm

Module Outline

40.44*57*2.26mm

Aspect Ratio

4:3

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

640(Min) 800(Typ)

NTSC

70%Typ

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)

Interface

MCU/SPI/RGB

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

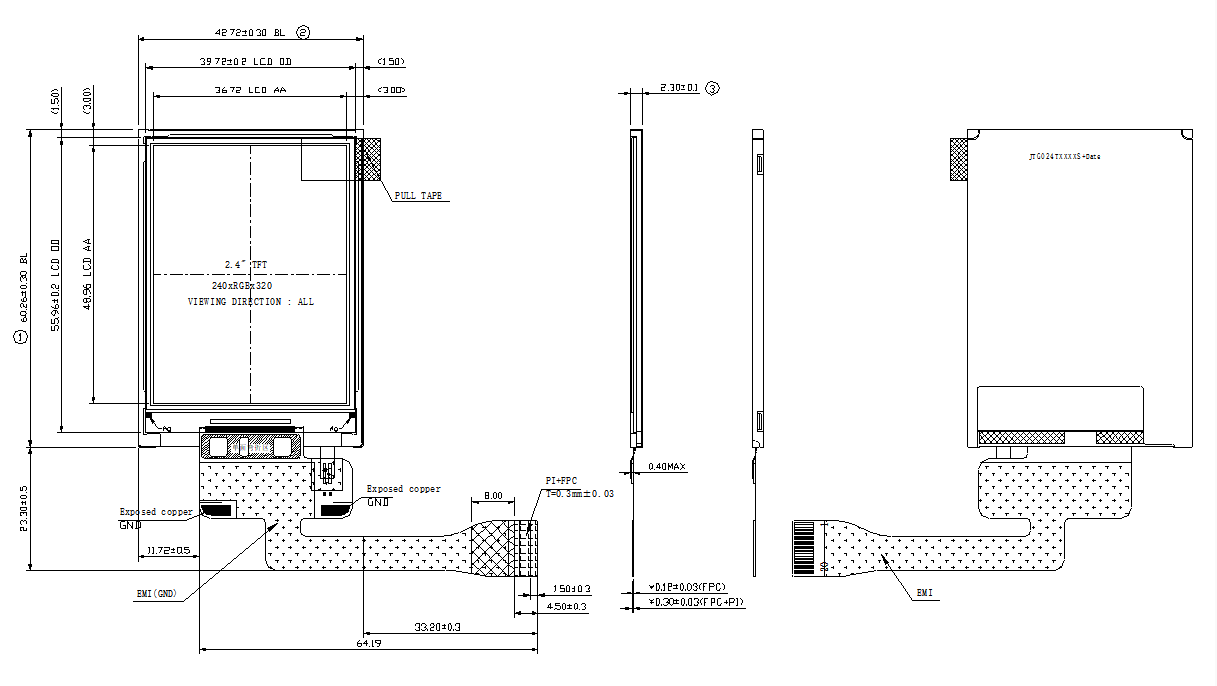

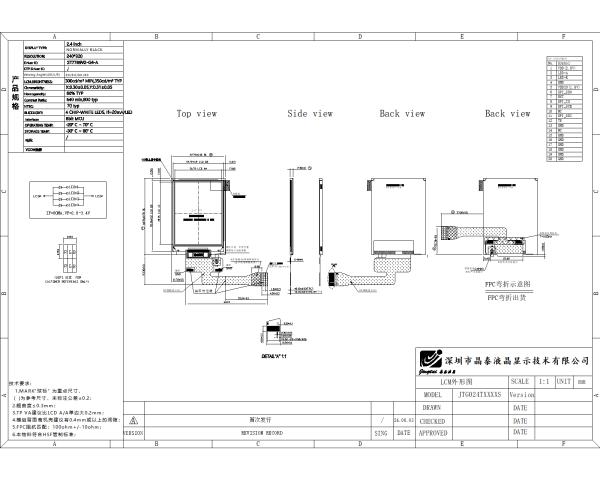

2.4 Inch IPS TFT LCD Display Module Drawing

2. 4 Inch Car Instrument IPS TFT LCD 240×320 Display Module with MCU/SPI/RGB Interface



2. 4 Inch Car Instrument IPS TFT LCD 240×320 Display Module with MCU/SPI/RGB Interface 2. 4 Inch Car Instrument IPS TFT LCD 240×320 Display Module with MCU/SPI/RGB Interface
