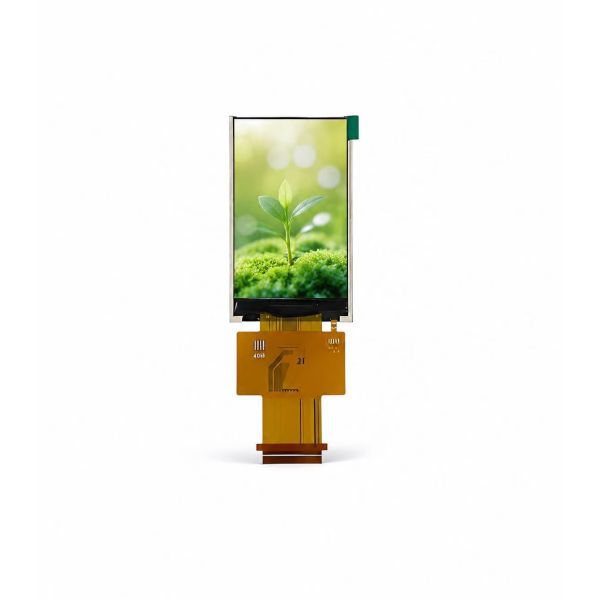

3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard
3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard
3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard
3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard
Specifications
Model Number :
JT-3.5IPS2AUTO
Interface Definition :
MCU/SPI
Brand Name :
Jingtai
CTP Structure :
GF/GFF
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Key Words :
3.5 Inch IPS TFT
CTP Interface :
12c
Price :
1-20
Supply Ability :
2000K Pcs Per Month
Luminance :
500 cd/m²(Typ) 850 cd/m²(Typ)
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Certification :
ISO9001 / ISO14000
Resolution :
320*480
Viewing Angle :
85/85/85/85
MOQ :
5pcs
Place of Origin :
Shenzhen/China
Touch Screen :
CTP
Description

3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard


Product Overview

This 3.5-inch vertical IPS TFT LCD module features a 320×480 resolution and a portrait display layout, delivering clear images and vivid color performance. With MCU and SPI interface support, the module is suitable for automotive dashboards, control panels, and embedded display systems requiring compact vertical-screen solutions. Its IPS technology provides stable color consistency and wide viewing angles for improved visibility.


Performance & Reliability

  • 320×480 resolution ensures sharp and detailed image display
  • IPS panel technology provides wide viewing angles and accurate color reproduction
  • Contrast ratio up to 1000:1(Typ) for enhanced display clarity
  • Operating temperature range of -30°C to +85°C supports typical automotive environments
  • Stable signal transmission helps maintain consistent display performance


Display Features & Visibility

  • Vertical screen design is suitable for compact dashboard layouts and modern UI interfaces
  • Brightness options up to 850 cd/m²(Typ) improve readability under strong ambient light
  • Normally Black display mode enhances visual depth and display contrast
  • Lightweight module structure supports efficient integration into embedded automotive systems


Automotive Applications & Advantages

  • Suitable for automotive instrument clusters and dashboard control systems
  • Can be used in vehicle multimedia displays and smart control interfaces
  • Compact outline size allows flexible installation in limited spaces
  • Designed for stable operation in professional automotive display applications


The module also offers low power consumption and maintains stable performance during continuous operation. Its compact IPS display structure makes it suitable for various automotive and industrial embedded systems requiring reliable portrait-screen display solutions.


Product Specifications

Number Of Pixels

320*480pixels

Active Area

48.96*73.44mm

Module Outline

54.66*83.54*5.05mm

Aspect Ratio

3:2

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

1000(Typ)

NTSC

70%Typ

LCM Brightness

500 cd/m²(Typ) 850 cd/m²(Typ)

Interface

MCU/SPI

Operating Temperature

-30~+80℃

Storage Temperature

-30~+85℃

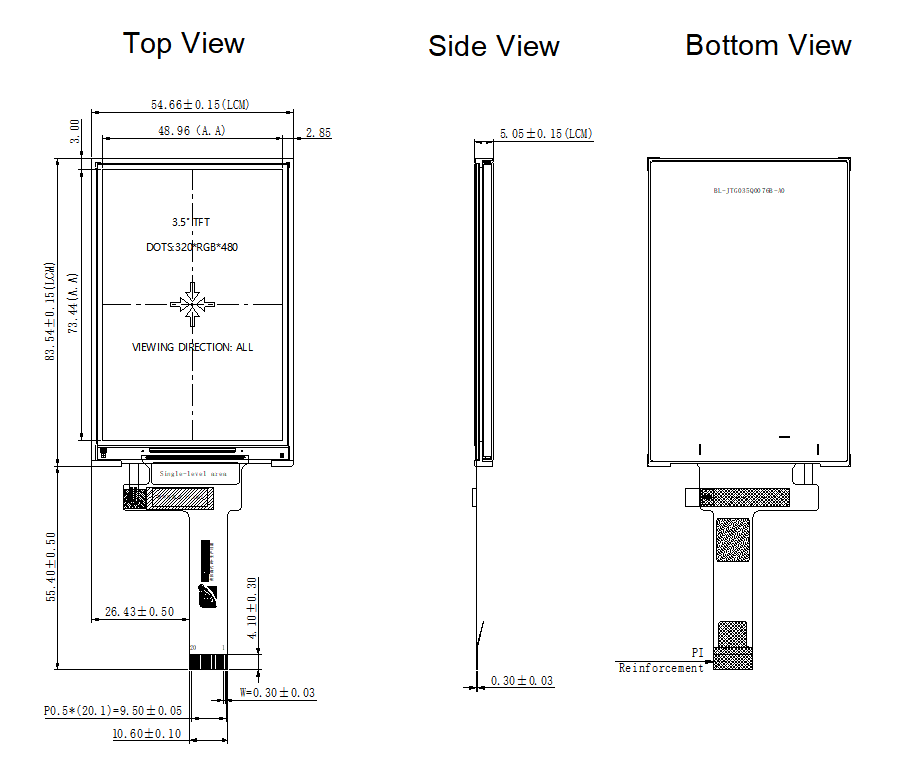

3.5 Inch Vertical IPS TFT LCD Display Drawing

3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard


3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard
