6.2 Inch TFT LCD Module For Car Dashboard 1024x600 LVDS High Brightness
6.2 Inch TFT LCD Module For Car Dashboard 1024x600 LVDS High Brightness
6.2 Inch TFT LCD Module For Car Dashboard 1024x600 LVDS High Brightness
6.2 Inch TFT LCD Module For Car Dashboard 1024x600 LVDS High Brightness
Specifications
Delivery Time :
1-5 weeks
Touch Screen :
CTP
Interface Definition :
LVDS/RGB/MIPI
Packaging Details :
Standard Exportation Package
Luminance :
500 cd/m²(Typ) 700 cd/m²(Typ)
Model Number :
JT-6.2IPSAUTOWS
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Supply Ability :
2000K Pcs Per Month
Certification :
ISO9001 / ISO14000
CTP Structure :
GG
MOQ :
5pcs
Key Words :
6.2 Inch TFT LCD
Price :
1-20
Brand Name :
Jingtai
Place of Origin :
Shenzhen/China
Viewing Angle :
80/80/80/80
CTP Interface :
12C
Resolution :
1024*600
Description

6.2 Inch TFT LCD Module for Car Dashboard 1024x600 LVDS High Brightness


Product Overview

The 6.2 inch TFT LCD module features 1024×600 resolution, high brightness performance, and LVDS/RGB/MIPI interface support. Designed for automotive dashboard and instrument cluster applications, the display delivers stable image quality, wide viewing angles, and reliable operation in harsh environments.


Characteristics

  • 1024×600 high-resolution TFT LCD display with clear and vivid image performance
  • High brightness technology for excellent visibility under sunlight environments
  • Supports LVDS, RGB, and MIPI interfaces for flexible hardware integration
  • Wide viewing angle design ensures consistent display quality from different directions
  • Normally black display mode provides improved contrast and deeper color performance
  • Industrial-grade operating temperature support from -30°C to +85°C


Advantage

  • High brightness performance ensures clear and stable visibility in automotive and outdoor lighting environments
  • Supports LVDS, RGB, and MIPI interfaces for easier integration with different automotive systems and embedded platforms
  • Wide viewing angle and high contrast ratio provide improved image clarity and better visual experience for drivers and users
  • Industrial-grade design supports reliable operation under harsh temperature and working conditions
  • Compact module structure allows flexible installation in dashboard displays, instrument clusters, and control systems
  • Stable display performance helps improve the reliability and service life of automotive and industrial equipment


Product Specifications

Number Of Pixels

1024*600pixels

Active Area

77.23*137.47mm

Module Outline

88.3*155.3*4.58mm

Aspect Ratio

16:9

Display Model

Normally Black

Viewing Angle(CR>10)

80/80/80/80

Contrast Ratio

1000(Typ)

NTSC

60%Typ

LCM Brightness

500 cd/m²(Typ) 700 cd/m²(Typ)

Interface

LVDS/RGB/MIPI

Operating Temperature

-30~+80℃

Storage Temperature

-30~+85℃


Application

  • Suitable for car dashboard displays and vehicle instrument cluster systems
  • Widely used in automotive center control and GPS navigation devices
  • Can be integrated into rearview monitoring and in-vehicle display equipment
  • Applicable for industrial control systems and embedded display devices
  • Suitable for portable electronic equipment and handheld terminal products
  • Used in medical display equipment and various testing instrument applications

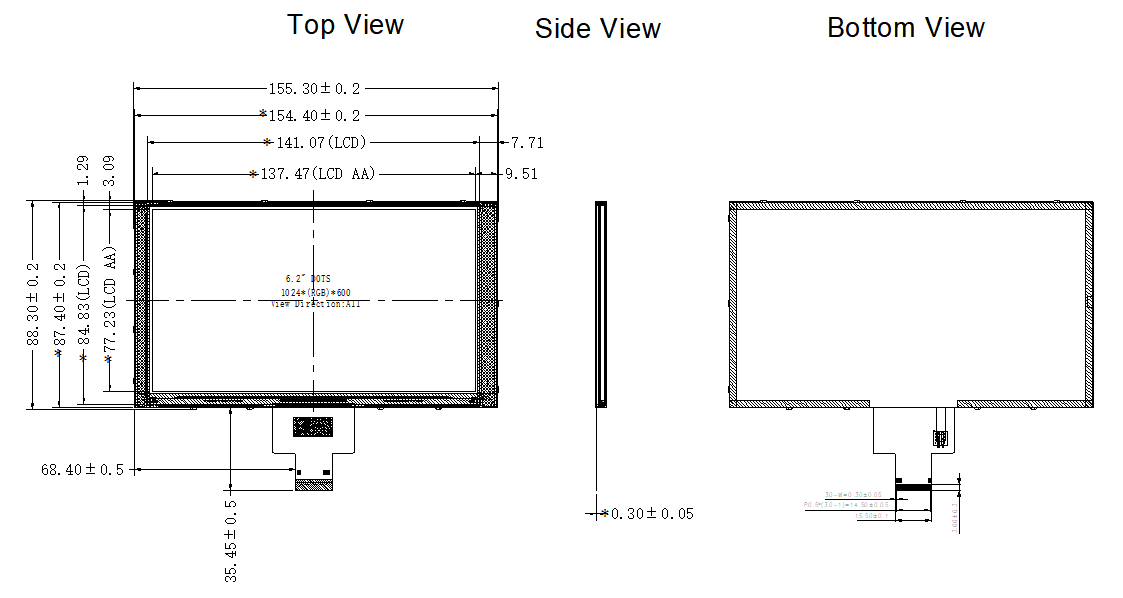

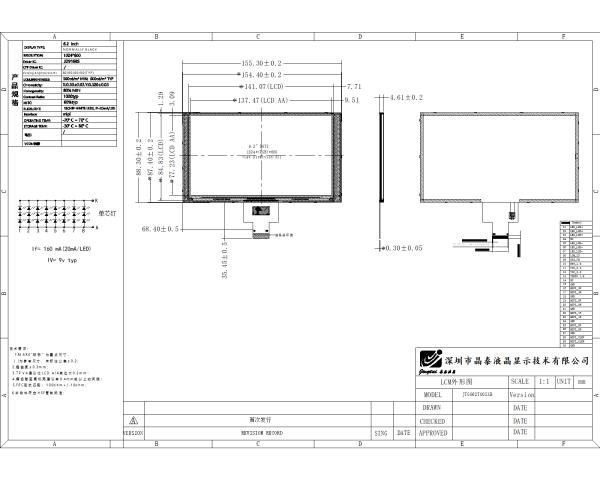

6.2 Inch TFT LCD Module Drawing

6.2 Inch TFT LCD Module For Car Dashboard 1024x600 LVDS High Brightness



6.2 Inch TFT LCD Module For Car Dashboard 1024x600 LVDS High Brightness 6.2 Inch TFT LCD Module For Car Dashboard 1024x600 LVDS High Brightness
