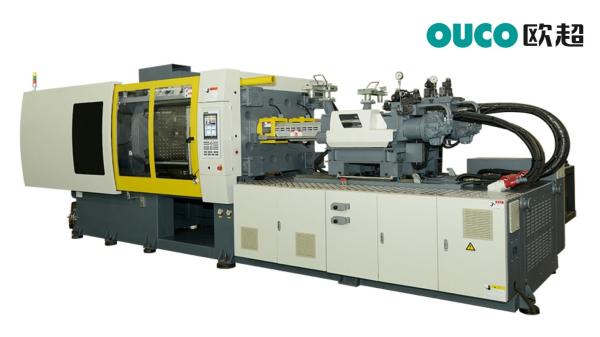

Economical Plastic Injection Moulding Machines 350 Ton Injection Molding Machine
Economical Plastic Injection Moulding Machines 350 Ton Injection Molding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-HS-530T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
OUCO-350T Injection Molding Machine Saves You In Time, Material And Price In All Aspects
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

OUCO-350T Injection Molding Machine Saves You In Time, Material And Price In All Aspects

The HS-350T is a very economical model

Our outflip crankshaft provides longer opening strokes with the same clamping force.

We can make a fruit basket in 16 seconds, this can save you a lot of time.

100% clamping force can reduce the product's spillover, this can save 2%-5% material.

Product Advantages

Hydraulic systems supplied by well-known brands

Specialized oil circuit design and manufacturing

Provide open die ejector synchronization function

Excellence clamping structure
100% clamping force use
Fast ,more 10% output
Save 2-5% material

Parameters

MODEL HS-530T
CLAMPING UNIT clamping force (kN) 3500
Tie bar distance W×L (mm) 680*680
Max.Daylight(mm) 800
Max. mold thickness (mm) 680
Min. mold thickness(mm) 210
Platen Dimensions W×L (mm) 680*680
Ejector Stroke(mm) 190
Ejector Force(Kn) 62
Ejector Quantily 1+12
Injection Unit Screw Diameter(mm) 85
Screw L/D ratio 22
Theoretical injection volume (cm3) 1985
Shot Weight (PS) g 1886
Injection Pressure(MPa) 135
Injection Speed (g/s) 1886
Injection Rate (cm3/s) 647
Screw Speed (rpm) 0-200
Other Motor Power (Kw) 63
pump capacity(ml/r) 163
Heater Power (Kw) 27
Machine Weight (Ton) 10.5
Machine size L×W×H (m*m*m) 7.7*1.8*1.8
