Specifications
Brand Name :
OUCO
Model Number :
OUCO-1000T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Good Price Crate and Painting Bucket Injection Molding Machine
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

Good Price Crate and Painting Bucket Injection Molding Machine

Updated Function:


1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. For example crate (less than 2kg) cycle time 20s,
spray paint barrel (780-800g) cycle time 20S.


2.Special designed screw and barrel structure for faster plasticization and shorter loading cycle.
Optional bimetallic screw and barrel to be compatible with the recycled material of the box.


3.Optional automation equipment is available to improve production efficiency.

Parameters

Model 1000T 1400T 1850T
Screw Specifications A B C A B C A B C
Screwdi ameter mm 100 100 120 110 120 130 125 135 145
Screw L/Dratio 22 22 22 22 22 22 22 22 22
Theoretical injection volume cm3 4329 4329 6104 5177 6161 7230 8034 9371 10811
Shot weight (PS) g 3900 3900 5616 4763 5668 6652 7391 8621 9946
injection rate(Ps) g/S 920 920 1325 1651 1384 1628 1275 1488 1717
Injection pressure MPa 204 204 142 197 165 141 197 169 146
Inject on stroke mm 540 545 655
Max. injection speed mm/s 137 130 130
Screw speed r/min 0-180 0-180 0-160
Sys. Pressure MPa 16 16 16
Pump Motor(Min-Max) kW 151 178 210
Displacement ml/r 160+125+125 160+160+160 160+160+125 + 125
number of Motors PC 3 3 4
Heater power kW 61 68 89
Number oftemp. control zones 6+1 7+1
Clamping force kN 10000 14000 18500
Opening stroke mm 1700 1900 2300
Tie bar distance W×L mm*mm 1210x1060 1460x1320 1620x1460
Min. mold thickness mm 500 700 750
Max. mold thickness mm 1200 1400 1600
Ejector stroke mm 300 350 400
Ejector force forward kN 196 251 332
Number of ejector bar PC 1+16 1+28 1+28
Oil tank capacity L 1300 1530 2210
Machine dimensions(LxWxH) m*m*m 10.7x2.4x2.8 14.8x3.6x33 15x3.2x3.5
Machine weight Ton 44 70 100

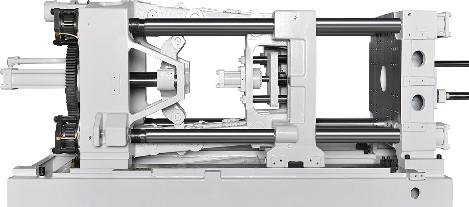

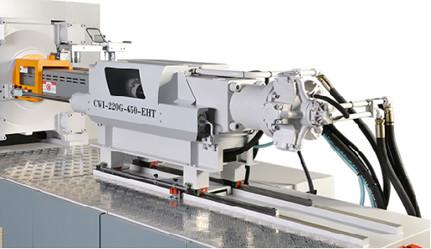

Detail Pictures
