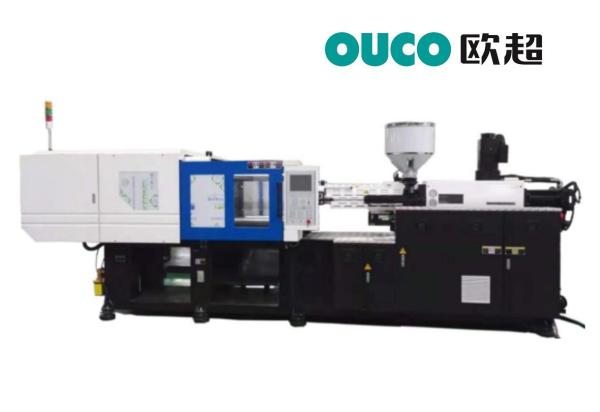

630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
630 T Injection Making Machine SGS Painting Bucket Moulding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-630T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
630 T Injection Making Machine for Crate and Painting Bucket
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

630 T Injection Making Machine for Crate and Painting Bucket

Product Details

1. Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s;Spray paint bucket (780-800g) cycle time 20s.

2. Specially designed screw and barrel structure for faster plasticization and shorter loading cycle.

Optional bimetallic screw and barrel to be compatible with the recycled material of the box.

3. Optional automation equipment is available to improve production efficiency.

Product Parameters

TECHNICAL PARAMETER TABLE
INJECTION UNIT SCREW DIAMETER mm 105
SCREW L/D RATIO L/D 23
INJECTION CAPACITY IN THEORY cm3 4700
INJECTION WEIGHT(PS) g 2820
INJECTION PRESSURE MPa 166
INJECTION RATE g/s 750
PLASTICIZING CAPACITY g/s 130
SCREW SPEED rpm 200
CLAMPING UNIT CLAMPING FORCE KN 6300
MOVING MOULD-PLATE STROKE mm 870
MAX. MOULD HEIGHT mm 990
MIN. MOULD HEIGHT mm 350
SPACE BWTWEEN TIE-BARS (W×H) mm 900x850
HYDRAULIC EJECTOR FORCE mm 200
HYDRAULIC EJECTOR STROKE KN 260
OTHERS PUMP PRESSURE MPa 17.5
MOTOR /DRIVING POWER KW 45+45+22
HEATING CAPACITY KW 50
MACHINE DIMENSION (L×W×H) m 10.5*2. 4*3.31
MACHINE WEIGHT t 31
OIL TANK CAPACITY L 1315

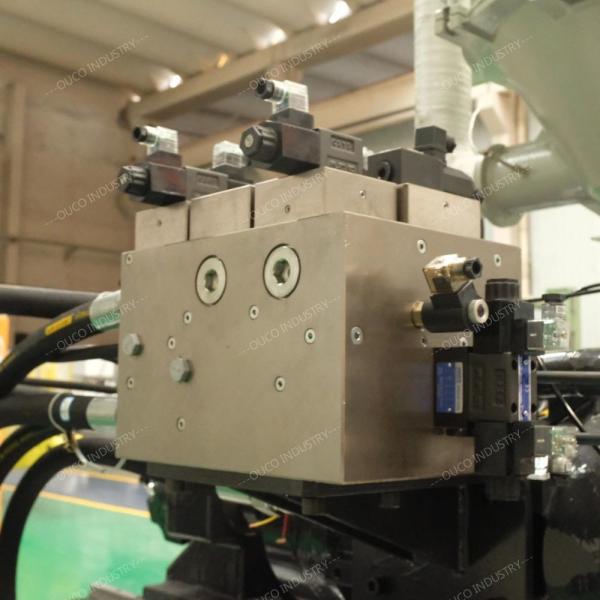

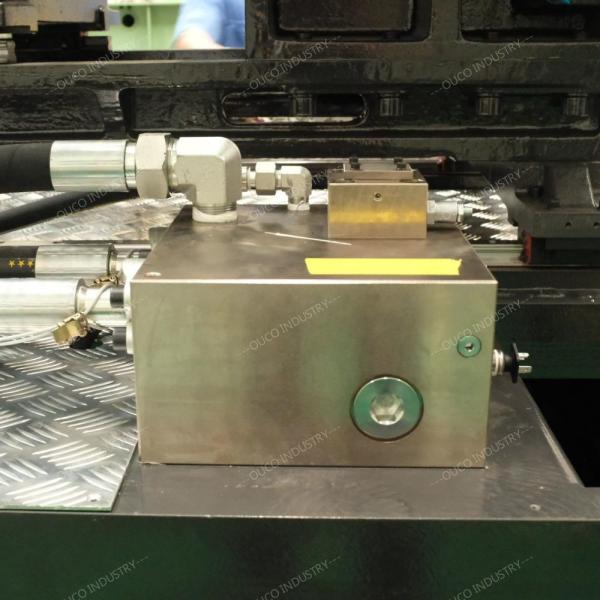

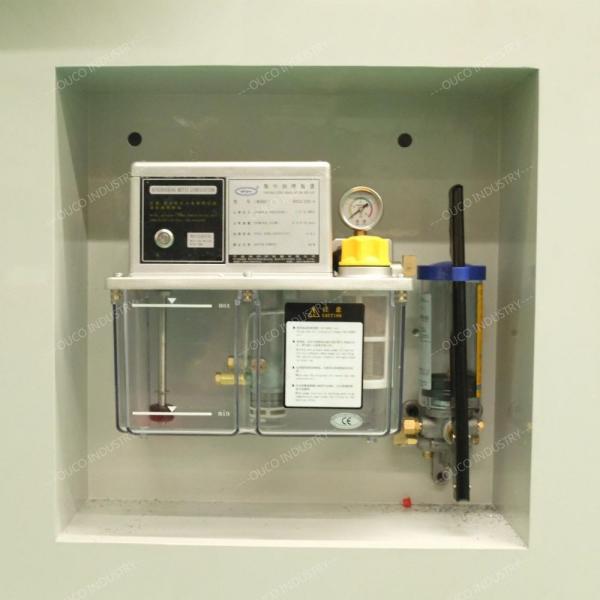

Detail Pictures
