Safe Performance Plastic Injection Moulding Machines Comprehensive Protection
Safe Performance Plastic Injection Moulding Machines Comprehensive Protection
Specifications
Brand Name :
OUCO
Model Number :
OUCO-HS-600T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Deep Cavity Injection Molding Machine With Safe Performance And Comprehensive Protection Measures
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

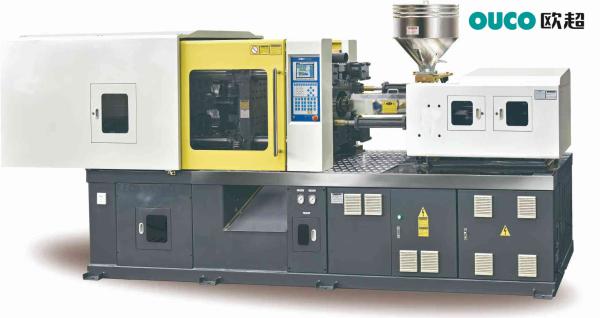

Deep Cavity Injection Molding Machine With Safe Performance And Comprehensive Protection Measures

The fully enclosed slide door could effectively prevent forigen matter entre the clamping unit, when the injection molding machine is in motion, only the door is opened and the machine will stop immediately to protect the operator's safety. Fully automatic lubrication module covers the whole key parts of the injection molding machine, it can make the normal life of the parts, slow down the aging, and can operate more safely.

Parameters

Model 600T
Screw Specifications A B C
Screwdi ameter mm 75 85 90
Screw L/Dratio 22 22 22
Theoretical injection volume cm3 1788 2297 2575
Shot weight (PS) g 1645 2113 2369
injection rate(Ps) g/S G13 788 884
Injection pressure MPa 204 159 142
Inject on stroke mm 405
Max. injection speed mm/s 157
Screw speed r/min 0-200
Sys. Pressure MPa 16
Pump Motor(Min-Max) kW 101
Displacement ml/r 160+125
number of Motors PC 2
Heater power kW 47
Number oftemp. control zones 5+1
Clamping force kN 6000
Opening stroke mm 1150
Tie bar distance W×L mm*mm 960x860
Min. mold thickness mm 350
Max. mold thickness mm 920
Ejector stroke mm 210
Ejector force forward kN 113
Number of ejector bar PC 1+12
Oil tank capacity L 940
Machine dimensions(LxWxH) m*m*m 9.3x2.1x2.3
Machine weight Ton 23
