Specifications
Brand Name :
OUCO
Model Number :
OUCO-700T/800T/1000T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Discount High-Speed Plastic Injection Molding Machine For Sale
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

Discount High-Speed Plastic Injection Molding Machine For Sale

High-Quality Functions

The series is specially designed for products with short molding cycle and high requirements for high-speed

injection molding based on many years of experiments and research, and has outstanding performance in terms of motion characteristics,

machine accuracy, and service life. It is widely used in packaging, medical and 3C electronic products.

Product Parameters

Model 900T 1000T 1400T
Screw Specifications A B C A B C A B C
Screwdi ameter mm 90 100 110 100 100 120 110 120 130
Screw L/Dratio 22 22 22 22 22 22 22 22 22
Theoretical injection volume cm3 3147 3886 4702 4329 4329 6104 5177 6161 7230
Shot weight (PS) g 2896 3575 4326 3900 3900 5616 4763 5668 6652
injection rate(Ps) g/S 975 1204 1457 920 920 1325 1651 1384 1628
Injection pressure MPa 214 173 143 204 204 142 197 165 141
Inject on stroke mm 495 540 545
Max. injection speed mm/s 146 137 130
Screw speed r/min 0-180 0-180 0-180
Sys. Pressure MPa 16 16 16
Pump Motor(Min-Max) kW 141 151 178
Displacement ml/r 125+125+125 160+125+125 160+160+160
number of Motors PC 3 3 3
Heater power kW 59 61 68
Number oftemp. control zones 5+1 6+1
Clamping force kN 9000 10000 14000
Opening stroke mm 1500 1700 1900
Tie bar distance W×L mm*mm 1120x1030 1210x1060 1460x1320
Min. mold thickness mm 450 500 700
Max. mold thickness mm 1150 1200 1400
Ejector stroke mm 270 300 350
Ejector force forward kN 152 196 251
Number of ejector bar PC 1+16 1+16 1+28
Oil tank capacity L 1190 1300 1530
Machine dimensions(LxWxH) m*m*m 10.2x2.2x2.5 10.7x2.4x2.8 14.8x3.6x33
Machine weight Ton 39 44 70

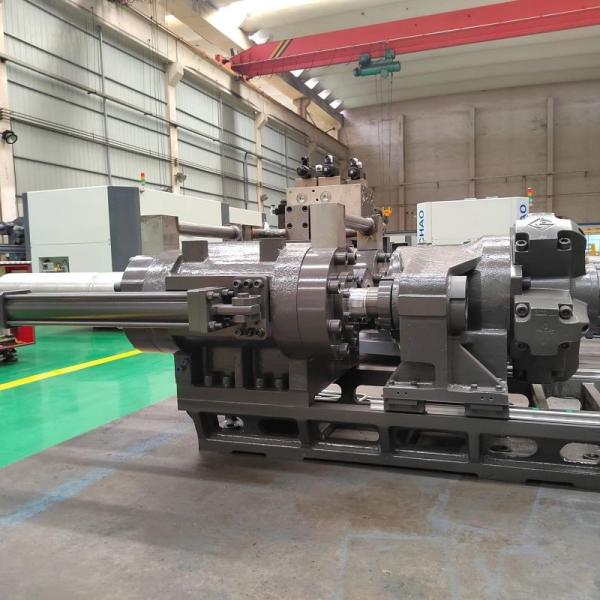

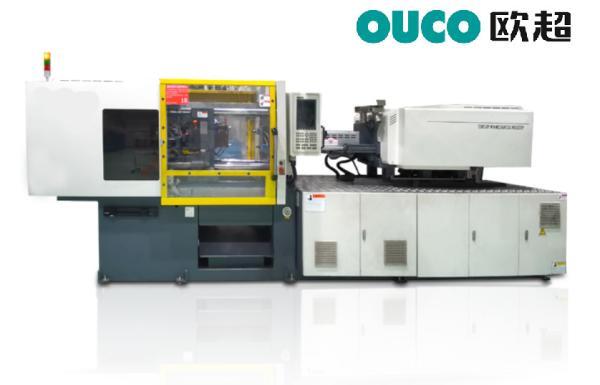

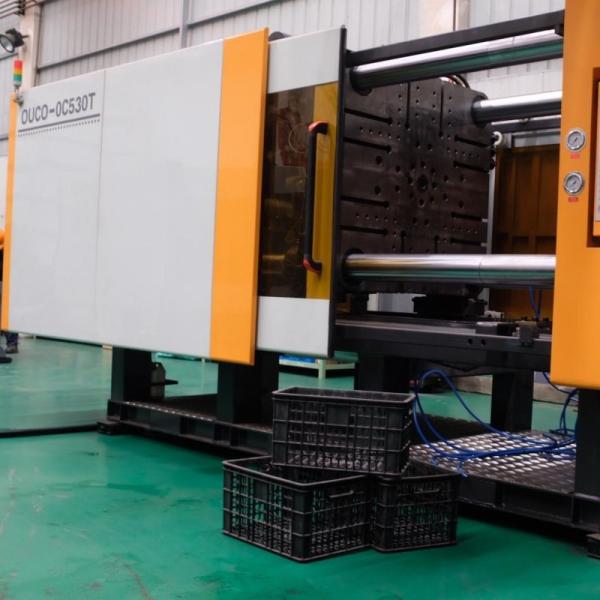

Detail Pictures
