Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI-150GB
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Fully Automatic Injection Moulding Plastic Machine, Saves Energy To the Extreme CWI-150GB
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

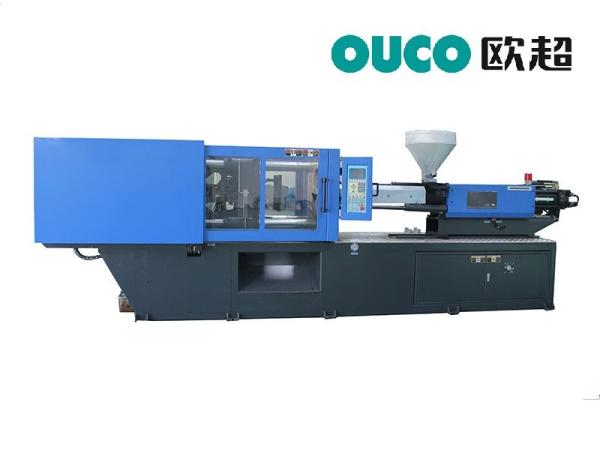

Fully Automatic Injection Moulding Plastic Machine, Saves Energy To the Extreme CWI-150GB

OUCO Plastic Machinery strictly follows the ISO9001:2005 quality control quality management system, adopts first-class production and manufacturing technology, and uses scientific management concepts to lay a solid foundation for the sustainable development of the enterprise.

Product Advantages

The assembly of the injection molding machine greatly affects the stability and service life of the equipment. OUCO Plastic Machinery strictly measures the concentricity and balance of the equipment in the assembly to ensure that the parallelism of the template reaches 0.05mm to improve the performance of the equipment.

OUCO's powerful service team, 24 hours a day.

Parameters

MODEL CWI-150GB
CLAMPING UNIT clamping force (kN) 1500
Tie bar distance W×L (mm) 470*470
Max.Daylight(mm) 450
Max. mold thickness (mm) 520
Min. mold thickness(mm) 170
Platen Dimensions W×L (mm) 680*680
Ejector Stroke(mm) 140
Ejector Force(Kn) 53
Ejector Quantily 5
Injection unit 420D 650D
Injection Unit Screw Diameter(mm) 35 40 40 45
Screw L/D ratio 24 21 23.6 21
Theoretical injection volume (cm3) 163 214 251 318
Shot Weight (PS) g 150 196 231 292
Injection Pressure(MPa) 256 196 240 190
Injection Speed (mm/s) 126 100
Injection Rate (cm3/s) 116 151 138 175
Screw Speed (rpm) 300 220
Other Motor Power (Kw) 20
pump capacity(L/min) 110
Heater Power (Kw) 8.91 10.9
Machine Weight (kg) 5.2
Machine size L×W×H (mm) 5095x1500x1745

Detail Pictures
Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding

Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding

Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding

Save Energy Fully Automatic Injection Moulding Machine Plastic Injection MouldingSave Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding

Company Profile

Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding

Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding

Save Energy Fully Automatic Injection Moulding Machine Plastic Injection Moulding
