IML 20l 30l Bucket High Speed Injection Molding Machine Hybrid Injection Molding
IML 20l 30l Bucket High Speed Injection Molding Machine Hybrid Injection Molding
IML 20l 30l Bucket High Speed Injection Molding Machine Hybrid Injection Molding
IML 20l 30l Bucket High Speed Injection Molding Machine Hybrid Injection Molding
Specifications
Brand Name :
OUCO
Model Number :
OUCO- 450HE
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2500 Set/Sets per Year
Delivery Time :
35 working days
Price :
Negotiable
Packaging Details :
Shipping Container
Product :
IML 20l 30l Bucket Hybrid High-speed Injection Molding Machine
Ejector Stroke :
200mm
Injection Weight (g) :
899
min mould height :
350
Key Selling Points :
High Productivity
Screw diameter :
70mm
After-sales Service Provided :
Video technical support
Description

IML 20l 30l Bucket Hybrid High-speed Injection Molding Machine
1. New five-point diagonal joint design with large release stroke and space for four rows.
2. High performance alloy steel tie rods with strong system and uniform force.
3. Reinforced scraper design to ensure high pressure injection without deformation.
4. Two cylinders for rapid injection. Each injection nozzle is pressed onto the corresponding injection port to ensure that the silicone does not leak.
5. High efficiency high flow variable pump to reduce electricity consumption.
6. The main machine adopts advanced microcomputer control system with large screen Chinese display and imported famous brand touch screen, and the auxiliary machine adopts PLC programmable control system.
7. Fault self-diagnosis and the latest automatic alarm setting function.
8. Suitable for the production of ordinary silicone products and fully automatic demoulded silicone products. This includes baby products, medical products and diving products.

Specification

ITEMS Unit LS450HE

INJECTION UNIT

 Screw Diameter mm 70/ 80/ 90
Screw L/D Ratio L/D 20
Shot Volume(Theoretical) cm³ 1323/ 1608/ 2036
Shot Weight g 899/ 1174/ 1486
Injection Rate cm³/s 1924/ 2513/ 3181
Injection Speed mm/s 500
Injection Pressure bar 2306/ 1766/ 1395
Plasticising rate(ps) g/s 105/ 129/ 155
CLAMPING UNIT Clamping Force(Theoretical) KN 4500
Open Stroke mm 1000
space Between Tie-bars mm 730*730
Max.mould Height mm 850
Min.mould Height mm 350
Ejector Stroke mm 200
Ejector Force KN 150
OTHERS Oil Tank Cubage L 900
Servo Motor Power KW 127
Heating Power KW 29/ 37.2/ 42.9
Machine Dimensions(l*w*h) M 7.0*2.3*2.3
Machine Weight(Approximate) T 21

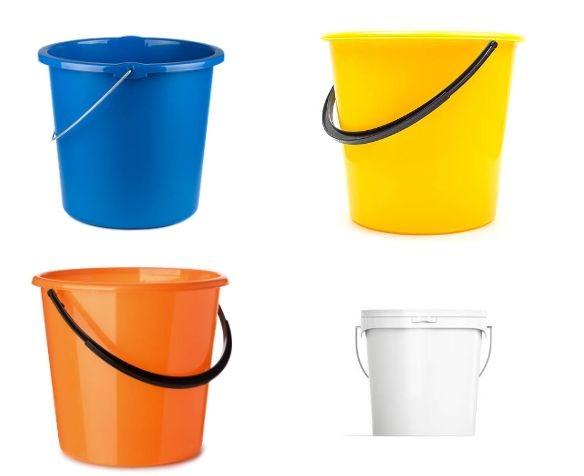

Product Pictures
