Bucket Injection Molding Machine Plastic Container Moulding Machine
Bucket Injection Molding Machine Plastic Container Moulding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-500T
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2500 Set/Sets per Year
Delivery Time :
35 work days
Price :
Negotiable
Packaging Details :
shipping container
Style :
Horizontal
Distance between Tie Bars(Width) :
580mm
Plasticizing Capacity :
35(g/s)
Ejector Stroke :
140mm
Injection Rate :
674(g/s)
Core Components :
Pump
Description

High Quality Bucket Plastic Container Plastic Injection Molding Machinery

Techmation Smart controller, latest Servo Motor and Drive.
Nano far infrared heater, more precise temperature control.
Multi-level ejection, Smooth and fast ejection action.
Easy installation of jack, push out the whole guide.
Can realize pulse ejection.

Product parameters

Model 500T
Screw Specifications A B C
Screwdi ameter mm 70 75 85
Screw L/Dratio 22 22 22
Theoretical injection volume cm3 1481 1700 2184
Shot weight (PS) g 1377 1581 2031
injection rate(Ps) g/S G03 693 890
Injection pressure MPa 209 182 142
Inject on stroke mm 385
Max. injection speed mm/s 166
Screw speed r/min 0-200
Sys. Pressure MPa 16
Pump Motor(Min-Max) kW 94
Displacement ml/r 125+125
number of Motors PC 2
Heater power kW 41
Number oftemp. control zones 5+1
Clamping force kN 5000
Opening stroke mm 1000
Tie bar distance W×L mm*mm 860x760
Min. mold thickness mm 300
Max. mold thickness mm 800
Ejector stroke mm 210
Ejector force forward kN 110
Number of ejector bar PC 1+12
Oil tank capacity L 850
Machine dimensions(LxWxH) m*m*m 87x2.0x2.1
Machine weight Ton 19

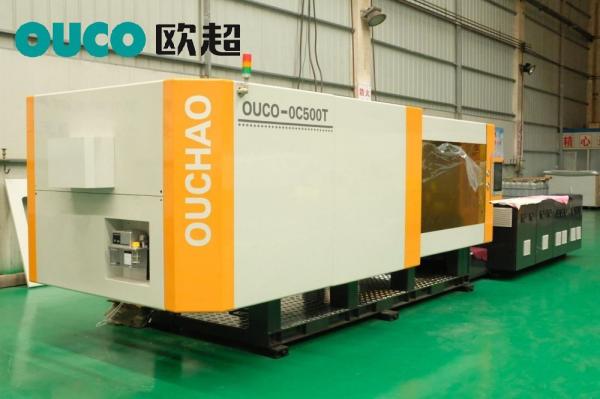

Product Picture
