Bucket Paint Automatic Injection Moulding Machine Energy Saving
Bucket Paint Automatic Injection Moulding Machine Energy Saving
Bucket Paint Automatic Injection Moulding Machine Energy Saving
Bucket Paint Automatic Injection Moulding Machine Energy Saving
Specifications
Brand Name :
OUCO
Model Number :
OUCO- 580/910G
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2500 Set/Sets per Year
Delivery Time :
35 work days
Fuel tank capacity :
880
Distance between Tie Bars(Width) :
580mm
Core Components :
Motor
Automatic :
yes
Injection Rate :
1566(g/s)
Screw diameter :
70mm
Description

China Energy Saving Bucket Paint Making Machine, Automatic Plastic Injection Molding Machine

A fully automatic injection moulding machine with higher efficiency and reliable operation. The injection table support is made of high precision rubberized fabric guide rails, with low coefficient of friction, low and uniform injection and plasticising resistance, faster injection speed and suitable for high speed precision injection moulding.

Precision control, Techmation advanced control interface High-speed microprocessor ergonomic layout.
Data and image monitoring, self-diagnosis and fault detection capabilities.

Product Parameters

clamping unit

LS580/910G

clamping force

5800

locking force

6380

max.mould opening stroke

900

min.mould height

330

max.mould height

1000

max.daylight

1900

mould platen(h*v)

1310*1220

ejection stroke

180

ejection force

130

injection unit

2600

3800

screw diameter

65

70

75

75

80

90

screw geometry

standard

l/d ratio

22

22

22

22

22

22

max.shot weight(ps)

1163

1349

1548

1809

2058

2605

max.screw stroke

385

385

385

450

450

450

max.nozzle dipping depth(svo)

50

50

nozzle sealing force

110

110

number of heating zones

5

6

hopper capacity

110

110

>capacity with electr drive

272

274

278

298

301

308

net weight(without oil)

26300

26900

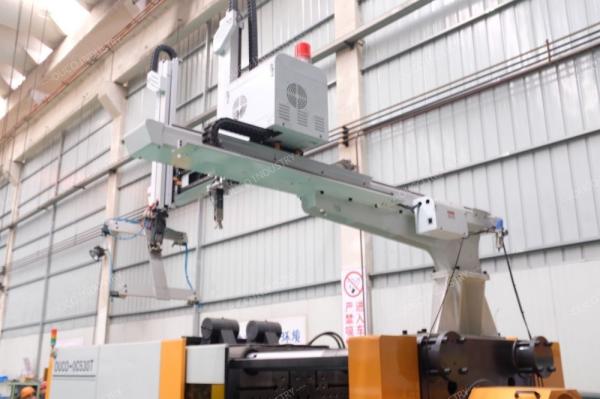

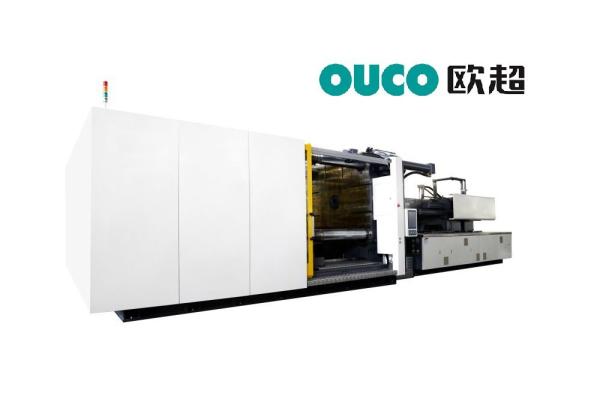

Product Pictures

Bucket Paint Automatic Injection Moulding Machine Energy Saving

Bucket Paint Automatic Injection Moulding Machine Energy Saving

Company Profile
Bucket Paint Automatic Injection Moulding Machine Energy Saving
Bucket Paint Automatic Injection Moulding Machine Energy Saving
Bucket Paint Automatic Injection Moulding Machine Energy Saving
