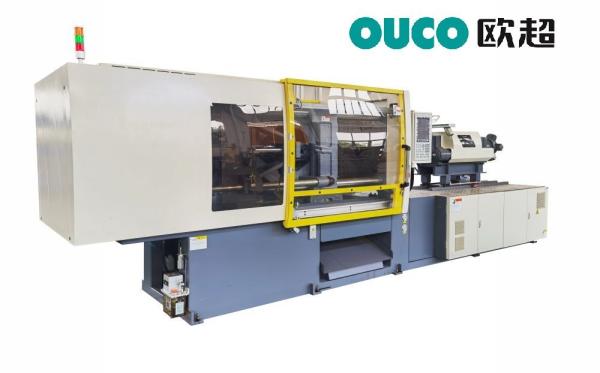

Cosmetics Tubes Bottle Injection Moulding Machine Packing Box Plastic Injection
Cosmetics Tubes Bottle Injection Moulding Machine Packing Box Plastic Injection
Specifications
Brand Name :
OUCO
Model Number :
OUCO- 580/910G
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2500 Set/Sets per Year
Delivery Time :
35 work days
Screw L/D Ratio :
22
Ejector Stroke :
230mm
Core Components :
Motor
Weight :
39000kg
Injection Rate :
1566(g/s)
Screw diameter :
70mm
Description

Cosmetics Tubes Bottle Packing Boxes, Plastic Molding Machine, Injection Mold Machinery

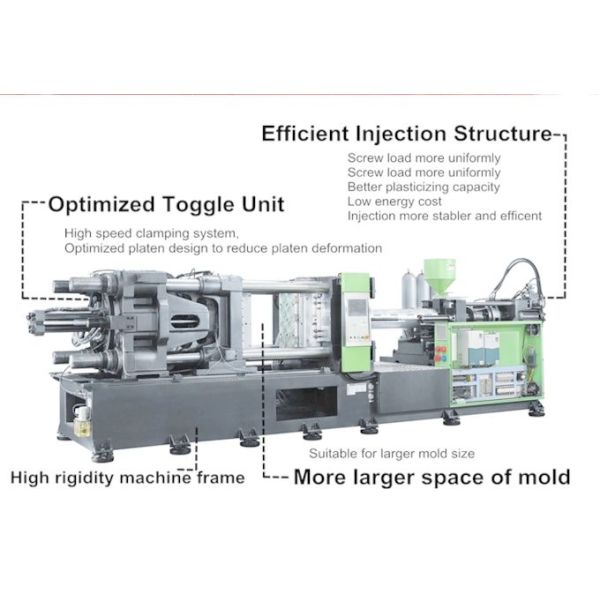

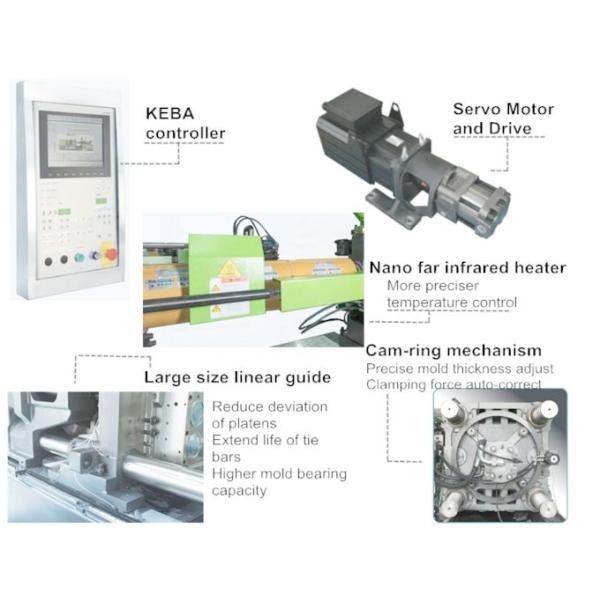

Techmation controller, brand new third-generation servo drive system, strong power and quick response.
Thicker and more rigid mold plate for even film compression and smoother running The use of cast steel parts ensures a longer service life.
Based on the optimized design of the injection mechanism to improve the injection rigidity, combined with the optimized design of the barrel assembly.
Use wire gauges instead of hard rails to reduce frictional resistance during injection and improve injection accuracy and stability

Product Models

clamping unit
LS680 /1000G
clamping force
6800
locking force
7480
max.mould opening stroke
1100
min.mould height
330
max.mould height
1000
max.daylight
2000
mould platen(h*v)
1440*1280
ejection stroke
230
ejection force
150
injection unit
3800
2300
screw diameter
75
80
90
80
90
100
screw geometry
standard
l/d ratio
22
22
22
22
22
22
max.shot weight(ps)
1809
2058
2605
2264
2866
3538
max.screw stroke
450
450
450
495
495
495
max.nozzle dipping depth(svo)
50
50
nozzle sealing force
110
110
number of heating zones
6
6
hopper capacity
110
110
>capacity with electr drive
298
301
307
316
322
330
net weight(without oil)
37000
37500
