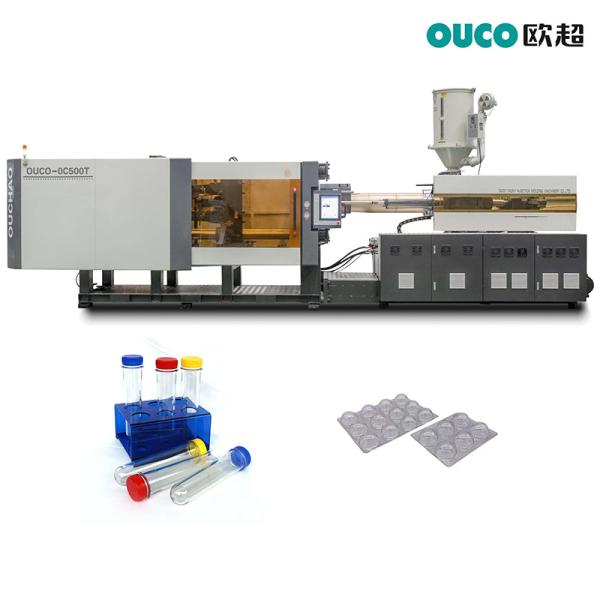

230GK Automatic Injection Moulding Machine Linear Guide Rail Low Resistance
230GK Automatic Injection Moulding Machine Linear Guide Rail Low Resistance
230GK Automatic Injection Moulding Machine Linear Guide Rail Low Resistance
230GK Automatic Injection Moulding Machine Linear Guide Rail Low Resistance
230GK Automatic Injection Moulding Machine Linear Guide Rail Low Resistance
230GK Automatic Injection Moulding Machine Linear Guide Rail Low Resistance
Specifications
Brand Name :
OUCO
Model Number :
OUCO-200T/450T
Certification :
CE, ISO9001
Place of Origin :
Wuxi, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per year
Delivery Time :
1 months
Packaging Details :
shipping container
Product Name :
CWI-230GK Low-Resistance Linear Guide Rail Plastic Automatic Moulding Machine For Sale
Plastic Processed: :
PP, PC,PVC
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Type :
Automation
Warranty: :
1 Year
Machinery Test Report: :
Provided
Selling Points :
Competitive Price
Video outgoing-inspection: :
Provided
Machine Style :
Horizontal
Condition :
New
Lead time (days) :
About 50 Days
Description

CWI-230GK Low-Resistance Linear Guide Rail Plastic Automatic Moulding Machine For Sale
Advantage of OUCO GK Servo Plastic Molding Machine

1. The brand-new sliding foot structure of the moving template increases the supporting area, which can effectively maintain the parallel accuracy of the machine template when loading the mold.

2. The newly designed reinforced formwork is especially suitable for thin-walled and high-speed molding products.

3. Adopt infrared heating device, energy saving and high efficiency.

4. Low-resistance linear guide rail, precise positioning, fast response, high repeatability of injection.

5. The second plate copper sleeve adopts graphite copper sleeve to reduce oil pollution and ensure good lubrication of the tie rod during high-speed operation.

6. The original imported pneumatic nozzle is used, which is fast in action and reliable in sealing.

Product Paraments

GK高速薄壁专用机系列
机型 CWI-230GK
合模装置 锁模力 Kn Clamping Force 2300
拉杆间距 mm Space Between Tie-bars 570×570
开模最大开距 mm Clamping Stroke 550
最大模厚 mm Mould Thickness Max 600
最小模厚 mm Mould Thickness Min 220
模板尺寸 mm Size of Platen 855×855
顶出长度 mm Ejector Stroke 170
顶出力 Kn Ejector Force 80
顶针数 Ejector Quantily 9
注射装置 射胶装置 Injection Unit 650I
螺杆直径 mm Screw Diameter 45 50
螺杆长径比 Screw L/D ratio 21 18.9
理论射胶容积 cm3 Shot Size 318 393
注射重量 (PS)g Shot Weight 292 361
oz 10.3 12.7
注塑压力 Mpa Injection Pressure 202 164
注射速度 mm/s Injection Speed 299
注塑速率 cm3/s Injection Rate 475 586
塑化能力 g/s Plasticising Capacity 6.8 8.4
螺杆最大转速 rpm Screw Speed 400
其他 油泵电机功率 Kw Motor Power 50+25
油泵排量 L/min 360
电热功率 Kw Heater Power 10.9
机器净重 ton Machine Weight 8
机器尺寸(长×宽×高) mm Machine Dimension 5800×1700×1870

Detailed Pictures

230GK Automatic Injection Moulding Machine Linear Guide Rail Low Resistance

230GK Automatic Injection Moulding Machine Linear Guide Rail Low Resistance
