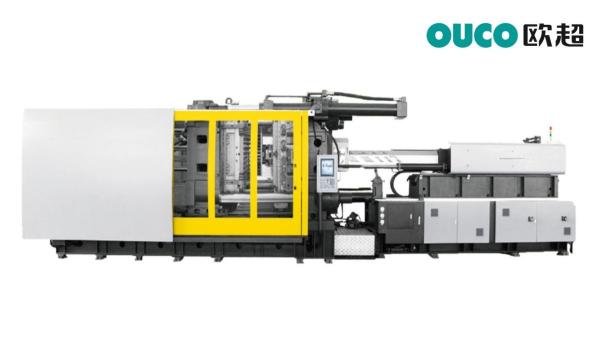

CE PET Injection Molding Machine 400 Ton Injection Molding Machine
CE PET Injection Molding Machine 400 Ton Injection Molding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-400T
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
35 work days
Description

This deep cavity clamping force 400T injection molding machine is outward turning crankshaft, it make the same clamping force injection machine have the longer opening stroke .

CE PET Injection Molding Machine 400 Ton Injection Molding Machine

Why choose outward turning crankshaft injection molding machine ?

A: For this type injection molding machine make the same clamping force injection machine have the longer opening stroke .Longer opening stroke allows equipment with the same clamping force to produce larger products, so that customers can purchase injection molding machines at lower prices

Model 300T 400T 500T
Screw Model A B C A B C A B C
Screwdi ameter mm 50 60 65 65 75 80 70 75 85
Screw L/Dratio 22 22 22 22 22 22 22 22 22
Theoretical injection volume cm3 638 918 1078 1C75 1431 1628 1481 1700 2184
Shot weight (PS) g 593 853 1002 1C11 1345 1530 1377 1581 2031
Injection rate(Ps) g/S 330 475 558 426 568 646 G03 693 890
Injection pressure MPa 286 198 169 242 182 160 209 182 142
Inject on stroke mm 325 360 385
Max. injection speed mm/s 178 156 166
Screw speed r/min 0-200 0-200 0-200
Sys. Pressure MPa 16 16 16
Pump Motor(Min-Max) kW 63 75 94
Displacement ml/r 163 100+100 125+125
number of Motors PC 1 2 2
Heater power kW 27 35 41
Number oftemp. control zones 5+1 5+1 5+1
Clamping force kN 3000 4000 5000
Opening stroke mm 800 900 1000
Tie bar distance W×L mmxmm 680x680 760x660 860x760
Min. mold thickness mm 210 300 300
Max. mold thickness mm 680 730 800
Ejector stroke mm 190 190 210
Ejector force forward kN 62 80 110
Number of ejector bar PC 1+12 1+12 1+12
Oil tank capacity L 510 680 850
Machine dimensions(LxWxH) mxmxm 7.7x1.8x1.8 8.2x1.9x1.9 87x2.0x2.1
Machine weight Ton 10.5 15 19

The injection system adopts high-precision linear guide rail control to effectively reduce mechanical friction and improve injection precision;

All our deep cavity injection molding machine are equipped with double servo motor power,it control adopts the latest confluence technology
Our company's lubrication system uses copper pipes for fixed pipes and soft copper pipes for moving parts, which can increase the service life of copper pipes.
CE PET Injection Molding Machine 400 Ton Injection Molding Machine

CE PET Injection Molding Machine 400 Ton Injection Molding Machine

CE PET Injection Molding Machine 400 Ton Injection Molding Machine
