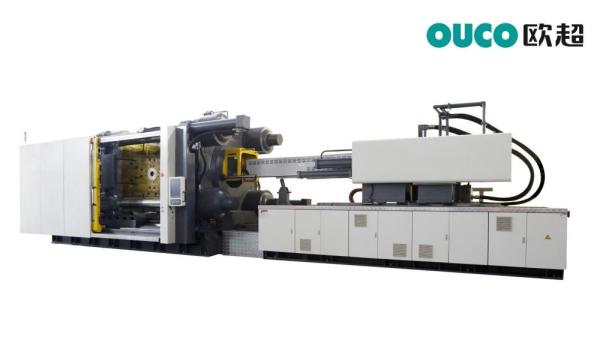

SGS Two Platen Injection Molding Machine Energy Saving Servo Injection Molding
SGS Two Platen Injection Molding Machine Energy Saving Servo Injection Molding
Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI-1350S III
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Energy Saving Servo Two-Platen Injection Molding Machine, Large Capacity
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

Energy Saving Servo Two-Platen Injection Molding Machine, Large Capacity

OUCO CWI-1350S III (18000I injection equipment) Horizontal Structure, suitable for plastic type of thermoplastic, screw type plasticizing, Hydraulic and Mechanical Clamping Way are all available, automatic control.


Product Advantages

1. All machine parts are supplied by well-known manufacturers with advanced quality control system
2. Adopting two-platen mould closing system for fast clamping speed and higher output cycle. Good material quality also ensures more durable formwork.
3. Four-cylinder direct clamping structure ensures stable high pressure and balanced clamping precise clamping force to improve mould life.
4. The automatic mould adjustment function is controlled by the computer. The data collected by the computer from sensors and analysis to ensure mould closing accuracy.
5. The injection unit adopts linear motion to ensure the stability and accuracy of the injection
6. Pressure and hydraulic flow are controlled by a highly responsive closed-loop servo system. This is fast and energy saving.
7. The hydraulic system adopts Japanese famous brand of hydraulic parts and cartridge logic
valve hydraulic circuit improves the system response speed.


Parameters

MODEL CWI-1350S III
CLAMPING UNIT clamping force (kN) 13500
Tie bar distance W×L (mm) 1420*1220
Max.Daylight(mm) 3000
Max. mold thickness (mm) 1400
Min. mold thickness(mm) 650
Platen Dimensions W×L (mm) 2100*1900
Ejector Stroke(mm) 400
Ejector Force(Kn) 341
Ejector Quantily 25
Injection unit 6600I
Injection Unit Screw Diameter(mm) 130 140 150
Screw L/D ratio 22.6 21 19.6
Theoretical injection volume (cm3) 8821 10231 11744
Shot Weight (PS) g 8027 9310 10687
Injection Pressure(MPa) 203 176 152
Injection Speed (mm/s) 74
Injection Rate (cm3/s) 835 969 1112
Screw Speed (rpm) 10-160
Other Motor Power (Kw) 89.26
pump capacity(L/min) 650
Heater Power (Kw) 50+50+50+7.5
Machine Weight (Ton) 65
Machine size L×W×H (mm) 12500x3500x2900

Detail Pictures
SGS Two Platen Injection Molding Machine Energy Saving Servo Injection Molding

SGS Two Platen Injection Molding Machine Energy Saving Servo Injection Molding

Company Profile

SGS Two Platen Injection Molding Machine Energy Saving Servo Injection Molding

SGS Two Platen Injection Molding Machine Energy Saving Servo Injection Molding

SGS Two Platen Injection Molding Machine Energy Saving Servo Injection Molding
