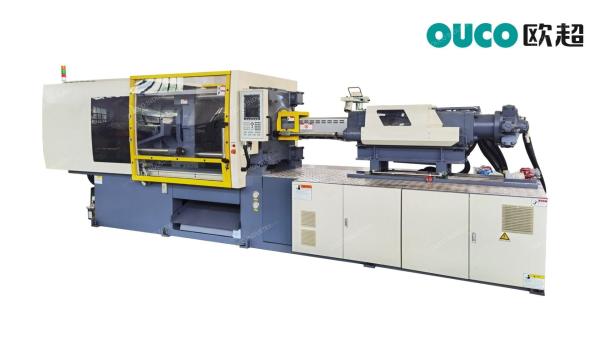

CE High Precision Injection Molding Machine 500 Ton Injection Molding Machine
CE High Precision Injection Molding Machine 500 Ton Injection Molding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-300T
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
35 work days
Product Name :
High Quality Clamping Force 500T Injection Molding Machine
Type :
Preform Injection
Clamping Force :
1600KN
Injection Weight :
260-410g
Injection Rate :
166-204cm3
Power :
50HZ
Opening Stroke :
480mm
Description

High Quality Clamping Force 500T Injection Molding Machine

Advantage Of Ouco Hs Machine Injection Molding

1. Direct pressure external curve type central locking,the formwork and mold will not deform,and 100% locking force of the mold will be transmitted;
2. Leading the whole industry of injection molding machine, the extra large mold opening stroke is designed to reduce the purchase cost for deep cavity users;
3. Compared with the traditional injection molding machine structure, it saves material,time and manpower

4. Outward turning crankshaft, it make the same clamping force injection machine have the longer opening stroke

CE High Precision Injection Molding Machine 500 Ton Injection Molding Machine

Model 300T 400T 500T
Screw Model A B C A B C A B C
Screwdi ameter mm 50 60 65 65 75 80 70 75 85
Screw L/Dratio 22 22 22 22 22 22 22 22 22
Theoretical injection volume cm3 638 918 1078 1C75 1431 1628 1481 1700 2184
Shot weight (PS) g 593 853 1002 1C11 1345 1530 1377 1581 2031
Injection rate(Ps) g/S 330 475 558 426 568 646 G03 693 890
Injection pressure MPa 286 198 169 242 182 160 209 182 142
Inject on stroke mm 325 360 385
Max. injection speed mm/s 178 156 166
Screw speed r/min 0-200 0-200 0-200
Sys. Pressure MPa 16 16 16
Pump Motor(Min-Max) kW 63 75 94
Displacement ml/r 163 100+100 125+125
number of Motors PC 1 2 2
Heater power kW 27 35 41
Number oftemp. control zones 5+1 5+1 5+1
Clamping force kN 3000 4000 5000
Opening stroke mm 800 900 1000
Tie bar distance W×L mmxmm 680x680 760x660 860x760
Min. mold thickness mm 210 300 300
Max. mold thickness mm 680 730 800
Ejector stroke mm 190 190 210
Ejector force forward kN 62 80 110
Number of ejector bar PC 1+12 1+12 1+12
Oil tank capacity L 510 680 850
Machine dimensions(LxWxH) mxmxm 7.7x1.8x1.8 8.2x1.9x1.9 87x2.0x2.1
Machine weight Ton 10.5 15 19

Taiwan Hongxun's latest 15 inch vertical screen touch-screen
computer is selected,which is high-end and beautiful;In addition to the functions of the whole machine, it supports the energy consumption management of the whole machine and the centralized management of all parameters.
