Car Bumper Two Plate Horizontal High Precision Injection Molding Machine CWI 800S III
Car Bumper Two Plate Horizontal High Precision Injection Molding Machine CWI 800S III
Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI 800S III
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Car Bumper Two-plate Horizontal Injection Molding Machine CWI 800S III
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

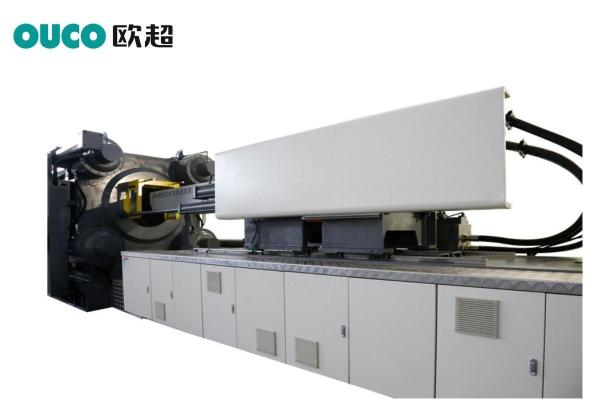

Car Bumper Two-plate Horizontal Injection Molding Machine CWI 800S III

OUCO Two-platen injection molding machine is designed for disposable barrels, chairs, containers, etc. It is with demoulding linkage which shortens the plastic parts's cycle time.
CWI 800S III with high speed, stable performance and it is energy-saving. Our customers can get higher production with the same labor and cost.


Product Advantages
1. All machine parts are supplied by well-known manufacturers with the advanced QC system
2. With the two-platen clamping system, the clamping speed is fast and improves the production cycle. The good quality of material also ensures the mold platen is more durable.
3. Four-cylinder direct clamping structure ensures high-pressure stability, clamping balance, and precise of clamping force which improves the lifetime of the mold.
4. Auto-mold adjusting function is controlled by computer. Computer collected data from transducers and analyzed. It ensures mold clamping precision.
5. Injection unit with the linear guide ensures the injection stability and precision
6. Pressure and hydraulic flow are controlled by a high response closed loop servo system. The speed is fast and energy-saving.
7. Hydraulic System adopts hydraulic parts from a Japanese famous brand and the cartridge logic valve hydraulic circuit improves the system response speed.
Parameters

MODEL CWI-800S III
CLAMPING UNIT clamping force (kN) 8000
Tie bar distance W×L (mm) 1070*970
Max.Daylight(mm) 2500
Max. mold thickness (mm) 1200
Min. mold thickness(mm) 500
Platen Dimensions W×L (mm) 1590*1490
Ejector Stroke(mm) 280
Ejector Force(Kn) 212
Ejector Quantily 25
Injection unit 6600I
Injection Unit Screw Diameter(mm) 90 100 110
Screw L/D ratio 22.9 21 19.4
Theoretical injection volume (cm3) 3052 3768 4559
Shot Weight (PS) g 2808 3467 4195
Injection Pressure(MPa) 215 176 144
Injection Speed (mm/s) 97
Injection Rate (cm3/s) 620 725 926
Screw Speed (rpm) 10-175
Other Motor Power (Kw) 46.9
pump capacity(L/min) 500
Heater Power (Kw) 50+50+7.5
Machine Weight (Ton) 35
Machine size L×W×H (mm) 9400x2600x2600

Detail Pictures
Car Bumper Two Plate Horizontal High Precision Injection Molding Machine CWI 800S III
