Specifications
Brand Name :
OUCO
Model Number :
OCM-380H
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Centre Clamped Production Washbasin 380T Injection Moulding Machine
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

Centre Clamped Production Washbasin 380T Injection Moulding Machine

OUCO injection moulding machine has become a high-quality equipment trusted by many manufacturers due to its excellent performance and efficient production capacity. The stable performance of this injection moulding machine enables it to operate stably under high load for a long period of time without frequent maintenance and replacement of parts, which greatly reduces production costs and downtime. Its high production efficiency is also outstanding. It adopts advanced injection moulding technology, which can quickly complete the injection process in a short period of time and improve the production efficiency. At the same time, thanks to its precise control system and excellent mould design, it produces stable and reliable product quality that meets customers' demand for high quality products.OUCO injection moulding machine not only has excellent performance performance, but also possesses high efficiency production capacity, which makes it an ideal choice for manufacturers to improve production efficiency and reduce costs. Whether for large-scale production or small-scale production projects, OUCO injection moulding machines are able to bring out their excellent performance, helping enterprises to achieve higher economic benefits and market competitiveness.

Product Advantages

1.Centre clamping, stable and efficient:OUCO injection moulding machine adopts advanced centre clamping technology to ensure the stability and accuracy of the mould during the injection process. The centre clamping design makes the force on the mould uniform and effectively avoids mould deflection or deformation, thus ensuring the quality and precision of the products. At the same time, this technology can also increase the speed of mould clamping, shorten the production cycle and improve the overall production efficiency.
2. Long mould opening stroke, strong adaptability:The long mould opening stroke of OUCO injection moulding machine can easily cope with the demands of various complex moulds. Both large and small moulds can be operated smoothly and stably during the mould opening process. This feature makes OUCO injection moulding machines widely applicable to different industries and fields, and meets the individual needs of different customers.
3. Outstanding performance and durability:OUCO injection moulding machine excels in performance with powerful power system and precise control system. It can run stably for a long time and maintain excellent performance even under high load working environment. Adopting high quality materials and precise manufacturing process, the machine has a long service life and low maintenance cost.

Parameters

MODEL OCH-380T
Clamping force (kN) 3800
Space between tie bar (mm*mm) 720*680
Max. mold thickness (mm) 730
Min. mold thickness(mm) 300
Opening stroke (mm) 800
Ejector stroke(mm) 190
Ejector force forward(Kn) 62
Screw diameter(mm) 80
Screw L/D ratio 22
Theoretical injection volume (cm3) 1759
Shot weight (PS) g 1699
Injection pressure(MPa) 133
Injection speed (mm/s) 99
Injection rate (g/s) 481
Motor power (Kw) 47.5
Oil tank capacity(L) 125
Heater power (Kw) 27
Machine Weight (t) 13
Machine size L×W×H (m) 8.2*1.9*2.0

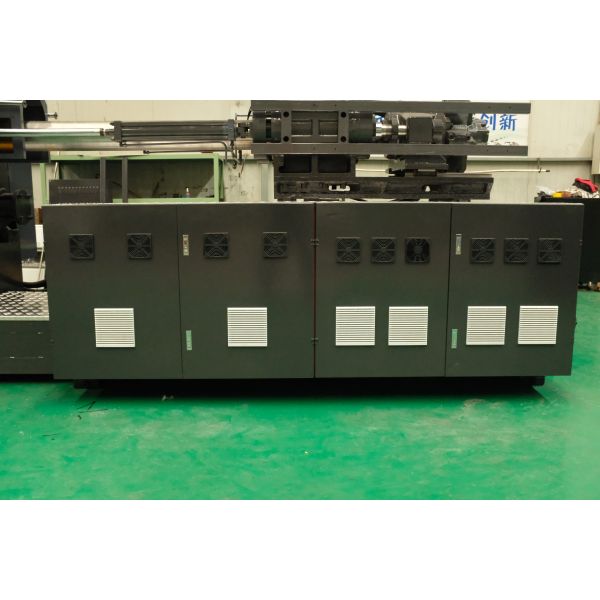

Detail Pictures
