OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
Specifications
Brand Name :
OUCO
Model Number :
OCM-800S
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
OUCO 800T Highly Responsive Injection Molding Machine Specializing In The Production Of Large Outdoor Trash Cans
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

OUCO 800T Highly Responsive Injection Molding Machine Specializing In The Production Of Large Outdoor Trash Cans

OUCO is a modernized high-tech industry with complete scientific quality management system.OUCO has more than 30 years of production experience, mainly focusing on one line of injection molding machines, starting from design, independent development, quality production and conscientious sales. With strict quality control, we continue to progress and strive for a higher level. Focusing on pre-investment and adhering to the principle of 'wanting to take first', we are dedicated to pursuing the right machine for you.
Features and advantages:
1. Plasticizing unit: anti-low temperature device, screw starts in advance, good protection of the machine, excellent performance. The connection positioning of nozzle and flange of precursor body is designed as built-in positioning, which is better and not easy to leak glue.
2. Injection unit: hydraulic safety protection, precise control of ejection dwell time, accurate position. Tail plate built-in mold clamping cylinder, clamping force is bigger.
3. Power unit: five-star motor, servo motor, using high-speed, oversized, special oil circuit design and manufacturing, low noise, stable performance, to provide you with sufficient power. Absorb pulsation and reduce noise.
4. The machine itself: sub-assembled, easy to disassemble, beautiful appearance, set aesthetic and practical in one. Adopt Schneider and other imported brands, longer service life.

Product Advantages

1. Excellent molding stability, servo-driven system, pressure, flow rate using closed-loop control, compared with the traditional injection molding machine, molding repeatability is significantly improved.
2. Significant energy saving, using as much as needed to give as much as possible, energy saving 20%-80% than the traditional technology.
3. Constant oil temperature, servo motor proportional output of hydraulic oil, to avoid excess heat generation. Hydraulic oil does not even need to be cooled to realize significant water savings.
4.High precision gear pump, provide sufficient power to bring you a better experience.

Parameters

MODEL OCM-800S
Clamping force (kN) 800
Space between tie bar (mm*mm) 1070*970
Max. mold thickness (mm) 1200
Min. mold thickness(mm) 500
Opening stroke (mm) 2500
Ejector stroke(mm) 280
Ejector force forward(Kn) 212
Screw diameter(mm) 75
Screw L/D ratio 21
Theoretical injection volume (cm3) 1590
Shot weight (PS) g 1462
Injection pressure(MPa) 178
Injection speed (mm/s) 170
Injection rate (g/s) 750
Motor power (Kw) 107.5
Oil tank capacity(L) 900
Heater power (Kw) 30.02
Machine Weight (kg) 35
Machine size L×W×H (mm) 9400*2600*2600

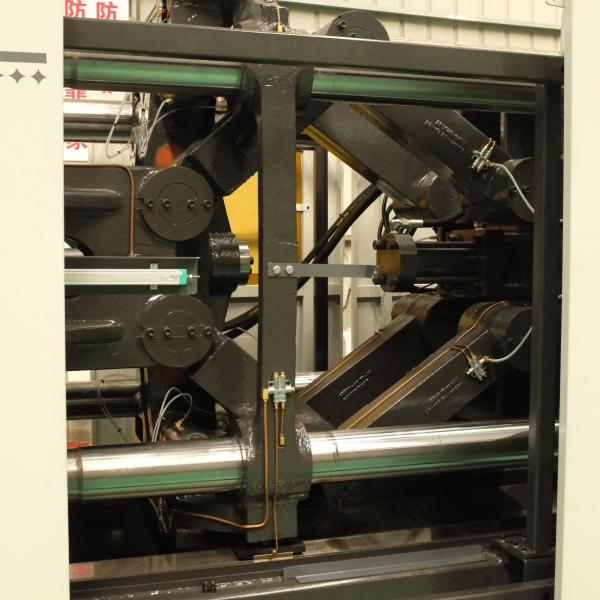

Detail Pictures
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash CansOUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash CansOUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash CansOUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash CansOUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash CansOUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans

OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
Company Profile
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
