Specifications
Brand Name :
OUCO
Model Number :
OUCO OC550H
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
OUCO 550T High Quality Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

OUCO 550T High Quality Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine

We are committed to becoming the leading brand in the industry. After years of development and experience accumulation, we have installed advanced production equipment in the workshop and are equipped with complete testing methods to ensure the quality of the products and ensure your peace of mind. A strong technical team is the solid backing for injection molding machine production and continuously injects vitality into our brand. Injection molding machine products adopt innovative design and leading process technology, showing high performance, high stability, high efficiency and other characteristics in actual operation, fundamentally saving production costs for you. We can match the appropriate injection molding machine model and recommend the appropriate screw according to the customer's product needs, which can meet your diverse production needs. Whether you want to increase production volume or save costs, OUCO injection molding machines will meet your needs. Welcome to contact us and let us work together to create a better future.

Product Advantages

If you are looking for an injection molding machine that can produce deep cavity plastic products, then the OC-550H will be your best choice. The servo motor equipped on the machine responds quickly during start, stop and acceleration processes, enabling a faster and more efficient production cycle and improving production efficiency. We select parts from well-known domestic and foreign manufacturers, and ensure stable and reliable machine performance through precision processing and assembly, so that the machine reaches European performance. The clamping force is controllable and evenly applied to the mold, which improves product accuracy while protecting the mold and extending the service life of the mold and machine. When designing OC-550H, we increased the mold opening stroke, which can allow larger and deeper molds to produce larger products, providing you with new ideas for producing large plastic products such as trash cans or storage boxes. This series of advantages makes OC-550H your efficient and reliable production partner. Choose us to inject more powerful production power into your production.

Parameters

MODEL OC550H
Clamping force (kN) 5500
Space between tie bar (mm*mm) 860*800
Max. mold thickness (mm) 800
Min. mold thickness(mm) 300
Opening stroke (mm) 1010
Ejector stroke(mm) 210
Ejector force forward(Kn) 103
Screw diameter(mm) 80
Screw L/D ratio 22
Theoretical injection volume (cm3) 2060
Shot weight (PS) g 1918
Injection pressure(MPa) 149
Injection speed (mm/s) 133
Injection rate (g/s) 646
Motor power (Kw) 75
Oil tank capacity(L) 850
Heater power (Kw) 27
Machine Weight (T) 20
Machine size L×W×H (m) 8.7*2.1*2.2

Detail Pictures

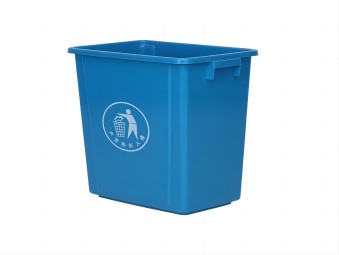

OUCO 550T Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine

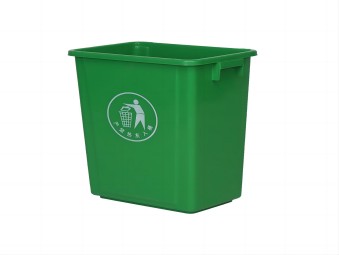

OUCO 550T Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine

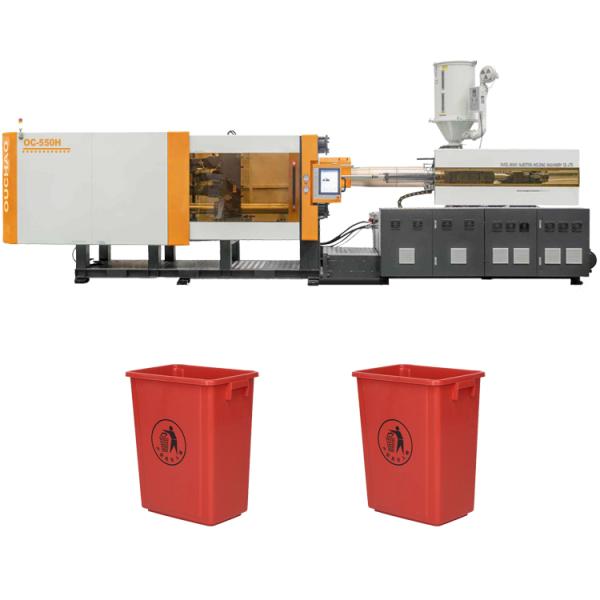

OUCO 550T Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine OUCO 550T Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine
Company Profile
OUCO 550T Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine
OUCO 550T Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine
OUCO 550T Hydraulic Servo Restaurants Large Capacity Plastic Bucket Injection Molding Machine
