280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
Specifications
Brand Name :
OUCO
Model Number :
OCM-280H
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
280T Energy Saving Automated System Orange Color Plastic Storage Box Servo Motor Making Injection Molding Machine
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

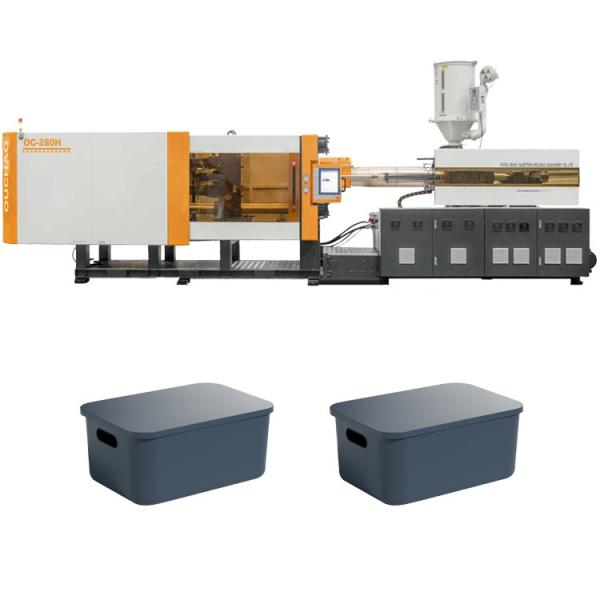

280T Energy Saving Automated System Orange Color Plastic Storage Box Servo Motor Making Injection Molding Machine

OUCO specialises in manufacturing injection molding machines with many years of production experience. While advancing with the times, we do not forget our original intention. We have injected scientific and technological vitality into the existing injection molding machines, constantly updated and upgraded them, equipped with high-quality control units and injection units, just to bring you a high-quality sense of use. Vigorous independent research and development, forming a core technology with its own characteristics. Choose OUCO, we will do better.

Product Advantages

OUCO280T injection molding machine is one of our main products, which has a wide range of application, compact and precise design, adopting servo hydraulic system, which realizes the energy can be given as much as it needs to be, and the energy saving is more than 50%, which greatly reduces the energy consumption. Centre clamping structure, clamping force is up to 100%, the plastic storage box is strong and durable, not easy to deform, greatly improving the quality.

Parameters

MODEL OCH-280T
Clamping force (kN) 2800
Space between tie bar (mm*mm) 610*590
Max. mold thickness (mm) 620
Min. mold thickness(mm) 220
Opening stroke (mm) 570
Ejector stroke(mm) 160
Ejector force forward(Kn) 77
Screw diameter(mm) 70
Screw L/D ratio 20
Theoretical injection volume (cm3) 1077
Shot weight (PS) g 980
Injection pressure(MPa) 130
Injection speed (mm/s) 106
Injection rate (g/s) 583
Motor power (Kw) 36
Oil tank capacity(L) 380
Heater power (Kw) 18
Machine Weight (t) 9
Machine size L×W×H (m) 6.4*1.5*2.2

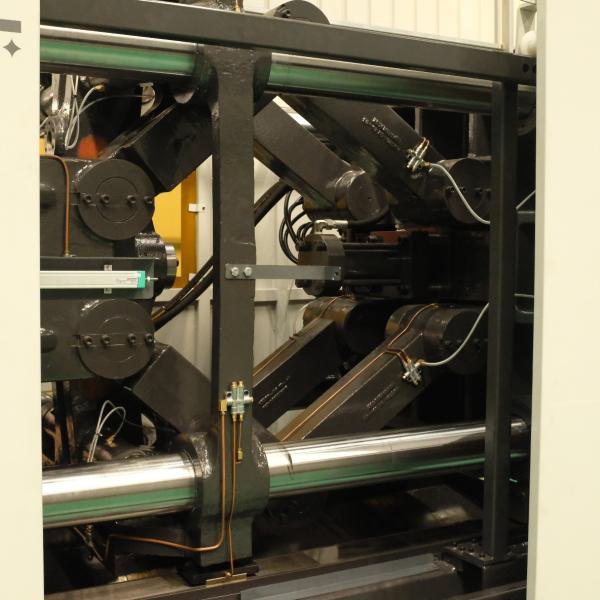

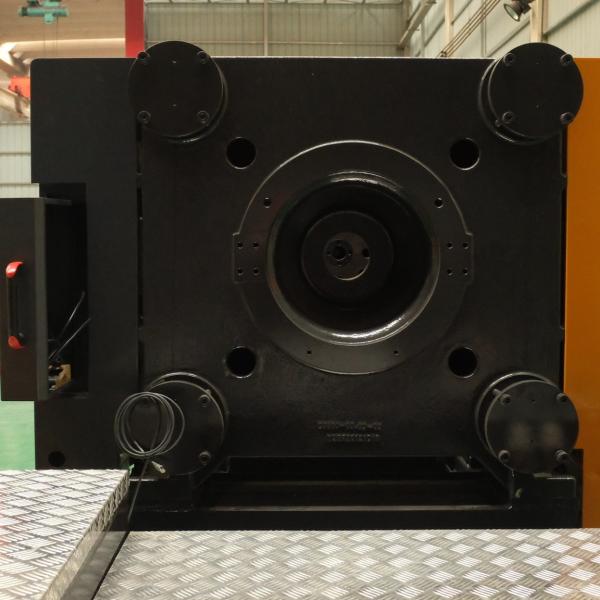

Detail Pictures


280T Plastic Injection Molding Machine Energy Saving Automated System280T Plastic Injection Molding Machine Energy Saving Automated System280T Plastic Injection Molding Machine Energy Saving Automated System
Company Profile
280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
280T Plastic Injection Molding Machine Energy Saving Automated System
