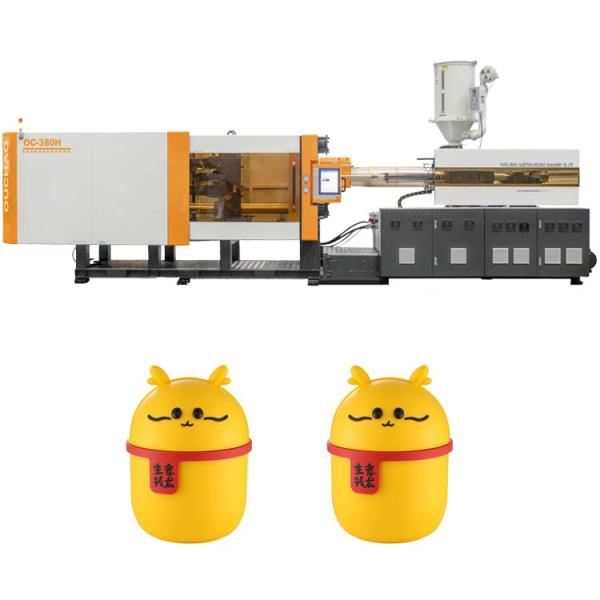

380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
Specifications
Brand Name :
OUCO
Model Number :
OCM-380H
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
380T 100% Clamping Force High Performance Orange Color Miniature Garbage Plastic Injection Molding Machine Making
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

380T 100% Clamping Force High Performance Orange Color Miniature Garbage Plastic Injection Molding Machine Making

OUCO is a high-tech enterprise focusing on the production of plastic injection molding machines, and always takes ''science and technology to develop the factory'' as the strategic goal of development, through scientific and technological innovation, closely combined with the market demand, to create a series of high-quality and efficient new products. Your pursuit is what we have been working hard for. We hope to cooperate with you and make progress hand in hand to create a brilliant future.

Product Advantages

OUCO 380T injection molding machine has double injection cylinders design, which ensures uniform nozzle contact force and injection control precision, producing high precision and high quality products. In addition, it also has timed heating function and screw anti-cold start, the machine runs stably and has high production efficiency, which brings you the maximum production benefit.

Parameters

MODEL OCH-380T
Clamping force (kN) 3800
Space between tie bar (mm*mm) 720*680
Max. mold thickness (mm) 730
Min. mold thickness(mm) 300
Opening stroke (mm) 800
Ejector stroke(mm) 190
Ejector force forward(Kn) 62
Screw diameter(mm) 80
Screw L/D ratio 22
Theoretical injection volume (cm3) 1759
Shot weight (PS) g 1699
Injection pressure(MPa) 133
Injection speed (mm/s) 99
Injection rate (g/s) 481
Motor power (Kw) 47.5
Oil tank capacity(L) 125
Heater power (Kw) 27
Machine Weight (t) 13
Machine size L×W×H (m) 8.2*1.9*2.0

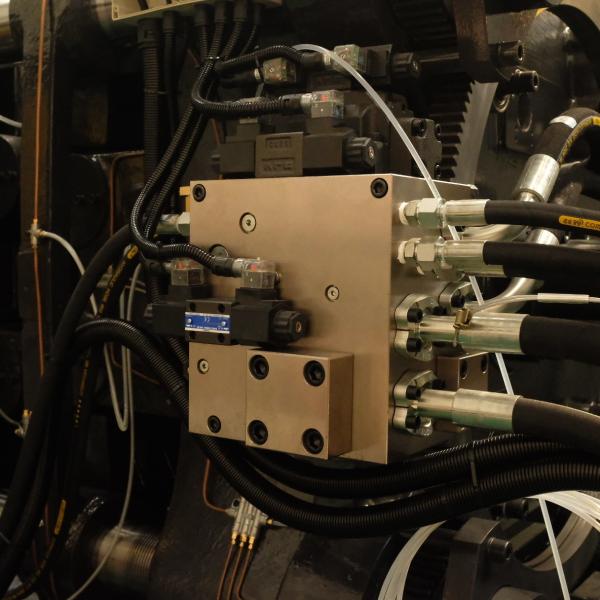

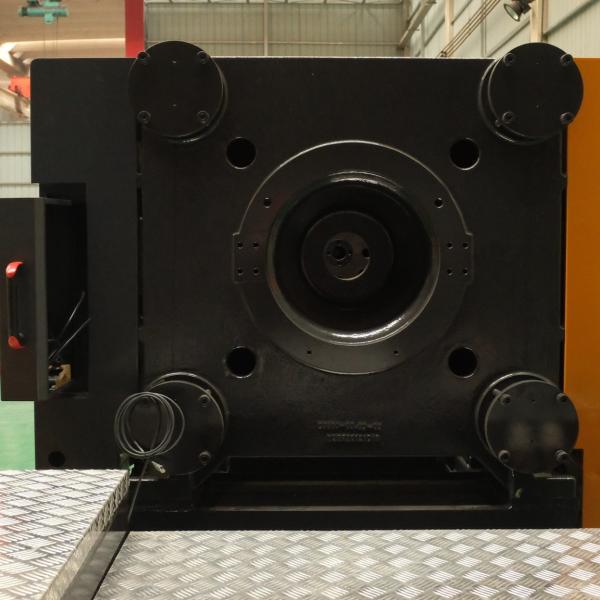

Detail Pictures


380t Plastic Injection Molding Machine Miniature Garbage Making380t Plastic Injection Molding Machine Miniature Garbage Making380t Plastic Injection Molding Machine Miniature Garbage Making380t Plastic Injection Molding Machine Miniature Garbage Making
Company Profile
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
380t Plastic Injection Molding Machine Miniature Garbage Making
