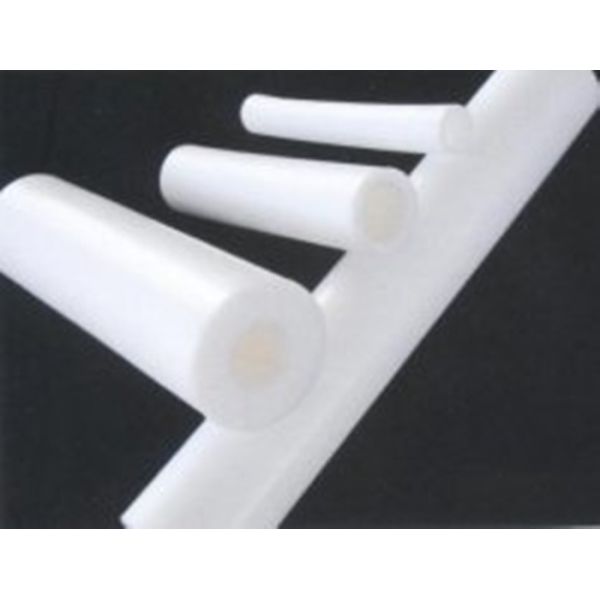

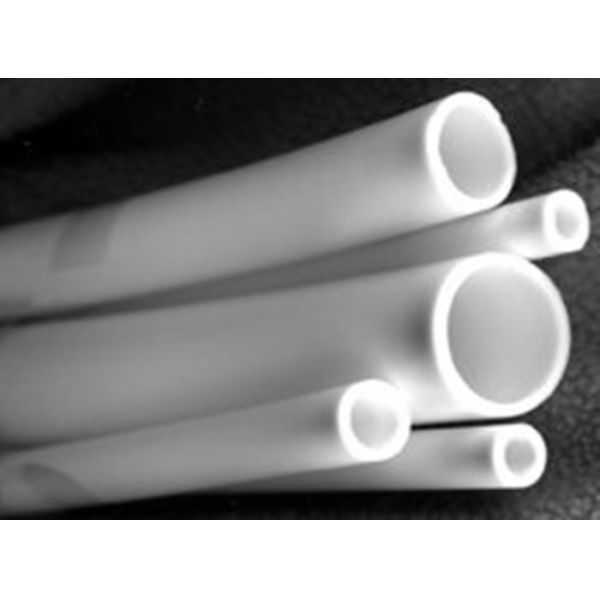

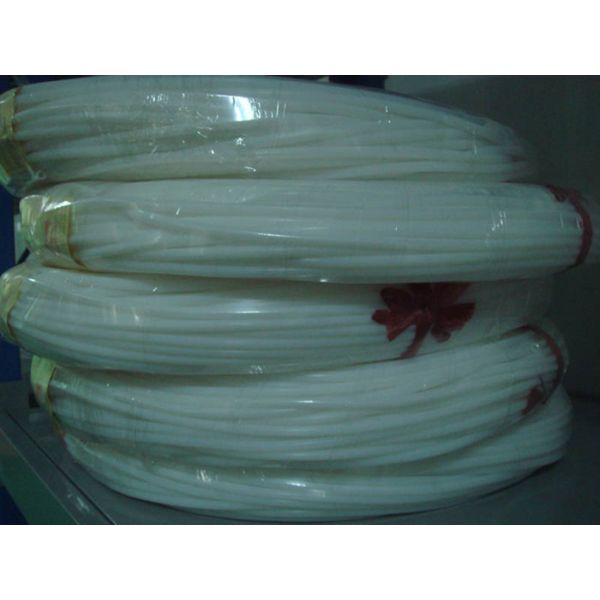

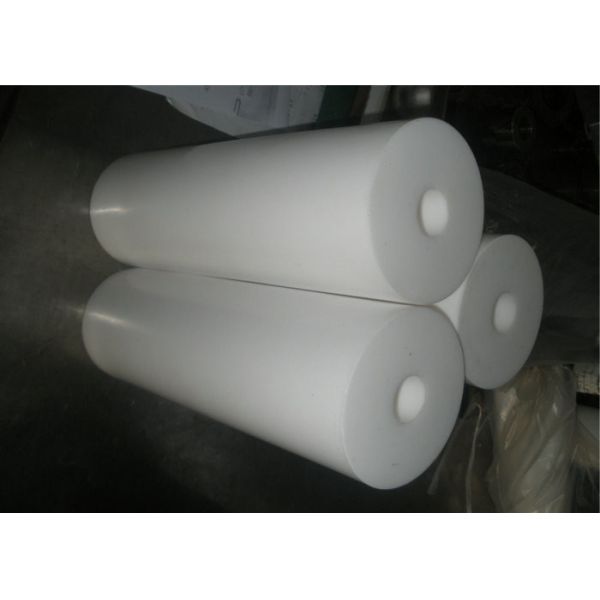

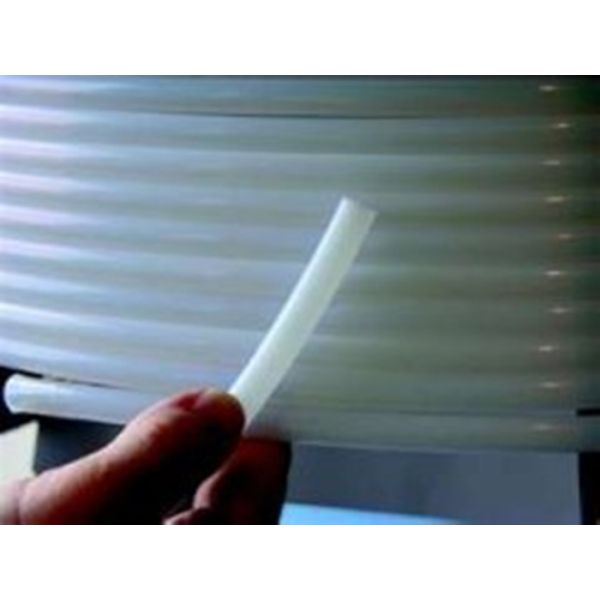

White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
Specifications
Brand Name :
3Arubber
Model Number :
3A3003
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10pieces
Price :
neogation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100000 kgs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
packed in cartons
Material :
100% Virgin PTFE Material
Produced :
Moulded
Quality :
industrial grade,food grade
Color :
white,blak,brown
Surface :
smooth
Tensile Strength :
20Mpa
Elongation :
200%
Density :
2.1-2.3g/cm³
Hardness :
55shore D
Description
White 100% Virgin PTFE Tubing Industrial Grade 20Mpa Tensile Strength
Product Overview
Premium PTFE tubing manufactured from 100% virgin polytetrafluoroethylene material. This industrial-grade tubing offers exceptional chemical resistance, weathering resistance, dielectric properties, and the lowest coefficient of friction among all known solid materials.
Key Features
  • Superior chemical resistance - the best polymer material for chemical resistance among all known plastics
  • Excellent weathering resistance and dielectric properties
  • Lowest coefficient of friction in all known solid materials
  • Wax-like surface with exceptional non-stick properties
  • Wide operating temperature range: -180°C to +260°C
  • Premium electrical insulation properties for various frequency applications
Technical Specifications
Material 100% virgin PTFE, 50% virgin PTFE
Filling Options Graphite, carbon or bronze
Quality Grades Premium grade, commercial grade
Color Options White, black
Surface Finish Smooth
Tensile Strength 20Mpa
Hardness 55+/-5 shore D
Elongation at Break 200%
Density 2.1-2.3 G/cm³
Breakdown Voltage 10KV/mm
Temperature Resistance -180°C to +260°C
Available Sizes
Soft PTFE Tube Ø 2-25mm * Ø 4-30mm * 10-50m length
Extruded PTFE Tube Ø 24-104mm * Ø 28-110mm * 4000mm length
Moulded PTFE Tube Ø 20-200mm * Ø 40-400mm * 10-300mm length
Note: Black PTFE tubing is available with 3% graphite or 10% carbon filling. When requesting a quote, please specify the color, size, and quantity requirements.
