Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
Specifications
Color :
black
Tensile strength :
20Mpa
Density :
2.1-2.3g/cm3
Elongation :
200%
Hardness :
55shore D
Brand Name :
3A Rubber
Model Number :
3A3003
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10pieces
Price :
negotiation
Payment Terms :
T/T,L/C,Paypal,Western Union
Supply Ability :
100000kgs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in crates
Surface :
smooth
Material :
PTFE filled graphite or arbon
Quality :
industrial grade
Description

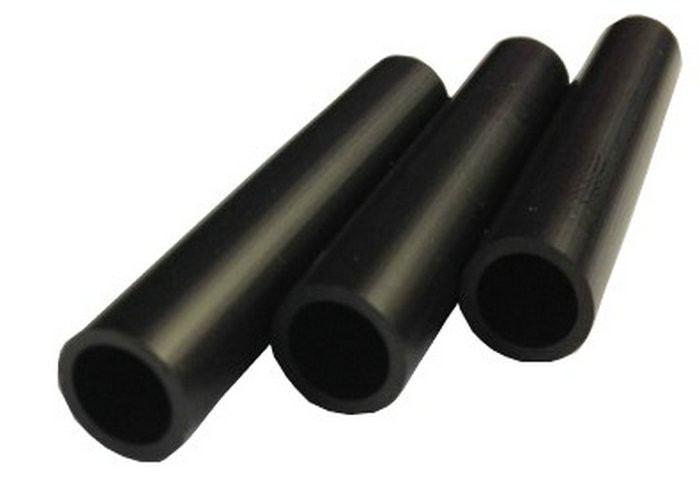

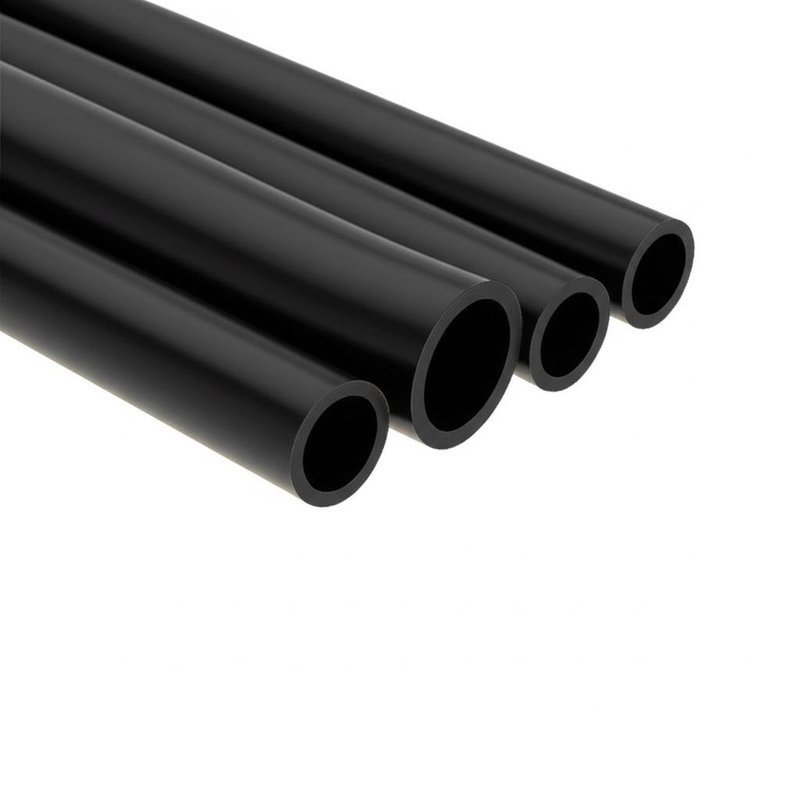

Industrial Grade Black Extrude PTFE Tube Filled Graphite Or Carbon ROHS FCC SGS
Black extrude PTFE tube, PTFE hose, PTFE tube, PTFE hose filled with graphite or carbon. These industrial-grade tubes offer superior performance in demanding applications.
Extrusion PTFE Tubes & Pipe
Extrusion PTFE Tubes are manufactured by plunger extrusion of suspension polymerized PTFE resin. Among all existing plastics, Extrusion PTFE offers the best corrosion resistance and dielectric properties. Suitable for lead insulating sleeves, corrosion-resistant PTFE tubes, and corrosion-resistant insulating PTFE tubes for various corrosive conditions and heat exchangers.
Project Name Unit Result
Apparent Density g/cm³ 2.1 ~ 2.3
Tensile Strength Mpa ≥ 14.0
Ultimate Elongation % ≥ 150
OD (mm) - 20mm to 130mm
Length (mm) - 1000mm, 1220mm, 1500mm, 1800mm, 2100mm, 4200mm
Molded PTFE Tube & Pipe
Molded PTFE Pipe is produced by plunger extrusion of suspension polymerized PTFE resin. Molded PTFE provides exceptional corrosion resistance and dielectric properties, making it ideal for lead insulating sleeves, corrosion-resistant PTFE tubing, and corrosion-resistant insulating PTFE tubing for various corrosive conditions and heat exchangers.
Project Name Unit Result
Apparent Density g/cm³ 2.1 ~ 2.3
Tensile Strength Mpa ≥ 14.0
Ultimate Elongation % ≥ 150
OD (mm) - 10mm to 300mm
Length (mm) - 100mm, 150mm, 300mm

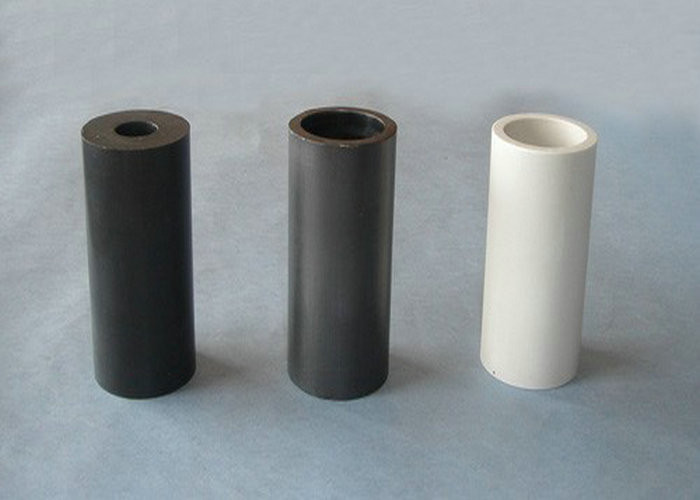

Filled PTFE Sleeve
Filled PTFE bush is manufactured by plunger extrusion of suspension polymerized PTFE resin. Filled PTFE maintains excellent corrosion resistance and dielectric properties while offering enhanced characteristics through various fillers including Carbon, MoS2, Ekonol, Glass fiber, and Glass ball.
Project Name Unit Result
Apparent Density g/cm³ 2.1 ~ 2.3
Tensile Strength Mpa ≥ 14.0
Ultimate Elongation % ≥ 150
OD (mm) - 10mm to 300mm
Length (mm) - 100mm, 150mm, 300mm, 1000mm, 1500mm, 2000mm
Industrial Grade Black Extrude PTFE Tube Filled Graphite or Carbon for Corrosion Resistance
