Specifications
Produced :
moulded
Surface :
smooth
Hardness :
55shore D
Elongation :
200%
Tensile strength :
20Mpa
Density :
2.1-2.3g/cm3
Brand Name :
3A Rubber
Model Number :
3A3003
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10pieces
Price :
negotiation
Payment Terms :
T/T,L/C,Paypal,Western Union
Supply Ability :
100000kgs per month
Delivery Time :
10 working days after received your payment
Packaging Details :

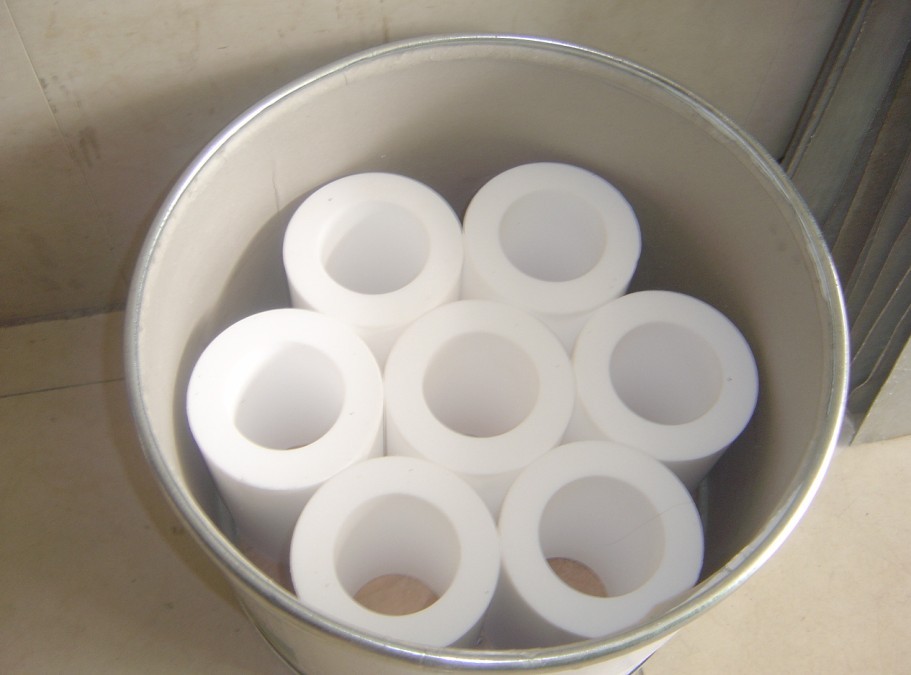

Packed in crates
Color :
natural white color, black, brown
Material :
100% virgin PTFE material
Quality :
industrial grade, food grade
Description
Premium Grade Moulded PTFE Extruding Pipes For Electronics Industry
Premium Grade Moulded PTFE Tube
Made with 100% virgin PTFE material - the best sealing material with excellent lubricity, non-stickiness, and resistance to grinding into powder.
Production Process
PTFE Extruding Pipes are manufactured using PTFE resin through a specialized pushing method followed by sintering.
Product Appearance
Features smooth surfaces, uniform texture, bright color and luster, with no cracks, dark spots, or mechanical damage.
Product Specifications
ID*OD*L (mm) ID*OD*L (mm) ID*OD*L (mm)
10*19*1000 65*80*1000 110*140*1000
16*22*1000 70*100*1000 130*145*1000
25*50*1000 85*100*1000 180*200*1000
40*80*1000 90*120*1000 310*330*1000
55*59*1000 100*140*1000 375*400*1000
Technical Specifications
Density Tensile Strength Elongation at Rupture
2.3 g/cm³ ≥15.0 MPa ≥150%
Product Advantages
  • Excellent chemical stability for use in extreme temperatures from -180°C to +260°C
  • Superior lubricity and non-stick properties, making it ideal for oil-free lubrication applications
  • Outstanding resistance to atmospheric aging among all plastic materials
Product Applications
Suitable for Chemical Industry, Machinery Industry, Electronics Industry, Automotive Industry, Defense Industry, Pharmaceutical Industry, and more.
