Specifications
Brand Name :
3A Rubber
Model Number :
3A3003
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
1roll
Price :
negotiation
Payment Terms :
T/T,L/C,Paypal,Western Union
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in cartons
Color :
transparent
Produced :
extruded
Surface :
smooth
Hardness :
55shore D
Working temperature :
-180°C - +260°C
Density :
2.1-2.3g/cm3
Quality :
industrial grade, food grade
Material :
100% virgin PTFE material
Description

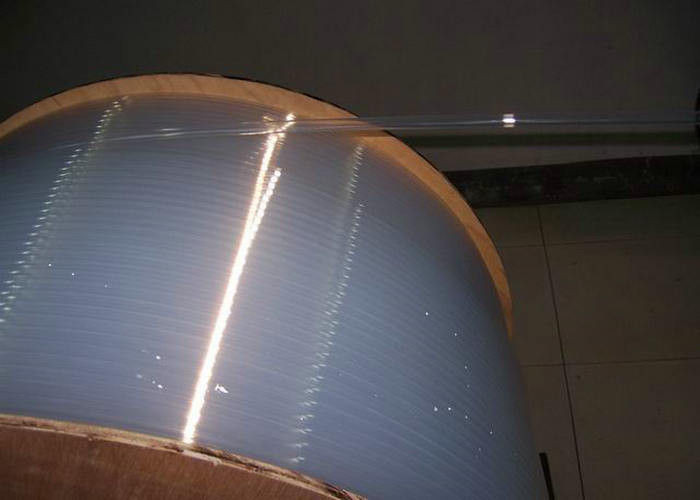

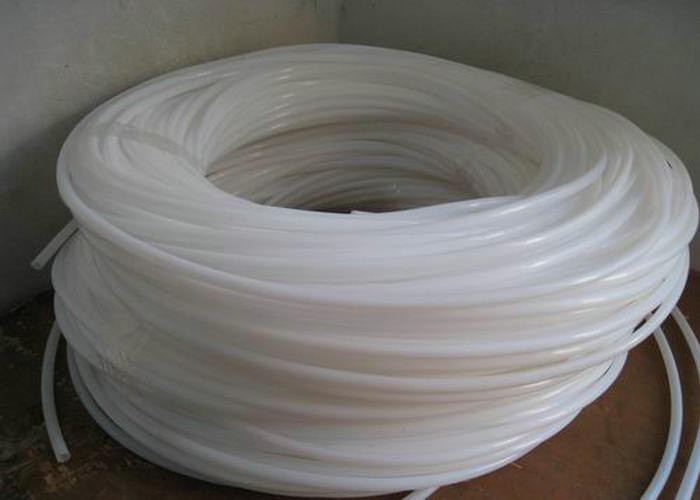

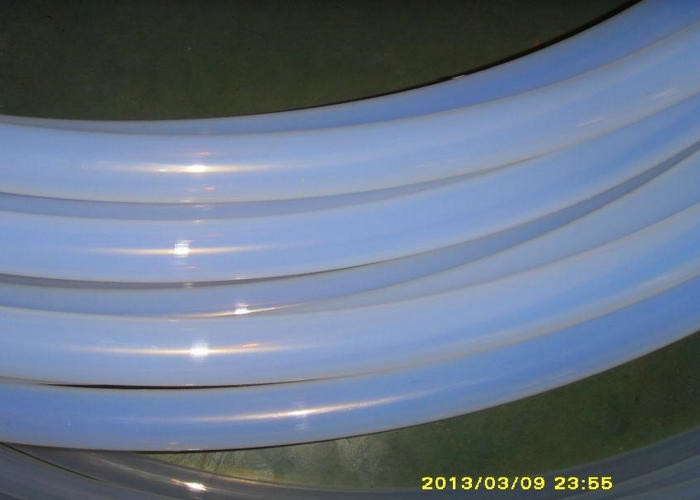

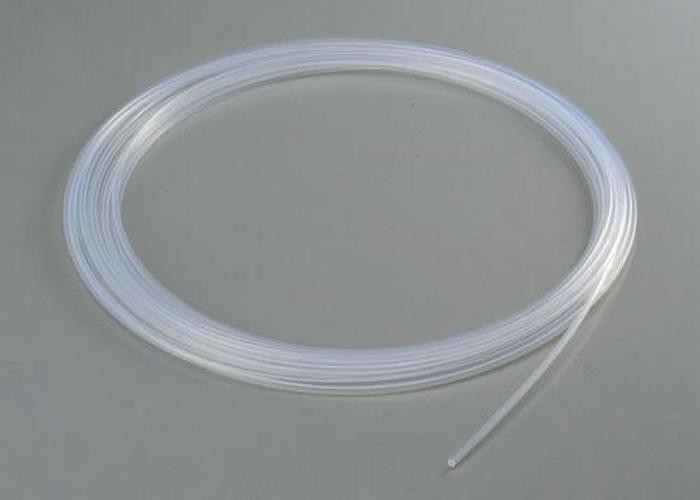

High Temperature Insulate Transparent PTFE Tube / PTFE Pipe
Product Overview

High temperature insulate PTFE tube/hose/pipe with transparent color, offering exceptional performance in demanding industrial applications.

  • Good resistance to high temperature and low temperature
  • Excellent resistant to aqua regia and all kinds of organic solvents
  • High lubricating ability and non-sticking
  • Excellent electric property and long life performance
  • Widely applied in fields like machinery, automobile, electronics, chemicals and valves

Widely used in industries of electrical, computer, chemical, high temperature areas, aerospace & transmission systems.

PTFE Tube Specifications
Key Features
  • Anti-corrosion
  • Anti-flaming
  • High insulation
  • Anti high temperature
Product Description

Forbest Manufacturing Co. Ltd offers a wide range of standard size products and precision custom PTFE Tubing. Often referred to as PTFE Tubing, it has become the gold standard in industries requiring the ultimate in lubricity, high temperature use, chemical resistance, biocompatibility, and precision extruded tolerances.

Main Properties
  • Very Lubricious - Lowest coefficient of friction of any polymer
  • Working temperature range: -270°C to 260°C
  • Chemically Resistant (all common solvents, acids and bases)
  • Chemically Inert
  • Low extractable
  • Excellent Dielectric Insulation Properties

These properties are most of many reasons why PTFE is used in medical applications, aerospace, analytical sciences, and other demanding applications.

Material Characteristics
Character Test Method Unit Specification Requirements
Specific Gravity ASTM D792 g/cm³ 2.16
Tensile strength ASTM D638 Mpa 24.5
Ultimate Elongation ASTM D638 % 350
Flexural Modulus ASTM D790 Mpa 490
Impact Strength ASTM D256+23°C-54°Cj/m
-No break-107
Hardness ASTM D2240 Shore D 55
Coefficient Of Dynamic Friction

0.1
Melting Point
°C 327
Flammability UL 224
VW-1
Dielectric Constant At 10³-10⁶HZ ASTM D150
2.1
Dissipation Factor At 10⁶ HZ ASTM D150
0.0002
Arc Resistance ASTM D495 S > 300
Volume Resistivity ASTM D257 Ω.cm > 10¹⁸
Weather Resistance Weather-o-meter (2000h)
No break
Solvent Resistance ASTM D543
Excellent
Chemical Resistance ASTM D543
Excellent
Standard Sizes
SIZE Inside diameter (mm) Tolerance (mm) Outside diameter (mm) Package (M/ROLL)
30AWG 0.30 ±0.06 0.76 305
28AWG 0.38 ±0.06 0.84 305
26AWG 0.46 ±0.06 0.92 305
24AWG 0.56 ±0.06 1.16 305
23AWG 0.66 ±0.06 1.26 305
22AWG 0.71 ±0.06 1.31 305
21AWG 0.81 ±0.06 1.41 305
20AWG 0.86 ±0.06 1.66 305
19AWG 0.96 ±0.07 1.76 200
18AWG 1.07 ±0.08 1.87 200
17AWG 1.19 ±0.08 1.99 2500
16AWG 1.34 ±0.09 2.14 153
15AWG 1.50 ±0.10 2.30 153
14AWG 1.68 ±0.10 2.48 100
13AWG 1.93 ±0.10 2.73 100
12AWG 2.16 ±0.10 2.96 100
11AWG 2.41 ±0.13 3.21 100
10AWG 2.69 ±0.13 3.49 100
9AWG 3.00 ±0.13 4.00 100
8AWG 3.38 ±0.13 4.38 100
7AWG 3.76 ±0.14 4.76 100
6AWG 4.22 ±0.15 5.22 100
5AWG 4.72 ±0.16 5.72 50
4AWG 5.28 ±0.17 6.28 1m/stick
3AWG 5.94 ±0.19 6.94 1m/stick
2AWG 6.68 ±0.19 7.68 1m/stick
1AWG 7.46 ±0.20 8.46 1m/stick
0AWG 8.38 ±0.21 9.38 1m/stick
