Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Durable Industrial Grade PTFE Tubing with 100% Virgin PTFE Material and Smooth Surface for Oil Seal
Specifications
Produced :
moulded
Surface :
smooth
Hardness :
55shore D
Elongation :
200%
Tensile strength :
20Mpa
Density :
2.1-2.3g/cm3
Brand Name :
3A Rubber
Model Number :
3A3003
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10pieces
Price :
negotiation
Payment Terms :
T/T,L/C,Paypal,Western Union
Supply Ability :
100000kgs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in crates
Color :
natural white color, black, brown
Material :
100% virgin PTFE material
Quality :
industrial grade, food grade
Description

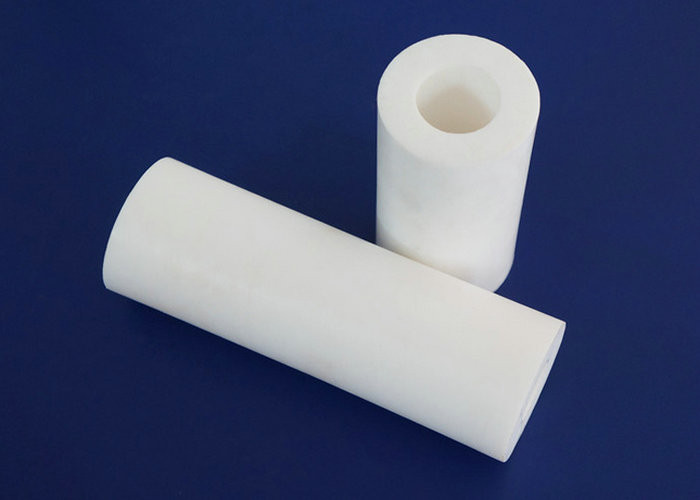

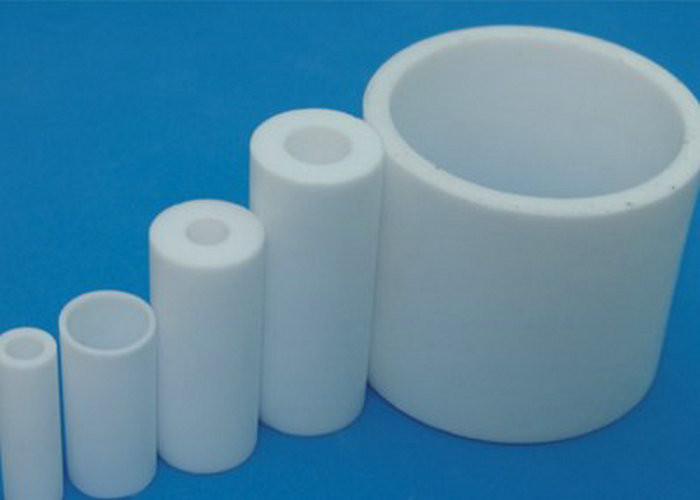

Durable White Plastic PTFE Tubing For Oil Seal
Available in 1/2" and 3/4" PTFE Tube sizes
Product Overview
Plastic PTFE tube for oil seal gasket applications

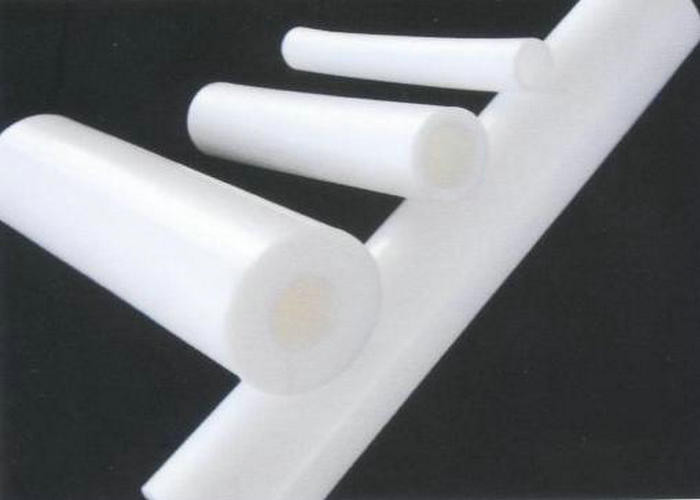

Moulded PTFE tubing and pipes manufactured with 100% virgin PTFE material
Material Specifications
Material: PTFE (Polytetrafluoroethylene)
Our company specializes in developing and providing quality-stable chemical equipment that addresses the dual needs of corrosion resistance and cost efficiency for process engineers. Our products are widely used in chemical, petrochemical, agrochemical, pharmaceutical, fine chemical, and metallurgy industries.
With fixed assets exceeding 50 million Yuan and a land area of 57,000 square meters, we employ 308 staff members including 56 technical management personnel. Our team includes one mechanical equipment expert from Canada and one chemical technical expert from Japan.
Our high-quality products serve customers throughout China and have been exported to numerous countries including America, Brazil, Japan, Korea, Mexico, Malaysia, Israel, Iran, Russia, and other regions. Our highly-trained technical team provides practical, cost-effective solutions for process problems.
Special pieces of specific or non-standard sizes can be manufactured upon request.
PTFE Liner/Tube Specifications
Nominal Diameters OD * Wall Thickness Tolerances Weight per Meter (kgs) Nominal Diameters OD * Wall Thickness Tolerances Weight per Meter (kgs)
1/2"Ø20*2±0.50.262 1/2"Ø68*2.5±1.21.18
1/2"Ø22*2±0.50.292 1/2"Ø68*3±1.21.41
3/4"Ø25*2±0.50.342 1/2"Ø78*3.5±1.21.88
3/4"Ø26*3±0.50.52 1/2"Ø79*3.5±1.21.91
1"Ø29*2±0.50.393"Ø81*2.5±1.21.42
1"Ø32*2±0.50.433"Ø81*3±1.21.69
1"Ø32*2.5±0.50.533"Ø81*4.5±1.22.49
1 1/4"Ø38*2.5±0.50.643"Ø82*4±1.22.25
1 1/2"Ø40*2.5±0.50.683"Ø86*3±1.21.8
1 1/2"Ø40*3±0.50.84"Ø99*3±1.22.1
1 1/2"Ø40*4±0.51.044"Ø100*3±1.22.11
1 1/2"Ø41*2±0.70.564"Ø101*3±1.22.12
1 1/2"Ø45*3±0.70.914"Ø101*4±1.22.8
2"Ø51*2±0.70.714"Ø101*5±1.23.47
2"Ø52*2±0.70.734"Ø102*3±1.22.15
2"Ø51*2.5±0.70.885"Ø126*3.5±1.23.1
2"Ø51*3±0.71.15"Ø148*4±1.24.16
2"Ø50.5*4±0.71.346"Ø149*4±1.24.19
2"Ø50.5*5±0.71.656"Ø150*4±1.24.22
2"Ø54*2.5±0.70.938"Ø204*4±1.25.78
2"Ø57*3±0.71.178"Ø207*4±1.25.86
2 1/2"Ø64*2.5±0.71.1110"Ø257*5.5±1.29.99
2 1/2"Ø64*4.5±0.71.9312"Ø308*5.5±1.212.02
2 1/2"Ø67*3±0.71.3912"Ø308*5±1.210.95
Custom manufacturing available: We can produce any other OD*ID tubes according to customer requirements. Maximum liner length: 4200mm.
