Specifications
Brand Name :
3A Rubber
Model Number :
3A3003
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10pieces
Price :
negotiation
Payment Terms :
T/T,L/C,Paypal,Western Union
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in cartons
Color :
natural white color, black, brown
Produced :
moulded
Elongation :
200%
Tensile strength :
20Mpa
Density :
2.1-2.3g/cm3
Surface :
smooth
Hardness :
55shore D
Material :
100% virgin PTFE material
Quality :
industrial grade, food grade
Description

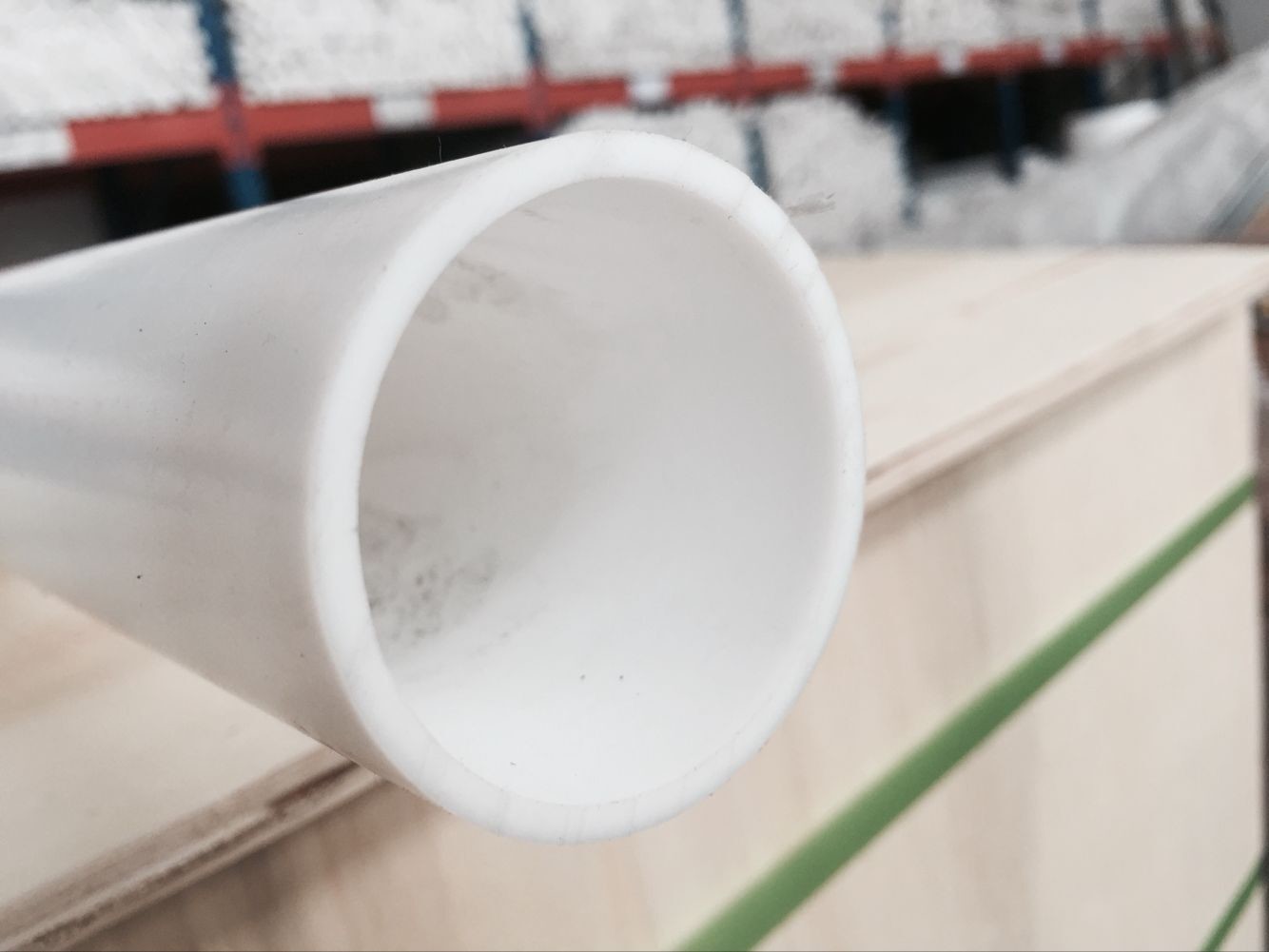

Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface
Moulded PTFE tube, PTFE tubing, PTFE pipe made with 100% virgin PTFE material
Product Description
There are three types of PTFE tube:

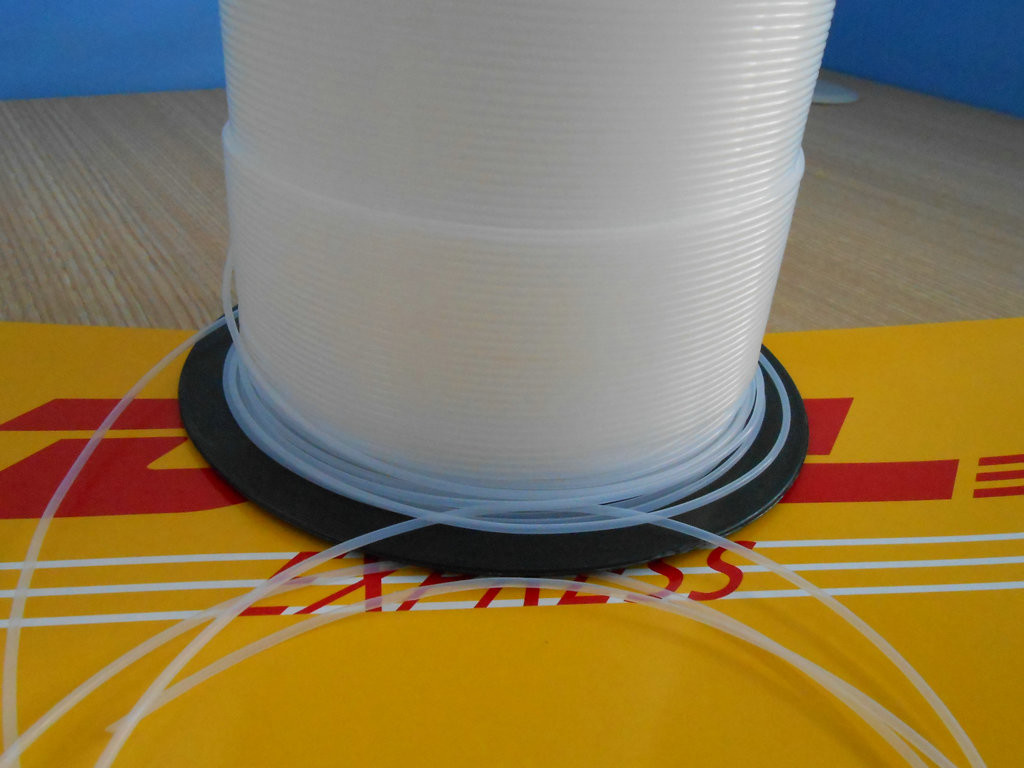

  • Paste Extruded Tube
    The tube is made by paste extruded with disperse resin.
    0.5mm ≤ OD ≤ 25mm
    Length is according to customer's request.
  • Plug Extruded Tube
    The tube is made by plug extruded with suspension resin.
    25mm ≤ OD ≤ 250mm
    Length is according to customer's request.

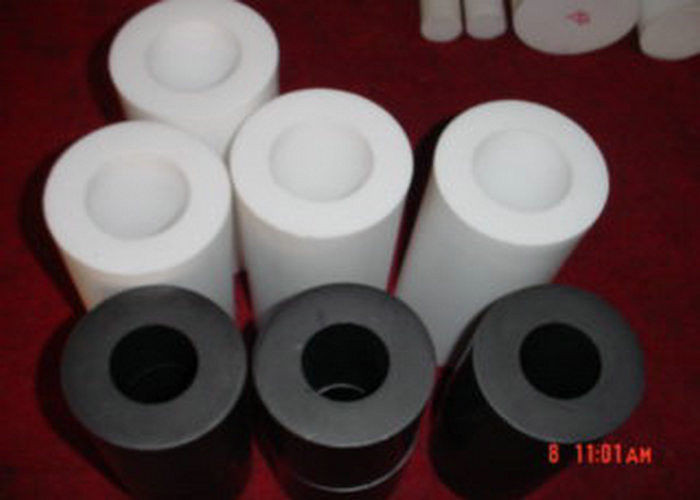

  • Molded Tube
    The tube is made by molded method.
    25mm ≤ OD ≤ 200mm
    50mm ≤ Length ≤ 300mm
Specification
Type OD (mm) Wall Thickness (mm) Length (mm)
Paste Extruded Tube 0.5~25 0.1~2.5 According to customer's request
Plug Extruded Tube 25~250 1.5~8 According to customer's request
Molded Tube 25~2000 5~500 100~300
There are many specifications in stock. The data is too extensive to list here.
Special specifications can be customized.
If you have any interest, please contact us. We will respond to you as soon as possible.
Properties
Item Properties Unit
Apparent density 2.10-2.30 g/cm³
Tensile Strength 20 Mpa
Elongation at break ≥200 %
The PTFE tube is made by moulded or extruded with high quality polytetrafluoroethylene (PTFE) material. It is the best polymer material for chemical resistance among all known plastic materials. With excellent characteristics of corrosion resistance, weathering resistance, dielectric properties and the lowest coefficient of friction among all known solid materials in a wide range of practical temperatures from -180°C to +260°C, it features a wax-like surface to which anything hardly sticks.
Ø2-9mm is made by paste extruded, Ø10-50mm is made by ram extruded, Ø50-300mm is made by moulded. It has the best electrical properties of all plastics. Used for electrical insulation under various frequencies, seal liners for corrosive media, anti-sticking materials, and lubrication applications.
Technical Specifications
  • Material: Virgin PTFE
  • Filling: Graphite, carbon, bronze or fiberglass
  • Quality: Premium grade
  • Color: White, black, brown
  • Surface: Smooth
  • Tensile strength: 20-30 Mpa
  • Hardness: 55+/-5 shore D
  • Elongation at break: 200%
  • Density: 2.1-2.7 g/cm³
  • Break down voltage: 10 KV/mm
  • Temperature resistance: -180°C to +260°C
  • Size for soft PTFE tube: Ø2-25mm x Ø4-30mm x 10-50m length
  • Size for extruded PTFE tube: Ø20-400mm x Ø24-440mm x 4000mm length
  • Size for moulded PTFE tube: Ø20-200mm x Ø40-400mm x 10-300mm length
  • Black available: Filled with 3% graphite or 10% carbon
When you inquire, please confirm the color, size and quantity.
