1KG Gold Induction Melting Machine 15KW High Frequency Induction Melting Furnace
1KG Gold Induction Melting Machine 15KW High Frequency Induction Melting Furnace
1KG Gold Induction Melting Machine 15KW High Frequency Induction Melting Furnace
1KG Gold Induction Melting Machine 15KW High Frequency Induction Melting Furnace
Specifications
Brand Name :
InductionFusion
Model Number :
IF-15A (Single phase)
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
Oscillate power max :
15KW
Applicable Industries :
Hot forging, hot fitting, smelting, surface quench, welding, annealing
product size :
570x230x450mm
net weight :
27.5kg
Work power :
180V-250V
Description

High Frequency 1KG Gold Induction Melting Machine 15KW

Product Description

1. Main Feature:

l It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.

l It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.

l About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.

l It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.

l It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.

2.Technical Parameters

Model

JR-15A (Single phase)

work power

180V-250V

input current

35A

Fluctuating output power

15kw

fluctuating frequency

30-100KHZ

output current

200-600A

the flow rate of cooling water

0.06-0.12Mpa 7.5L/Min

water temperature protection point

40C

product size

570x230x450mm

net weight

27.5kg

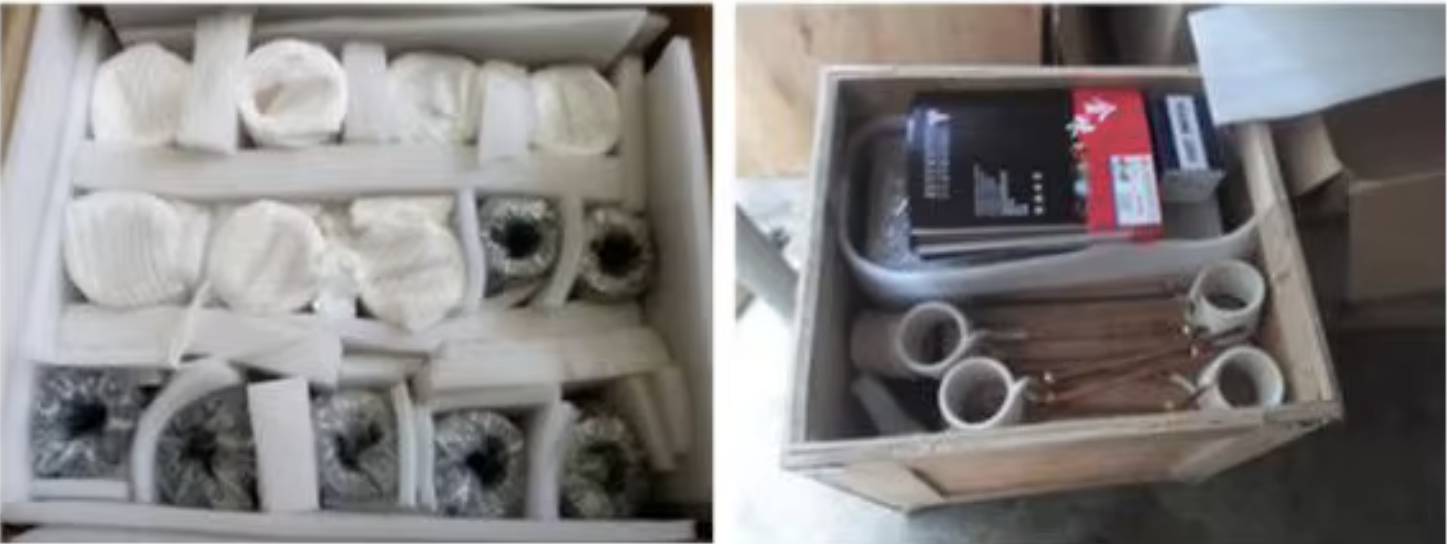

PACKAGING & SHIPPING
Plywood Case: 560mm*240mm*750mm, nearly 35KG
1KG Gold Induction Melting Machine 15KW High Frequency Induction Melting Furnace

1KG Gold Induction Melting Machine 15KW High Frequency Induction Melting Furnace
Our Services
Pre-sale service:

1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.


In-sale service:

1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.


After-sale service:

1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period,we will send maintenance
4. technician to provide visiting service after checking with the customer and charge for a favorable price.
5.we will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

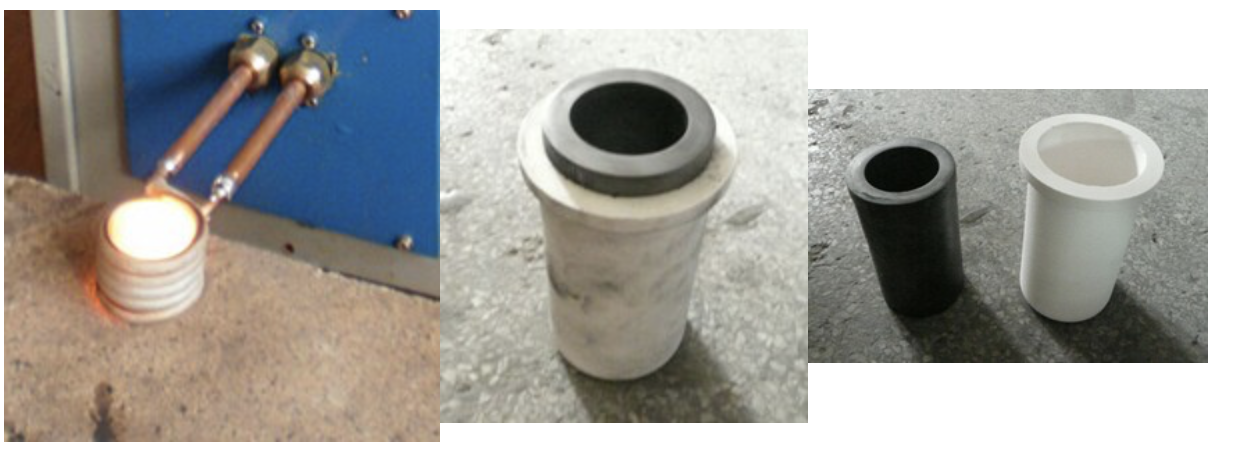

Accessories Display

1KG Gold Induction Melting Machine 15KW High Frequency Induction Melting Furnace
