10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment
10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment
10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment
10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment
10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment
10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment
10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment
10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment
Specifications
Brand Name :
InductionFusion
Model Number :
IF15-160
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
Tilting Type :
Manual Gear Box, Electric Gear Box, Hydraulic Tilt
Power Type :
IGBT Type Power Supply System
Specification :
15 kw to 300Kw
Fluctuating :
Copper, Aluminum, Iron, Steel, Silver, Gold
Description
IGBT Induction Heat Treating Equipment Melting Furnace For Steel / Copper / Alu
Description:

Our small capacity IGBT Medium frequency induction melting furnaces are mainly used to melt steel, stainless steel, copper, brass, silver, gold ,glass and aluminium materials, etc.
Adopt IGBT medium frequency power supply, it is more efficient than normal electrical and becomes more and more popular in metallurgy field.
Features:

1. Easy to install and operate. No need to make foundation or any civil work.
2. Super small size and portable, occupies less than 1.0 square meters.
3. 24 hours non-stop melting ability.
4. Energy saving and environmental protection.
5. It's easy to transfer the furnace to melt different materials.
Technical parameters:
Melting ability of Small Capacity IGBT medium frequency induction melting furnaces
Model
Maximum
input power
 Melting ability of common materials
Iron, steel,
stainless steel		 Brass, copper, silver, gold Aluminium
IF-15 15KW 3KG 10KG 3KG
IF-25 25KW 5KG 20KG 5KG
IF-35 35KW 10KG 30KG 10KG
IF-45 45KW 18KG 50KG 18KG
IF-70 70KW 25KG 100KG 25KG
IF-90 90KW 40KG 120KG 40KG
IF-110 110KW 50KG 150KG 50KG
IF-160 160KW 100KG 250KG 100KG

Main technical parameters of the power supply
Model IF-15 IF-25 IF-35 IF-45 IF-70 IF -90 IF -110 IF-160
Input Power Supply Three phase, 380(V)±20%, 50/60HZ
Input Power (KW) 15 25 35 45 70 90 110 160
Output Current (A) 3-22 5-45 10-70 15-90 20-130 25-170 30-200 35-290
Output Voltage(V) 70-550
Output Frequency(HZ) 1KHZ-20KHZ, can be customized as clients requirement
Duty S1, 100% 24 hours non-stop

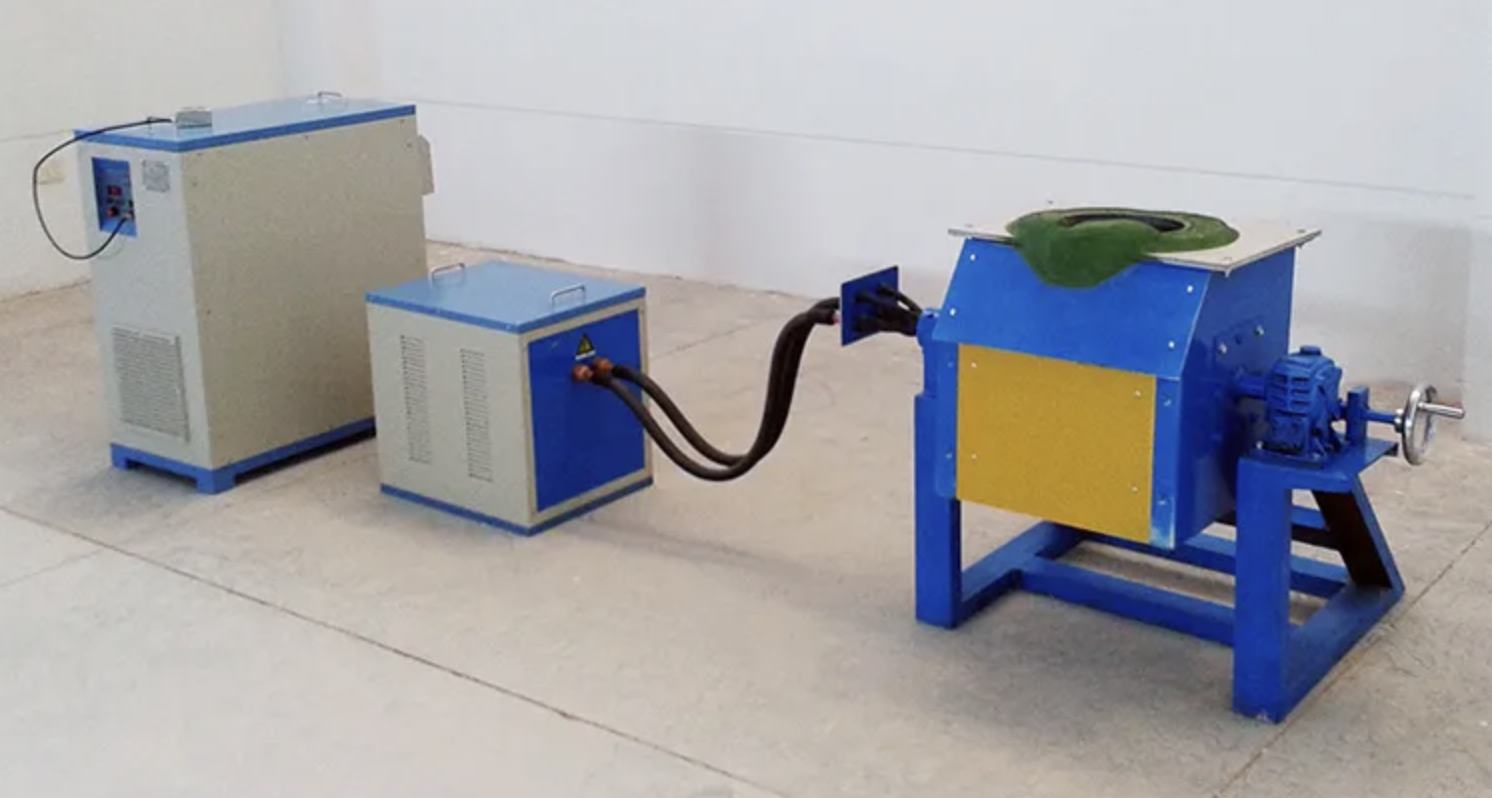

Supply scope of 1 set IGBT induction melting furnace:

10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment

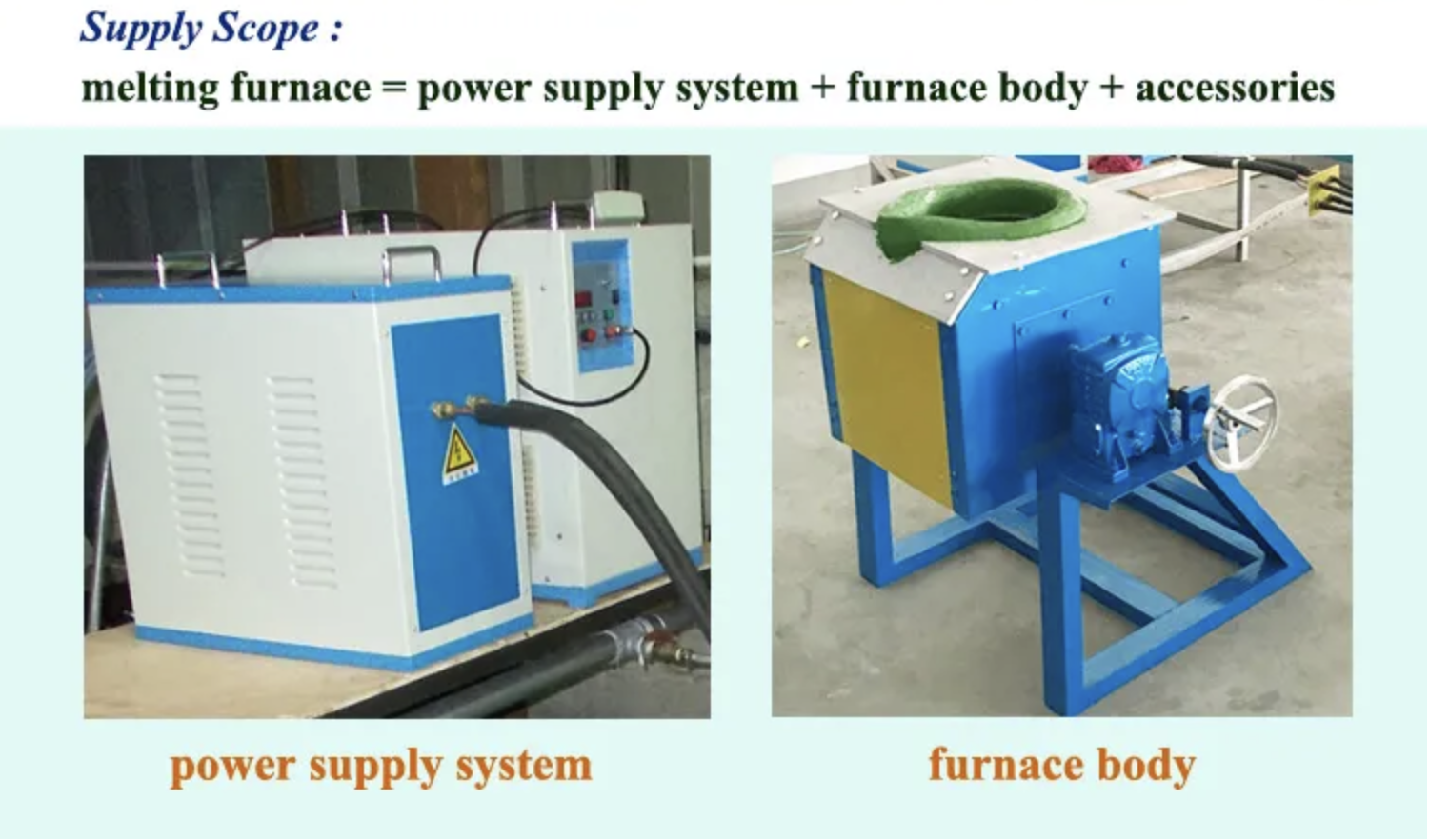

Supply Scope:
melting furnace = power supply system + furnace body +accessories

10KG-250KG Copper Induction Melting Furnace Alu Induction Heating Equipment

1. Induction Melting furnace body with stand support frame...1 pc (with one crucible inside).
2. IGBT type high-efficiency 1~20 KHz medium frequency power supply cabinet...1 pc (with digital display for voltage, current, freuqency and kw. including alarm for input over-voltage, output over-voltage, over current, water fail, phase fail, over-temperature, short-circuit, unfit frequency) ;
Capacitor cabinet...................1 pc;
Foot switch.............................1 pc;
Signal wire..............................1 pc.
3. Copper cables: ........................2 pcs (connect capacitor cabient with power supply cabient)
4. Water cooling cable...................2 pcs (connect furnace body with capacitor cabinet)

Our service:

  1. Any of your inquiry will be responsed within 12 hours.
  2. We provide english operation manuals
  3. Our factory always welcome your visit.
  4. Quality assurance: 12 months except crucible and other consumables .
