Specifications
Brand Name :
InductionFusion
Model Number :
IF-25A
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
type :
Electric Heater
Function :
Welding Annealing Forging
Certificate :
CE , SGS , ROHS
Fluctuating output power :
15KVA
fluctuating frequency :
30-100KHZ
Actually Power :
9KW
Description

Handheld Induction Heating Equipment Copper Tube Welding High Frequency Heating Machine

Specification

Product number
IF- 25A
IF- 25AB
Power supply
Three-phase 380V50HZ
Three-phase 380V50HZ
Operating voltage range
340V-430V
340V-430V
Output Power
25KW
25KW
Oscillation frequency
30-80KHZ
30-80KHZ
Output current
200-1 200A
200-1200A
Time setting (automatic time)
1-99S
1-99S
Cooling water
0.06-0. 12MPa 7.5L/Min
0.06-0.12MPa 7. 5L/Min
Water temperature protection point
40°C
40°C
weight
31KG
Host 21.5KG Extension 17KG
size
570*230*510
Host 550*225*480Extension 350*215*380
FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
proudct details:

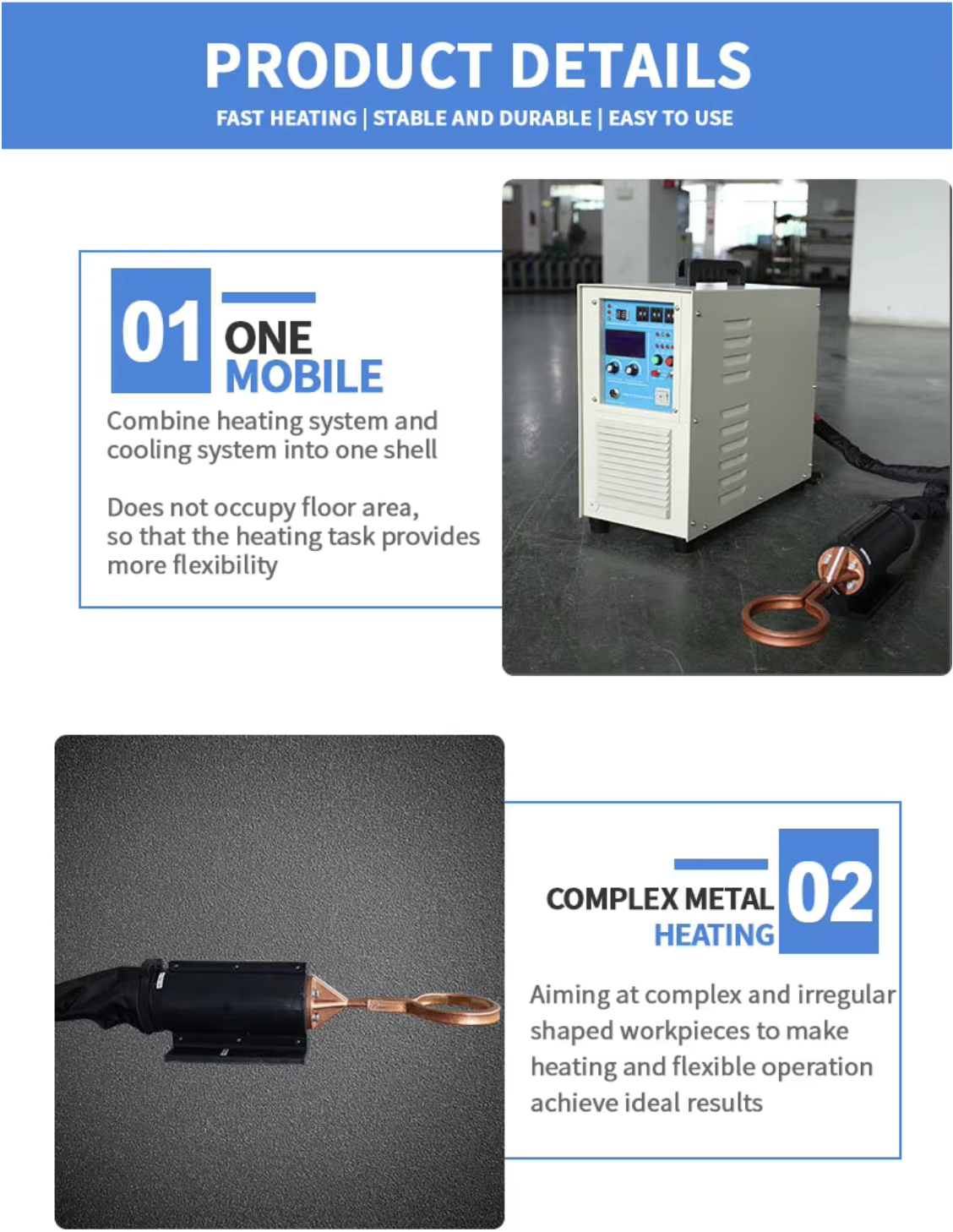

1.Combine heating system and cooling system into one shell
Does not occpy floor area.so that the heating task provides more flexibility
2.Complex metal heting Aiming at complex and iirregular shaped workpleces to make heating and flexible operation achieve ideal results

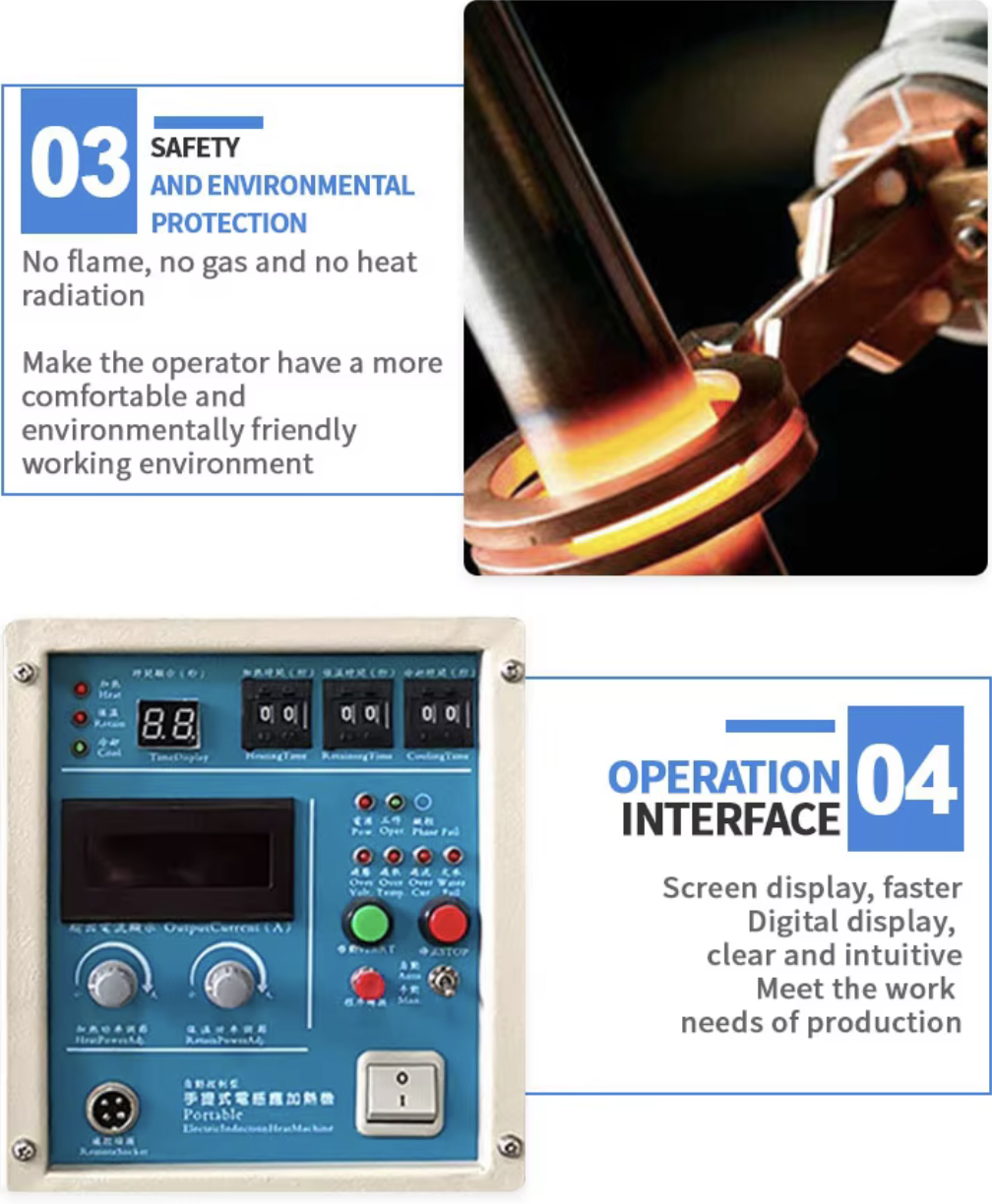

3.SAFETY AND ENVIRONMENTAL PROTECTION No flame, no gas and no heat radiation Make the operator have a more
comfortable and environmentally friendly working environment
4.OPERATION INTEREACE Screen display, faster Digital display, clear and intuitive Meet the work needs of production

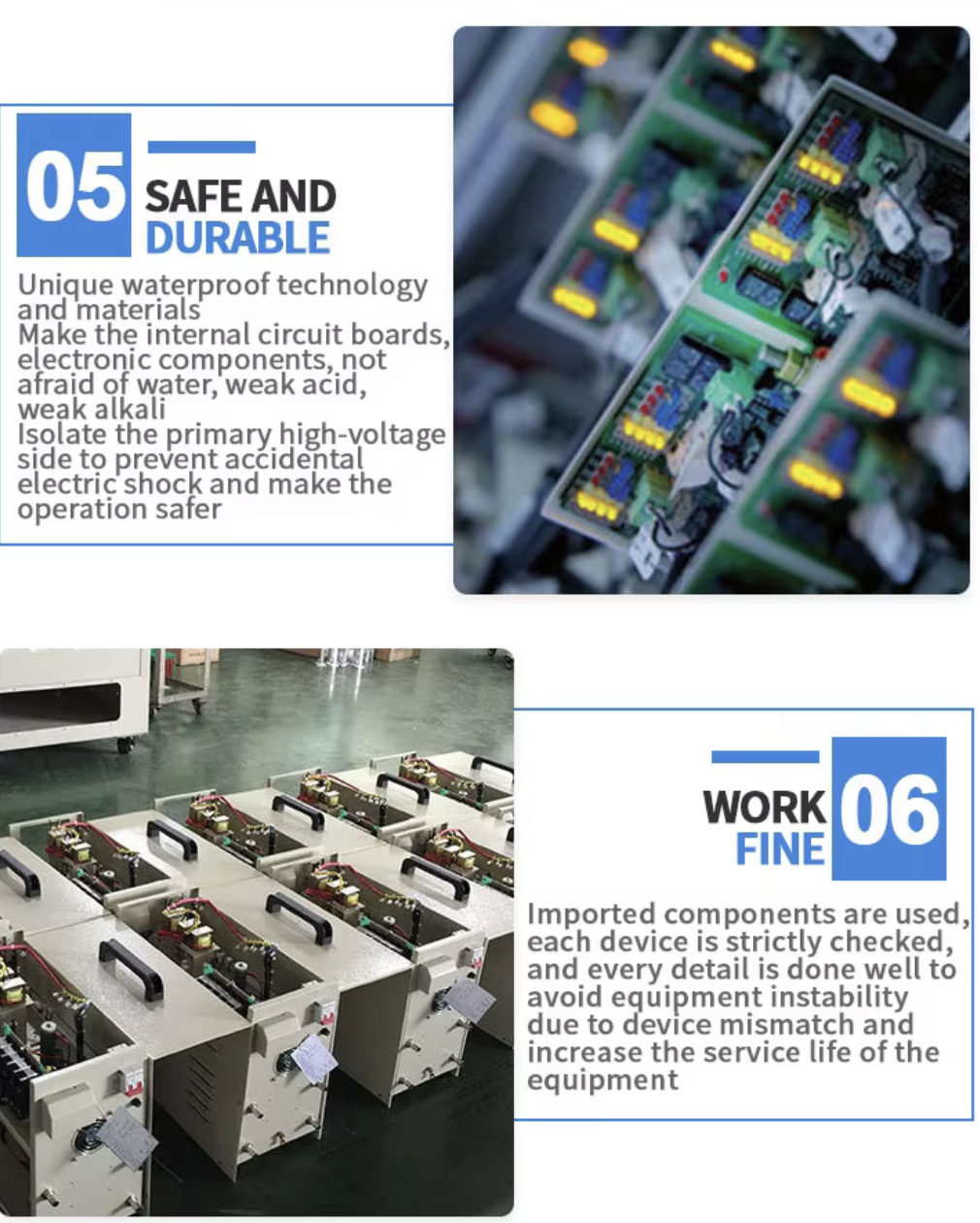

5.SAFE AND DURABLE Unique waterproof technology and materials Make the internal circuit boards electronic components, not
afraid of water, weak acid, weak alkali isolate the primary high-voltage side to prevent accidental electric' shock and make the
operation safer
6.WORK FINE Imported components are used each device is strictly checked, and every detail is done well to avoid equipment instability due to device mismatch and increase the service life of the equipment
