ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
Specifications
Brand Name :
InductionFusion
Model Number :
IF-100KW
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
Input voltage :
3-phase 380V, 50 or 60HZ
Load duration :
100%
Cooling water requirements :
≥ 0.2Mpa, ≥ 5L/min
Max temperature :
1600℃
core components :
IGBT
video outgoing-inspection :
Provided
Description
Induction Metal Heater Melting Furnace Casting Machine 100KW IGBT

Feature:

1. High power, low frequency, good heat permeability
2. High efficiency, low power consumption, easy to operate and install.
3.24 hours of continuous work ability.
4. All-solid-state IGBT frequency conversion and function adjustment to achieve automatic frequency conversion tracking.
5. Over-current, over-Asian, overheated, water-deficient, lack of equal automatic protection functions to ensure equipment
reliability.
6. Manually and automatically adjust to improve the heating quality of the workpiece and the repeatability and continuity of the
heating.

TECHNICAL PARAMETER :

Technical Parameter
Item No.
Input Power
Crucible Diameter
Melting Material Capacity
Aluminum
Copper Brass
Stainless Steel,Iron
IF-15
15kw
O.D85*165mm
3Kg
10Kg
3Kg
IF-25
25kw
O.D118*180mm
5Kg
20Kg
5Kg
IF-35
35kw
O.D130*225mm
10Kg
30Kg
10Kg
IF-45
45kw
O.D150*300mm
18Kg
50Kg
18Kg
IF-70
70kw
O.D175*325mm
25Kg
100Kg
25Kg
IF-90
90kw
O.D195*390mm
40Kg
120Kg
40Kg
IF-110
110kw
O.D210*400mm
50Kg
150Kg
50Kg
IF-160
160kw
O.D265*465mm
100Kg
250Kg
100Kg

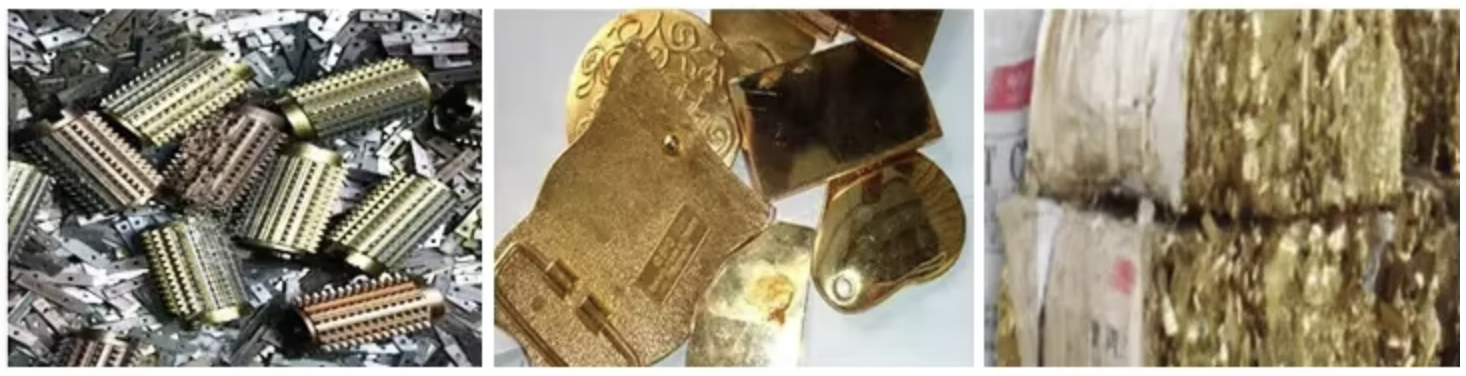

Some Of Raw Material View

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT

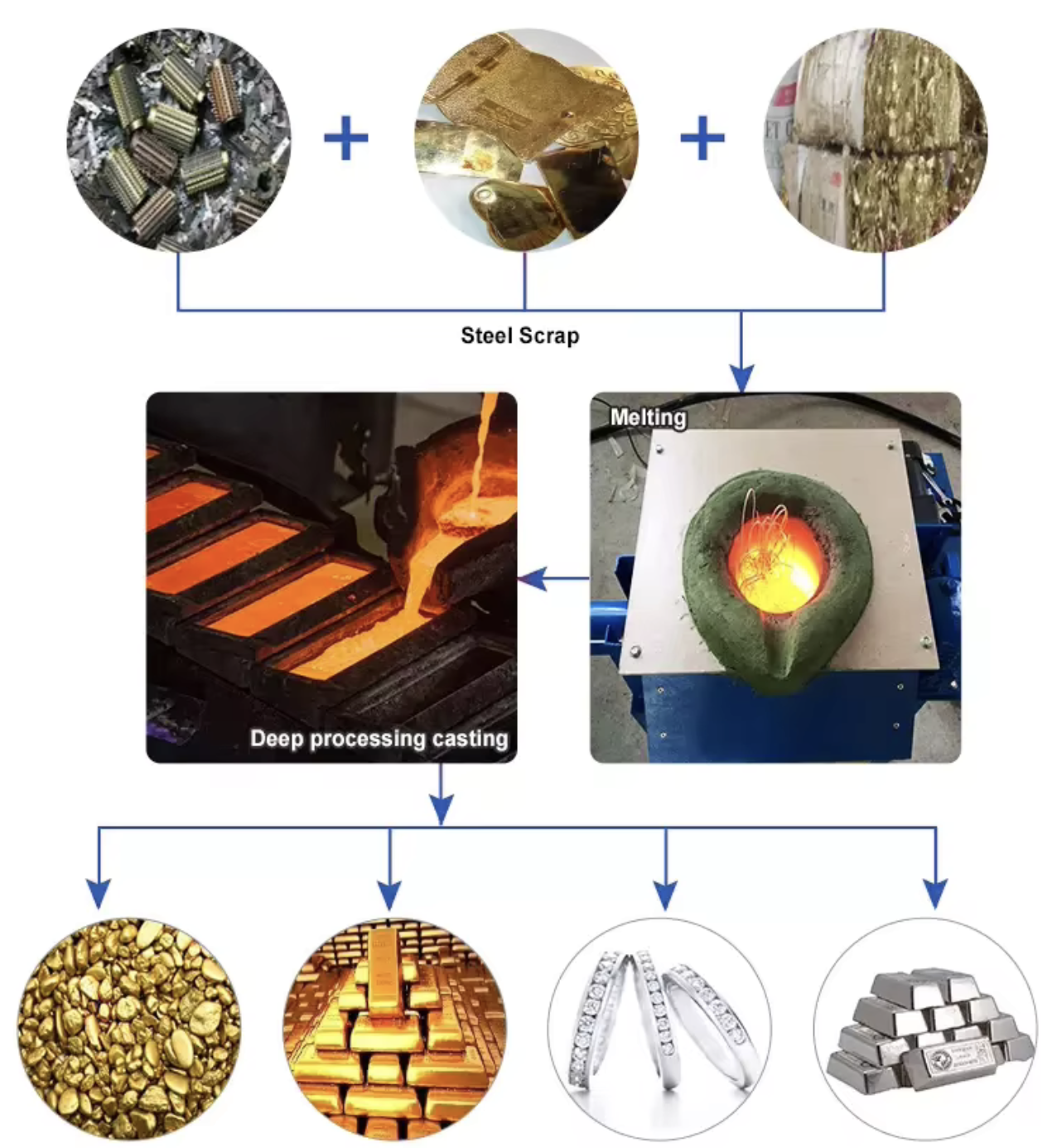

Technological Process

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT

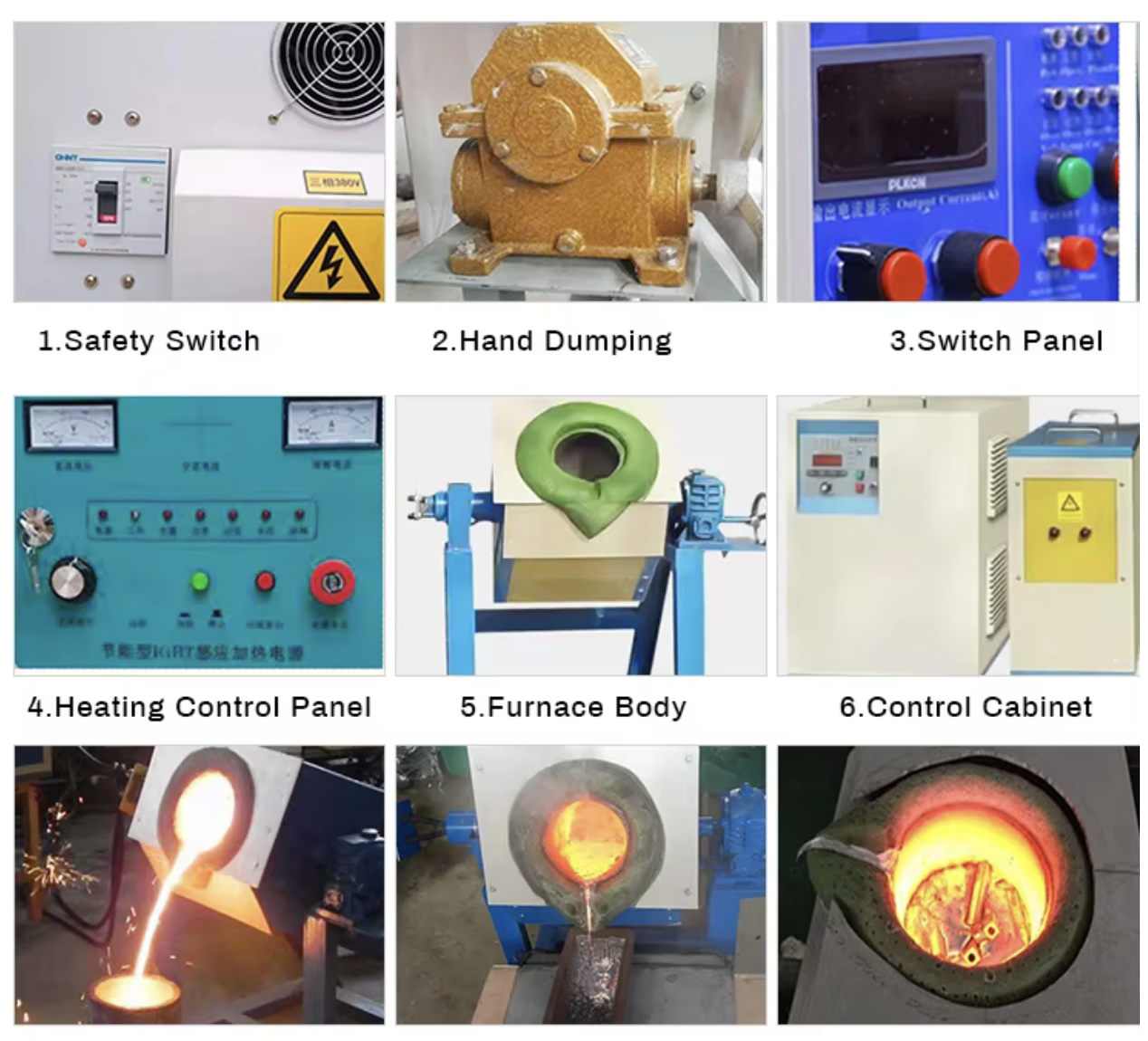

Product Details

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT

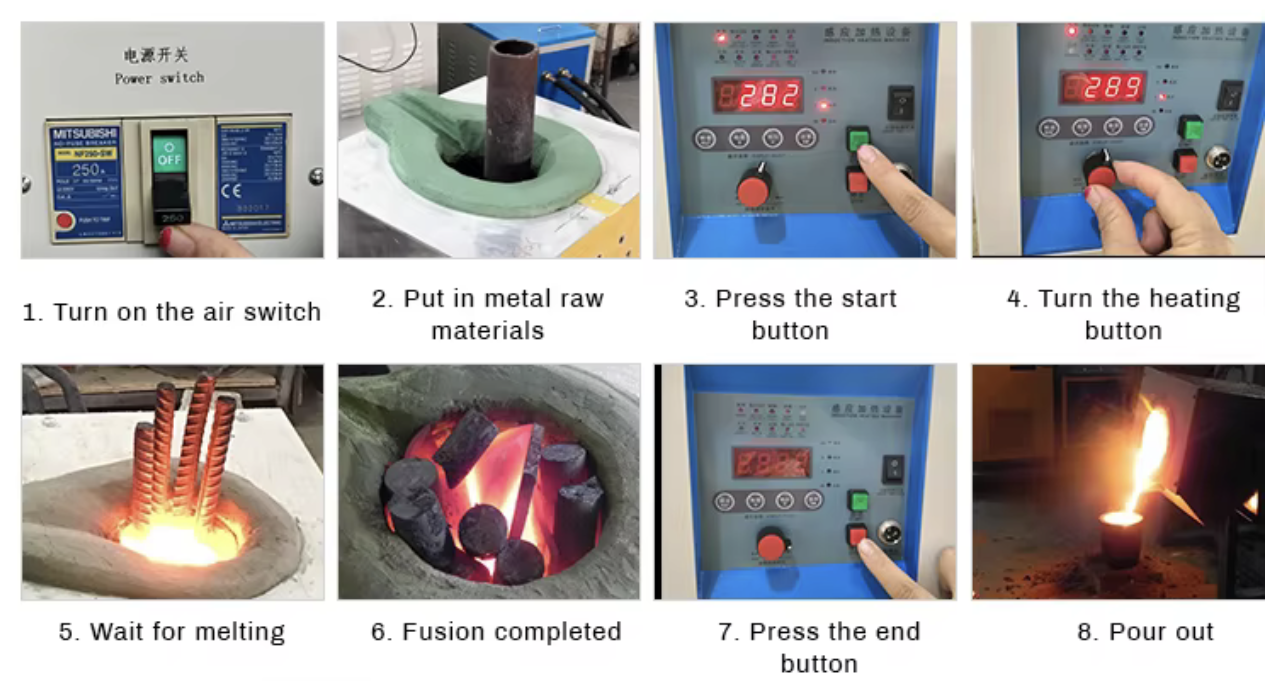

Easy installation Easy operation

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT
