60KW Induction Melting Machines 10-50khz Induction Heating Equipment
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
Specifications
Brand Name :
InductionFusion
Model Number :
IF-60AB
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
Heating Principle: :
Magnetic Field Induction Heating
Applicable Industries :
Brazing, Melting
Certificate :
CE , SGS , ROHS
Fluctuating frequency :
10-50khz
Description

60KW With Industrial Chiller Metal Heat Treatment Machine 10-50khz Fluctualting Frequency

Features:

- This equipment adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.

- It has such feaures as high power, fast heating speed, high efficiency and easy operation.

- As compared with other heating modes, it can significantly promote the economic benefits, improve the quality of heated work pieces and save the energy and material, alleviate labor intensity and improve the production environment.

- It has super small size, which can save the production space by 10 times.

- It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.

- The comprehensive full load design is available for 24-hour continuous operation.

Technical Parameter of model IF-60AB Induction Heating Equipemnt :

Model IF-60AB (Three phase)
Work power 340v-430v
Maximum input current 90A
Output power 60kw
Fluctualting frequency 10-50khz
Output current 400-2400A
The flow rate of cooling water 0.08-0.16Mpa 9L/Min
Water temperature protection point 50C
Product size main :690x640x1060 mm
transformer : 870x430x750 mm
Net weight main : 95 kg
transformer : 79.5kg

Technical Parameter of model IF-5HP Industrial Chiller :

Type IF 5HP
Refrigeration Capacity W 13350
Kcal/hr 11481
USRT 3.8
Input Power 5HP
Compressor Refrigeration system 1
Type/refrigeration Scroll/R22/R407C
Power supply 380V-3Ph-50Hz
Refrigeration Control External Equalizer Thermal Expansion Valve
Evaporator Type Finned-tube Condenser
Fan Power(W) 250
Type Shell and Tube Evaporstor
Water Flow Rate m3/h 2.3
Pipe Size(IN) 4*1/2'
Water tank capacity L Standard
Water Power(KW) 0.37
Lift(m) 18
Protection Device High/low pressure switch;fusible plug thermal overload;phase reversal relay Chilled water low temp switch
Dimension Lenth(mm) 700
Depth(mm) 1020
Height(mm) 1245
Weight KG 170
Noise dB(A) 65

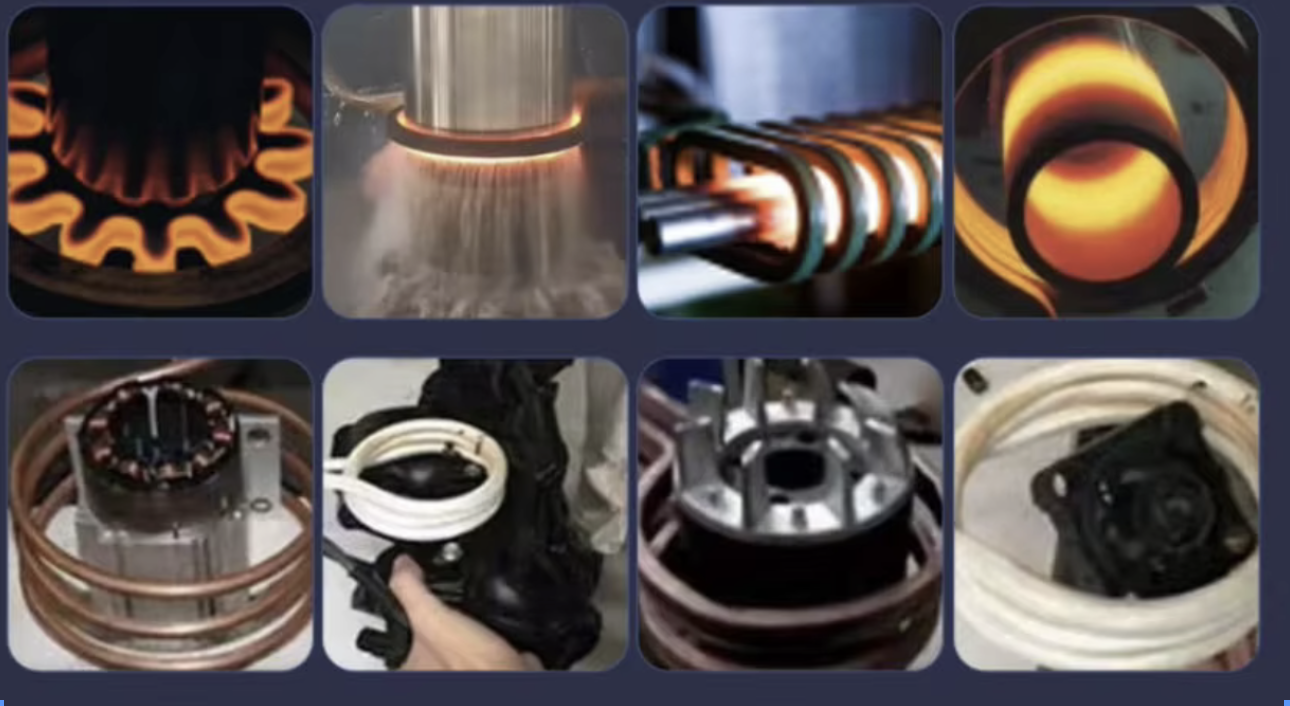

Application :

60KW Induction Melting Machines 10-50khz Induction Heating Equipment

Unleash the power of precision heating with our cutting-edge Induction Heater - revolutionize your experience, eliminate wasted time, and achieve unparalleled efficiency like never before!
the ultimate heating solution you've been waiting for. With cutting-edge electromagnetic technology, it heats materials faster,safer, and with precision. Say goodbye to open flames and welcome a new era of efficiency and versatility.

Our portable Induction Heater boasts a sleek design and intuitive controls, making it a breeze to use anywhere. Experience rapid heating and improved productivity, as energy transfers directly to the material, eliminating wasted time. Plus, our safety features ensure worry-free operation.

Achieve precise temperature control with adjustable power settings, guaranteeing optimal results every time. Save on energy costs and enjoy an eco-friendly alternative with reduced emissions. Upgrade your heating game with our Induction Heater and unlock a world of possibilities.
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
60KW Induction Melting Machines 10-50khz Induction Heating Equipment
