SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine
SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine
SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine
SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine
Specifications
Brand Name :
InductionFusion
Model Number :
IF-42
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
key selling points :
Easy To Operate
Applicable Industries :
Brazing/Melting/Forging/Quenching/Tempering/Annealing
Voltage :
380V,220V
core components :
IGBT
After-sales Service Provided :
24 Hours Online Support
Option :
With water cooling chiller
Description

SGS Approved Ultrahigh Frequency 60KW Induction Heating Equipment For Smelting

The induction heating machines have wide range of uses about
Brazing, Melting, Forging, Quenching, Tempering, Annealing

Quick Detail:

Name

SGS Approved Ultrahigh Frequency Induction Heating Equipment For Smelting

Application

Hot forging, hot fitting, smelting, surface quench, welding, annealing

Work power

360V-520V

Out power

60KW

Product size

main: 640*350*550mm

transformer: 510*300*450mm

Certificate

CE , SGS , ROHS

Specification

Model

JR-60AB (Three phase)

Work power

360V-520V

Maximum input current

90A

Output power

60KW

Fluctuating frequency

50-150KHZ

The flow rate of cooling water

0.2Mpa, 6L/min

Water temperature protection point

50C

Product size

main: 640×350×550 mm

transformer:510*300*450mm

Net weight

main: 50kgs

transformer: 28kgs

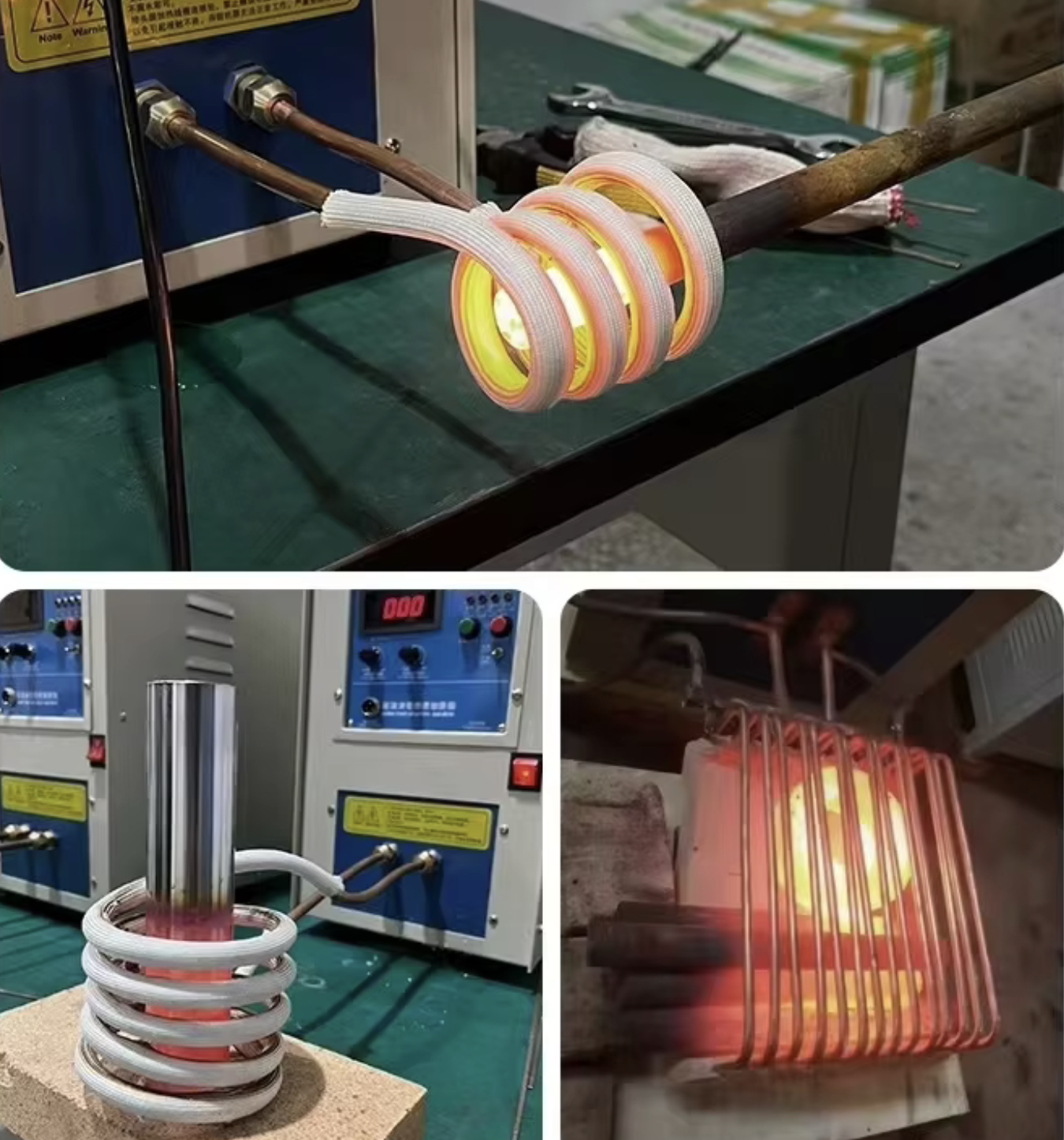

Application
Heating
After heating, metal is shaped and deformed by punching and forging press, suitable for steel, brass and other metal
diathermy forging.
SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine

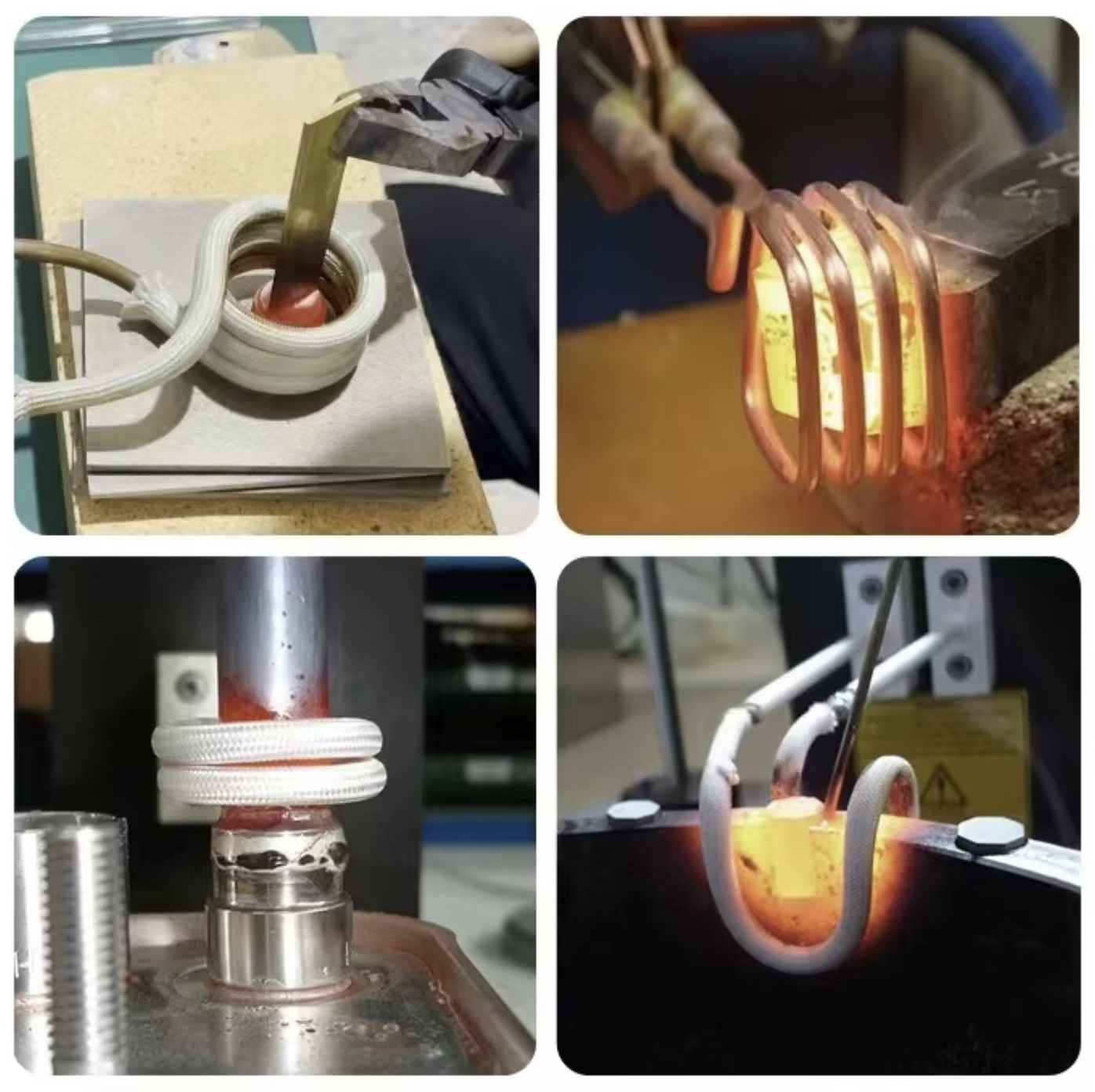

Brazing/Bonding Brazing steel, copper and other metal, suitable for air conditioning accessories, aluminum accessories, alloy cutter
head, excavator teeth welding.
SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine

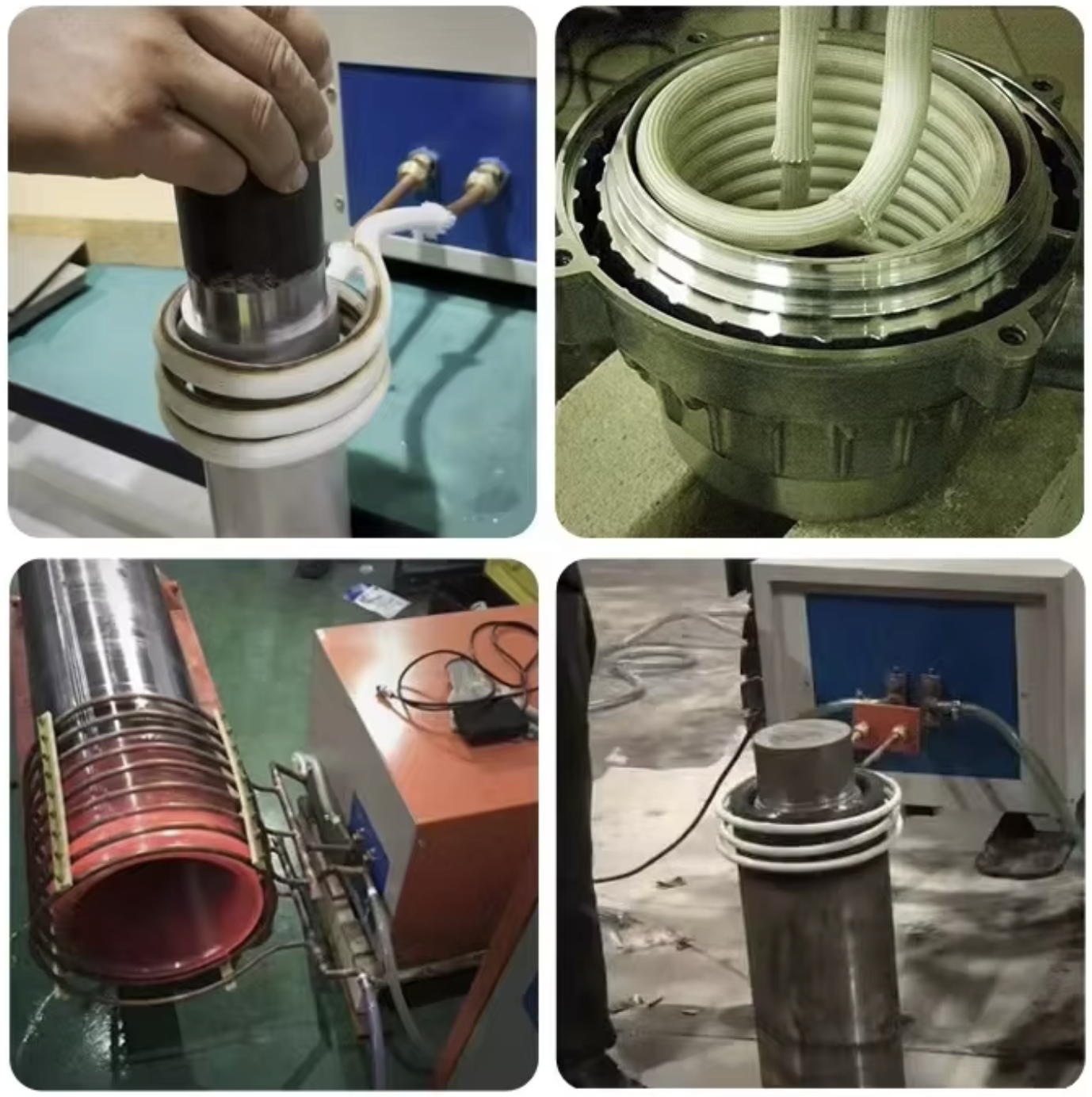

Shrink Fit
The principle of cold contraction and thermal expansion, suitable for thermal coordination such as roller shaft, motor
rotor and motor shell.
SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine

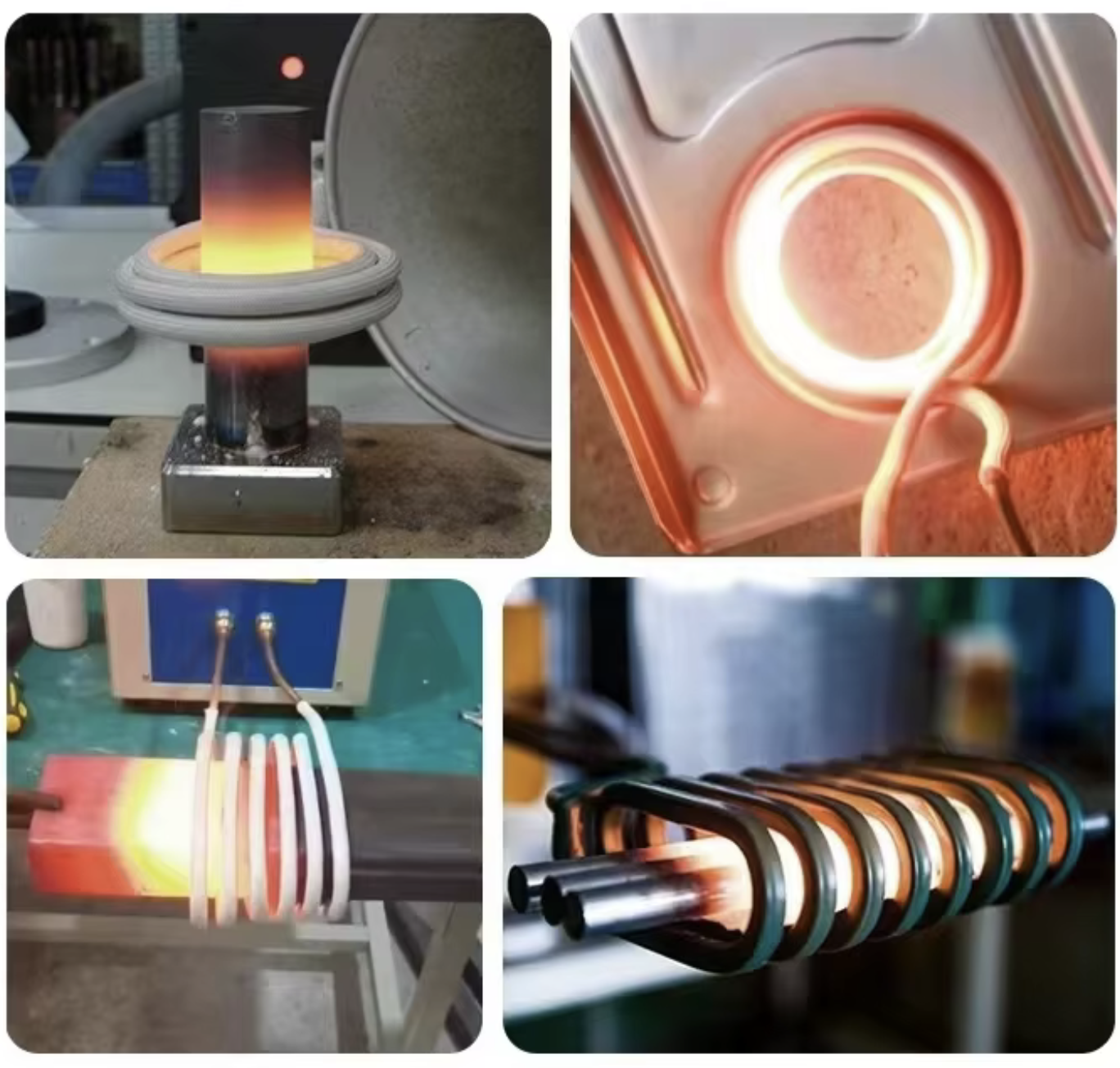

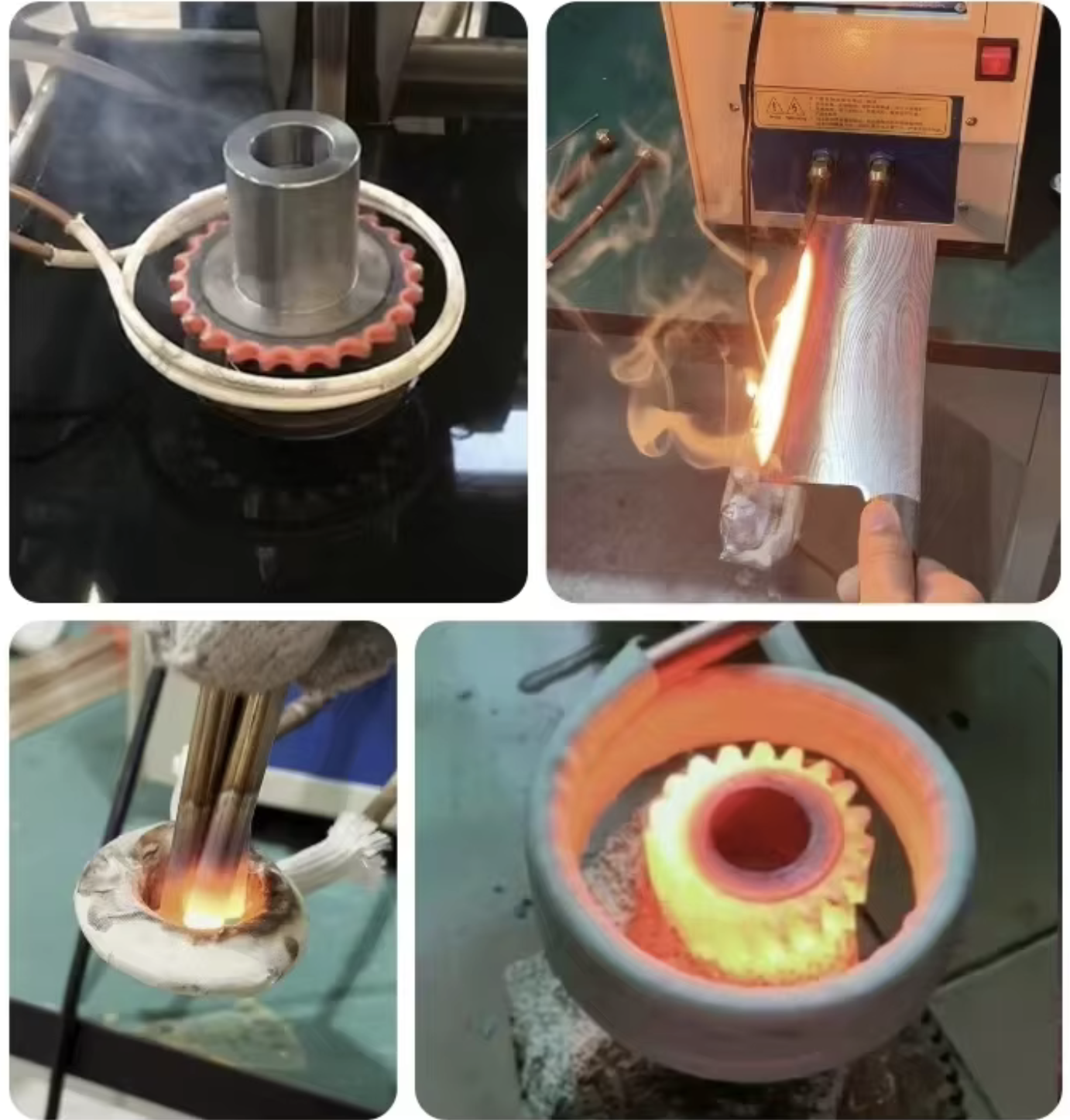

Quenching
Suitable for hardening and tempering of various workpieces,
such as induction hardening of shaft, gear and disc parts.
SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine

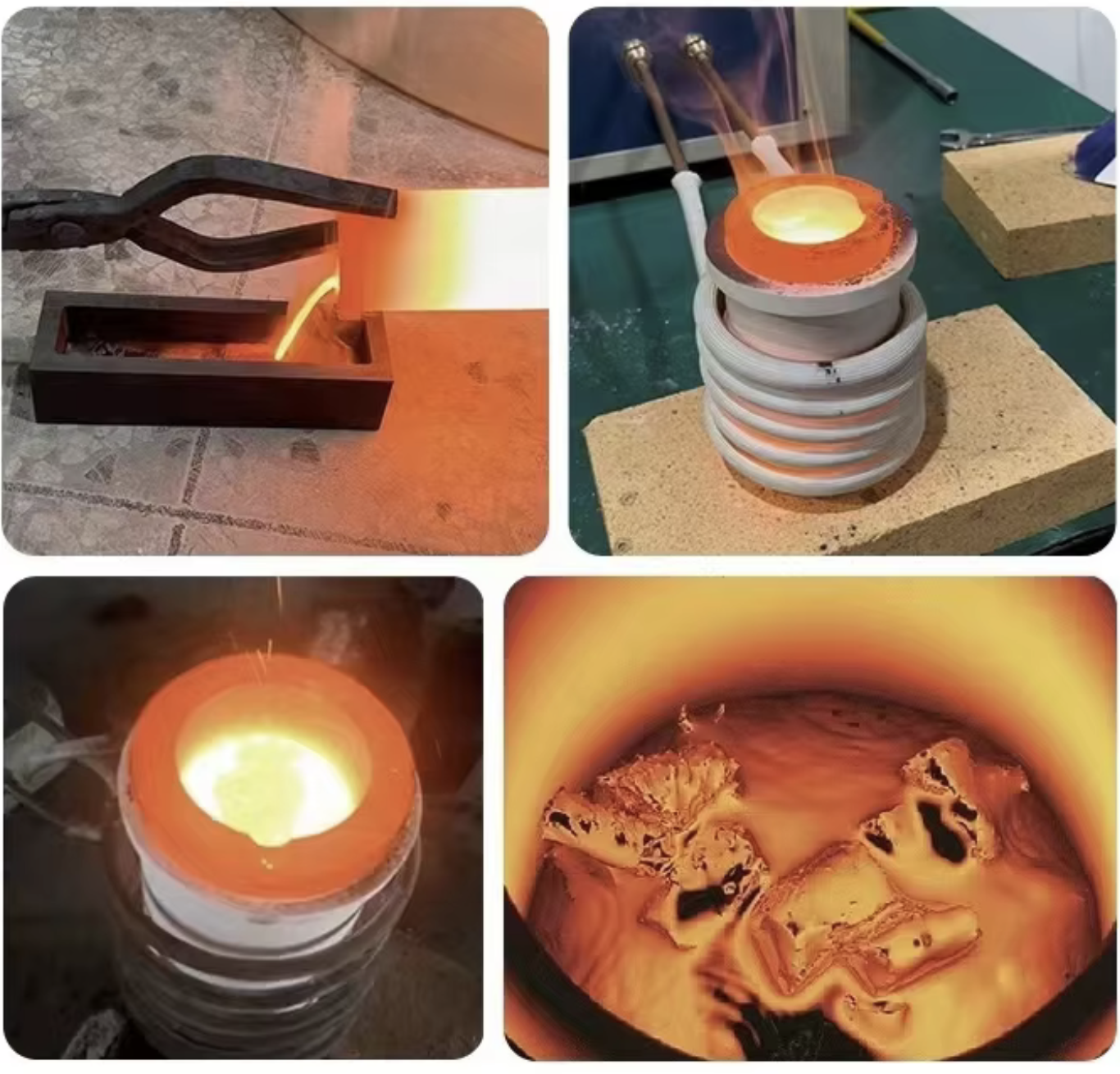

Smelting Suitable for steel, stainless steel, iron, copper, brass, gold, silver, aluminum, aluminum alloy and other non-ferrous metals
and precious metals heating smelting.

SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine

Annealing Suitable for weld annealing after welding pipe, wire, pipe, sheet bright annealing stainless steel ware after tensile
annealing.

SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine
