optically coupled isolator OPTEK 4N49A featuring hermetic sealing and MIL PRF 19500 processing for durability
optically coupled isolator OPTEK 4N49A featuring hermetic sealing and MIL PRF 19500 processing for durability
Specifications
Rise time :
25us
Fall time :
25us
Output Current :
50mA
Vce Saturation(VCE(sat)) :
300mV@20mA,10mA
Operating Temperature :
-55℃~+125℃
Load Voltage :
40V
Reverse Voltage :
2V
Current transfer ratio :
1000%;200%
Forward Current(If) :
40mA
Pd - Power Dissipation :
300mW
Number of Channels :
-
Load Type :
Phototransistor
Input type :
DC
Isolation Voltage(Vrms) :
1kV
Description :
50mA 300mV@20mA,10mA 40V 2V DC TO-78-6 Transistor, Photovoltaic Output Optoisolators RoHS
Mfr. Part # :
4N49A
Model Number :
4N49A

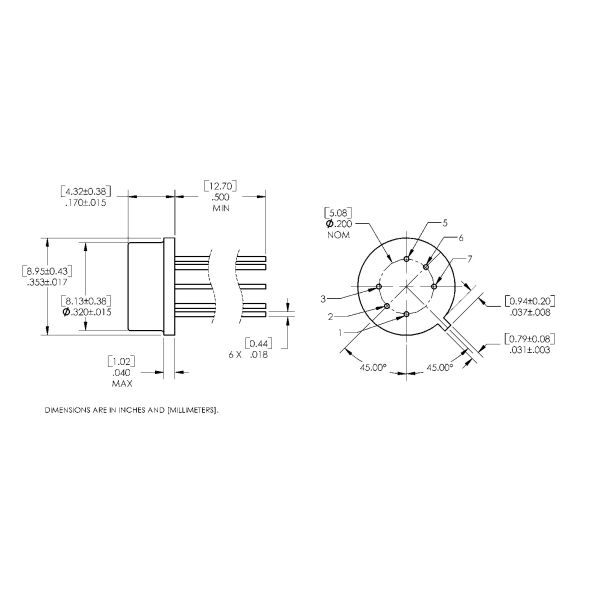

Package :
TO-78-6
Description

Hi-Reliability Optically Coupled Isolator

This series of optically coupled isolators features an infrared emitting diode and a silicon phototransistor housed in a hermetically sealed TO-78 package. Designed for and harsh environments, these devices offer high-voltage isolation between input and output, electrical isolation in dirty environments, and are suitable for industrial, medical, and office equipment. The suffix letter "D" denotes collector isolation from the case. Devices are processed to MIL-PRF-19500 standards.

Product Attributes

  • Brand: TT Electronics / Optek Technology
  • Certifications: MIL-PRF-19500/486, MIL-PRF-19500/548

Technical Specifications

Part Number Isolation Voltage (kV) CTR Min / Max (%) IF (mA) Typ / Max VCEO (Volts) Max MIL-PRF Processing
4N22 or 4N22D 1.0 10 / 40 35 / 40 35 MIL-PRF-19500/486
4N23 or 4N23D 2.0 - / - - / - 35 MIL-PRF-19500/486
4N24 or 4N24D 4.0 - / - - / - 35 MIL-PRF-19500/486
4N47 or 4N47D (Obsolete) 5.0 1 / 40 40 40 MIL-PRF-19500/548
4N48 (4N48D Obsolete) 10.0 - / - - / - - MIL-PRF-19500/548
4N49 or 4N49D 20.0 - / - - / - - MIL-PRF-19500/548

Notes:

  • 1. Measured with input leads shorted together and output leads shorted together.
  • 2. RM Fluxe is recommended. Duration can be extended to 10 seconds maximum when flow soldering.
  • 3. Operate linearly 1.0mA/C above 65C.
  • 4. Operate linearly 3.0mA/C above 25C.

Absolute Maximum Ratings (TA = 25C unless otherwise noted)

Parameter 4N22, 4N22D (dy, dys) 4N47, 4N48, 4N49 (dy, dys) Unit
Storage Temperature Range -65 to +125 -65 to +125 C
Operating Temperature Range -55 to +125 -55 to +125 C
Input-to-Output Isolation Voltage 1.00 - kV (1)
Lead Soldering Temperature (1/16 inch (1.6 mm) from case for 5 seconds with soldering iron) 260 - C (2)
Input Diode Forward Current (65C or below) 40 - mA
Input Diode Peak Forward Current (1 s pulse width, 300 pps) 1 - A
Input Diode Power Dissipation (3) 60 - mW
Output Phototransistor Continuous Collector Current 50 50 mA
Output Phototransistor Collector-Emitter Voltage 35 40 V
Output Phototransistor Collector-Case Voltage 35 45 V
Output Phototransistor Emitter-Case Voltage 4 7.0 V
Output Phototransistor Power Dissipation (4) 300 300 mW

Electrical Characteristics (TA = 25C unless otherwise noted)

SYMBOL PARAMETER TT 4N22, 4N23, 4N24 (D, dys) TT 4N47, 4N48, 4N49 (D, dys) UNIT CONDITIONS
VF Input Diode Forward Voltage 0.80 / 1.00 / 0.70 0.80 / 1.00 / 0.70 V IF = 10.0 mA (1)
1.30 / 1.50 / 1.20 1.50 / 1.70 / 1.30 V IF = 10.0 mA, TA = -55C (1)
1.30 / 1.50 / 1.20 1.50 / 1.70 / 1.30 V IF = 10.0 mA, TA = -100C (1)
IR Input Reverse Current - / - / 100 - / - / 100 A VR = 2.0V
V(BR) Output Phototransistor Collector-Emitter Breakdown Voltage 35 / 35 / 35 40 / 40 / 40 V IC = 1.0 mA, IE = 0, IF = 0
V(BR) Output Phototransistor Collector-Case Breakdown Voltage 35 / 35 / 35 45 / 45 / 45 V IC = 100 A, IE = 0, IF = 0
V(BR) Output Phototransistor Emitter-Case Breakdown Voltage 4 / 4 / 4 7 / 7 / 7 V IE = 100 A, IC = 0, IF = 0
IAR Collector-Emitter Dark Current - / - / 100 100 / 100 / 100 nA VCE = 20V, IF = 0 (2)
IC(OFF) Collector-Base Dark Current - / - / 10 10 / 10 / 10 nA VCE = 20V, IF = 0
IC(OFF) Collector-Emitter Dark Current - / - / 100 100 / 100 / 100 nA VCE = 20V, IF = 0, TA = 100C (1)
IC Coupled On-State Collector Current 0.15 / 2.50 / 1.00 0.50 / 0.70 / 0.50 mA IF = 2.0 mA, VS = 5V, IE = 0
1.00 / 1.00 / 1.00 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0
1.00 / 1.00 / 1.00 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0, TA = -55C (1)
1.00 / 1.00 / 1.00 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0, TA = 100C (1)
IC Coupled On-State Collector Current 0.20 / 6.00 / 2.50 - / - / - mA IF = 2.0 mA, VS = 5V, IE = 0
2.50 / 2.50 / 2.50 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0
2.50 / 2.50 / 2.50 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0, TA = -55C (1)
2.50 / 2.50 / 2.50 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0, TA = 100C (1)
IC Coupled On-State Collector Current 0.40 / 10.0 / 4.00 - / - / - mA IF = 2.0 mA, VS = 5V, IE = 0
4.00 / 4.00 / 4.00 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0
4.00 / 4.00 / 4.00 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0, TA = -55C (1)
4.00 / 4.00 / 4.00 - / - / - mA IF = 10.0 mA, VS = 5V, IE = 0, TA = 100C (1)
IC Coupled On-State Collector Current - / - / - 0.50 / 1.00 / 0.50 mA IF = 1.0 mA, VS = 5.0V, IE = 0
- / - / - - / - / - mA IF = 2.0 mA, VS = 5.0V, IE = 0, TA = -55C (1)
- / - / - - / - / - mA IF = 2.0 mA, VS = 5.0V, IE = 0, TA = 100C (1)
IC Coupled On-State Collector Current - / - / - 1.00 / 1.40 / 1.00 mA IF = 1.0 mA, VS = 5.0V, IE = 0
- / - / - - / - / - mA IF = 2.0 mA, VS = 5.0V, IE = 0, TA = -55C (1)
- / - / - - / - / - mA IF = 2.0 mA, VS = 5.0V, IE = 0, TA = 100C (1)
IC Coupled On-State Collector Current - / - / - 2.00 / 2.80 / 2.00 mA IF = 1.0 mA, VS = 5.0V, IE = 0
- / - / - - / - / - mA IF = 2.0 mA, VS = 5.0V, IE = 0, TA = -55C (1)
- / - / - - / - / - mA IF = 2.0 mA, VS = 5.0V, IE = 0, TA = 100C (1)
IC(ON) Collector-Base On-State Current 30 - A VS = 5V, IE = 0, IF = 10.0 mA
VCE(SAT) Collector-Emitter Saturation Voltage 0.30 / 0.30 / 0.30 0.30 / 0.30 / 0.30 V IF = 20 mA, IC = 2.5 mA, IE = 0
0.30 / 0.30 / 0.30 0.30 / 0.30 / 0.30 V IF = 20 mA, IC = 5.0 mA, IE = 0
0.30 / 0.30 / 0.30 0.30 / 0.30 / 0.30 V IF = 20 mA, IC = 10.0 mA, IE = 0
0.30 / 0.30 / 0.30 0.30 / 0.30 / 0.30 V IF = 2.0 mA, IC = 0.5 mA, IE = 0
0.30 / 0.30 / 0.30 0.30 / 0.30 / 0.30 V IF = 2.0 mA, IC = 1.0 mA, IE = 0
0.30 / 0.30 / 0.30 0.30 / 0.30 / 0.30 V IF = 2.0 mA, IC = 2.0 mA, IE = 0
HCF Current Transfer Ratio 300 / - / - - / - / - % VS = 5.0V, IF = 10.0 mA, IE = 0
R/O Resistance (Input-to-Output) 10 / 10 / 10 10 / 10 / 10 V/IO = 1000V (3)
C/O Capacitance (Input-to-Output) - / - / 5 - / - / 5 pF V/IO = 0V, f = 1.0 MHz (3)

Pin Functions

PIN FUNCTION PIN FUNCTION
1 Emitter 5 Anode
2 Case 6 Open
3 Collector 7 Cathode
7 Cathode 3 Collector
1 Emitter 2 Case
