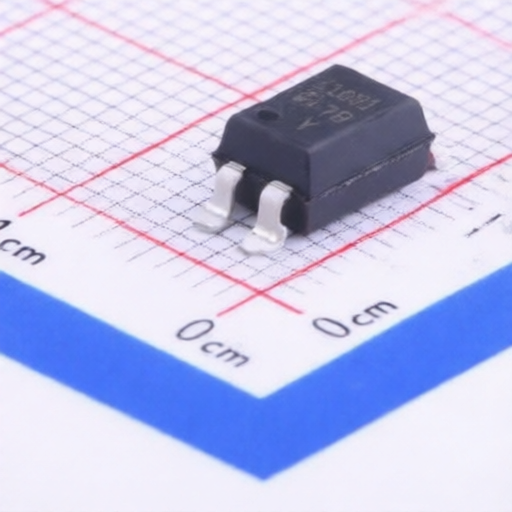

Signal Isolation Photocoupler Dual Inline Package LITEON LTV-817S-TA1 with 5000Vrms Isolation Voltage
Signal Isolation Photocoupler Dual Inline Package LITEON LTV-817S-TA1 with 5000Vrms Isolation Voltage
Specifications
Rise time :
4us
Output Current :
50mA
Fall time :
3us
Vce Saturation(VCE(sat)) :
100mV@20mA,1mA
Operating Temperature :
-55℃~+110℃
Load Voltage :
35V
Reverse Voltage :
6V
Current transfer ratio :
600%;50%
Forward Current(If) :
50mA
Pd - Power Dissipation :
200mW
Number of Channels :
1
Load Type :
Phototransistor
Input type :
DC
Isolation Voltage(Vrms) :
5kV
Description :
Phototransistor Output 5kVrms 1 Channel SMD-4P
Mfr. Part # :
LTV-817S-TA1
Model Number :
LTV-817S-TA1
Package :
SMD-4P
Description

Product Overview

The LTV-8x7 Series is a range of photocouplers from Lite-On Technology Corp., designed for high input-output isolation and efficient current transfer. These devices are available in various configurations including single, dual, and quad-channel types, with options for standard dual-in-line, wide lead spacing, and surface mounting packages. They are suitable for applications requiring high-density mounting and reliable signal isolation, such as programmable controllers and hybrid substrates.

Product Attributes

  • Brand: LITE-ON
  • Origin: Taiwan, R.O.C.
  • Certifications: UL 1577, VDE DIN EN60747-5-5 (VDE 0884-5), CSA CA5A, CQC GB4943.1-2011/ GB8898-2011, Nordic Safety (FIMKO/NEMKO/SEMKO/DEMKO), BSI
  • Compliance: RoHS Directive (No. 2011/65/EU)
  • ESD Rating: HBM 8000V/MM2000V
  • MSL Class: 1

Technical Specifications

Part NumberChannelsPackage TypeCTR (MIN.)Isolation Voltage (Viso)Response Time (tr TYP.)Applications
LTV-8171Dual-in-line50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-8272Dual-in-line50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-8474Dual-in-line50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-817M1Wide lead spacing50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-827M2Wide lead spacing50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-847M4Wide lead spacing50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-817S1Surface mounting50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-827S2Surface mounting50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-847S4Surface mounting50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-817S-TA1Tape and reel50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-817S-TA11Tape and reel50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-817S-TP1Tape and reel50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-827S-TA2Tape and reel50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers
LTV-827S-TA12Tape and reel50% at IF=5mA, VCE=5V5,000Vrms4s at VCE=2V, IC=2mA, RL=100Hybrid substrates, Programmable controllers

2410121529_LITEON-LTV-817S-TA1_C125121.pdf
