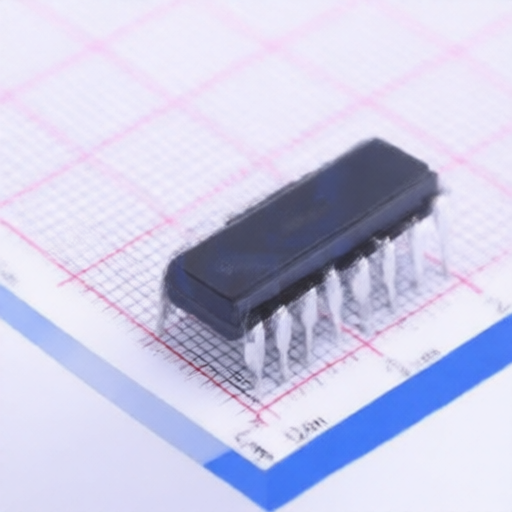

Quad channel optocoupler LITEON LTV-847 featuring high input output isolation voltage and fast response time
Quad channel optocoupler LITEON LTV-847 featuring high input output isolation voltage and fast response time
Specifications
Rise time :
4us
Output Current :
50mA
Fall time :
3us
Vce Saturation(VCE(sat)) :
100mV@20mA,1mA
Operating Temperature :
-30℃~+110℃
Load Voltage :
35V
Reverse Voltage :
6V
Current transfer ratio :
600%;50%
Forward Current(If) :
50mA
Pd - Power Dissipation :
200mW
Number of Channels :
4
Load Type :
Phototransistor
Input type :
DC
Isolation Voltage(Vrms) :
5kV
Description :
Phototransistor Output 5kVrms 4 Channel DIP-16
Mfr. Part # :
LTV-847
Model Number :
LTV-847
Package :
DIP-16
Description

Product Overview

The LTV-817/827/847 series are high-input-output isolation voltage optocouplers from Lite-On Technology Corporation. They are available in single (LTV-817), dual (LTV-827), and quad (LTV-847) channel configurations, with options for standard dual-in-line, wide lead spacing, and surface mounting packages. These optocouplers offer features such as a high CTR (MIN. 50% at IF = 5mA, VCE = 5V), excellent input-output isolation voltage (Viso = 5,000Vrms), and fast response times (tr: TYP. 4s). They are suitable for general electronic applications including office automation, communication devices, audio/visual equipment, and instrumentation.

Product Attributes

  • Brand: Lite-On
  • Certifications: UL, CSA, FIMKO, NEMKO, DEMKO, SEMKO, VDE, BSI (LTV-817 series only)
  • Compliance: RoHS

Technical Specifications

Part NumberChannelsPackage TypeInput Current (IF)Reverse Voltage (VR)Input Power Dissipation (P)Collector-Emitter Voltage (VCEO)Collector Current (IC)Collector Power Dissipation (PC)Isolation Voltage (Viso)CTR (MIN.)Response Time (tr)
LTV-8171Dual-in-line50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-8272Dual-in-line50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-8474Dual-in-line50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-817M1Wide lead spacing50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-827M2Wide lead spacing50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-847M4Wide lead spacing50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-817S1Surface mounting50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-827S2Surface mounting50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-847S4Surface mounting50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-817S-TA11Tape and reel50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
LTV-827S-TA12Tape and reel50 mA6 V70 mW35 V50 mA150 mW5,000 Vrms50%4s
