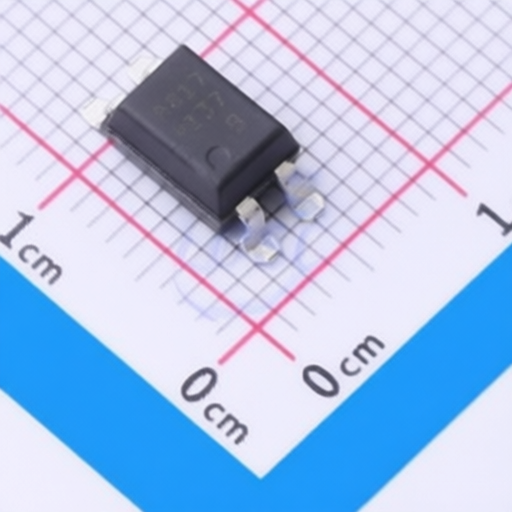

High Voltage Isolation Phototransistor Optocoupler Broadcom HCPL-817-50BE with UL and CSA Recognitions
High Voltage Isolation Phototransistor Optocoupler Broadcom HCPL-817-50BE with UL and CSA Recognitions
Specifications
Fall time :
3us
Rise time :
4us
Output Current :
30mA
Vce Saturation(VCE(sat)) :
100mV@20mA,1mA
Operating Temperature :
-30℃~+100℃
Load Voltage :
70V
Reverse Voltage :
6V
Current transfer ratio :
600%;50%
Forward Current(If) :
50mA
Pd - Power Dissipation :
200mW
Number of Channels :
1
Load Type :
Phototransistor
Input type :
DC
Isolation Voltage(Vrms) :
5kV
Description :
30mA 100mV@20mA,1mA 70V 6V DC SMD-4P Transistor, Photovoltaic Output Optoisolators RoHS
Mfr. Part # :
HCPL-817-50BE
Model Number :
HCPL-817-50BE
Package :
SMD-4P
Description

Product Overview

The Broadcom HCPL-817 is a phototransistor optocoupler designed for reliable signal transmission between circuits of different potentials and impedances. It features high input-output isolation voltage of 5000 Vrms and a compact dual-inline package, making it suitable for high-density mounting. With a typical response time of 4 s and a minimum Current Transfer Ratio (CTR) of 50% at 5 mA input current, it is an ideal solution for I/O interfaces in computers and feedback circuits in power supplies. The HCPL-817 is available in various package options, including wide-lead spacing and surface-mount configurations, and holds multiple safety approvals.

Product Attributes

  • Brand: Broadcom
  • Product Family: HCPL-817
  • Package Type: 4-pin DIP
  • Approvals: UL, CSA, IEC/EN/DIN EN 60747-5-5
  • Certifications: UL Recognized (5000 Vrms per UL1577), CSA Component Acceptance Notice #5, File CA 88324
  • RoHS Compliant: Available

Technical Specifications

Parameter Symbol Min. Typ. Max. Units Test Conditions
Forward Voltage VF 1.2 1.4 V IF = 20 mA
Reverse Current IR 10 A VR = 4V
Terminal Capacitance Ct 30 250 pF V = 0, f = 1 kHz
Collector Dark Current ICEO 100 nA VCE = 20V
Collector-Emitter Breakdown Voltage BVCEO 70 V IC = 0.1 mA
Emitter-Collector Breakdown Voltage BVECO 6 V IE = 10 A
Collector Current IC 2.5 30 mA IF = 5 mA, VCE = 5V, RBE =
Current Transfer Ratio CTR 50 600 % IF = 5 mA, VCE = 5V
Collector-Emitter Saturation Voltage VCE(sat) 0.1 0.2 V IF = 20 mA, IC = 1 mA
Response Time (Rise) tr 4 18 s VCE = 2V, IC = 2 mA, RL = 100
Response Time (Fall) tf 3 18 s VCE = 2V, IC = 2 mA, RL = 100
Cut-o? Frequency fc 80 kHz VCC = 5V, IC = 2 mA, RL = 100, 3 dB
Isolation Voltage Viso 5000 Vrms AC for 1 minute, RH = 40 ~ 60%
Input-Output Isolation Voltage Viso 5000 Vrms (Typical)
Storage Temperature TS -55 125 C
Operating Temperature TA -30 100 C
Average Forward Current IF 50 mA
Reverse Input Voltage VR 6 V
Input Power Dissipation PI 70 mW
Collector Current IC 50 mA
Collector Power Dissipation 150 mW
Total Power Dissipation 200 mW
Part Number Package CTR Rank Safety Approval Packaging Quantity
HCPL-817-000E 300-mil DIP-4 50% < CTR < 600% IEC/EN/DIN EN 60747-5-5 Tube 100 pieces
HCPL-817-300E 300-mil DIP-4 Gull Wing Surface Mount 50% < CTR < 600% IEC/EN/DIN EN 60747-5-5 Tube 100 pieces
HCPL-817-500E 300-mil DIP-4 Gull Wing Surface Mount 50% < CTR < 600% IEC/EN/DIN EN 60747-5-5 Tape and Reel 1000 pieces
HCPL-817-060E 300-mil DIP-4 50% < CTR < 600% IEC/EN/DIN EN 60747-5-5 Tube 100 pieces
HCPL-817-360E 300-mil DIP-4 Gull Wing Surface Mount 50% < CTR < 600% IEC/EN/DIN EN 60747-5-5 Tube 100 pieces
HCPL-817-560E 300-mil DIP-4 Gull Wing Surface Mount 50% < CTR < 600% IEC/EN/DIN EN 60747-5-5 Tape and Reel 1000 pieces
HCPL-817-W00E 400-mil DIP-4 50% < CTR < 600% IEC/EN/DIN EN 60747-5-5 Tube 100 pieces
HCPL-817-W60E 400-mil DIP-4 Gull Wing Surface Mount 50% < CTR < 600% IEC/EN/DIN EN 60747-5-5 Tube 100 pieces

2410311238_Broadcom-HCPL-817-50BE_C2927831.pdf
