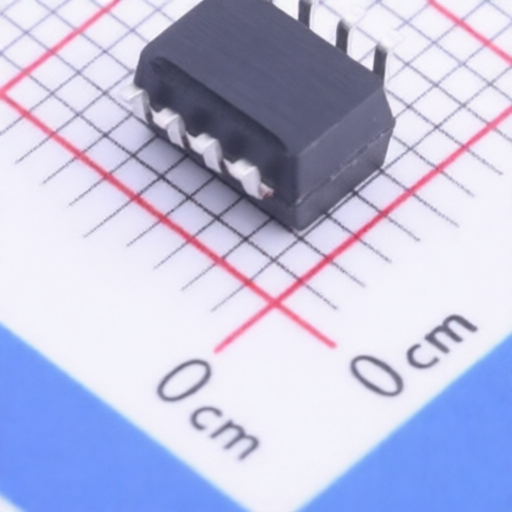

Surface mount dual channel optocoupler VISHAY ILD207T with silicon phototransistor and infrared LED
Surface mount dual channel optocoupler VISHAY ILD207T with silicon phototransistor and infrared LED
Specifications
Rise time :
3us@2mA,100Ω
Fall time :
4.7us
Output Current :
-
Vce Saturation(VCE(sat)) :
400mV@2.5mA,10mA
Operating Temperature :
-55℃~+100℃
Load Voltage :
70V
Reverse Voltage :
6V
Current transfer ratio :
200%;100%
Voltage - Forward(Vf) :
1.2V
Forward Current(If) :
30mA
Number of Channels :
2
Load Type :
Phototransistor
Input type :
DC
Isolation Voltage(Vrms) :
4kV
Description :
400mV@2.5mA,10mA 70V 6V 1.2V DC SO-8-150mil Transistor, Photovoltaic Output Optoisolators RoHS
Mfr. Part # :
ILD207T
Model Number :
ILD207T
Package :
SO-8-150mil
Description

Product Overview

The ILD205T, ILD206T, ILD207T, ILD211T, and ILD213T are dual-channel optocouplers featuring a gallium arsenide infrared LED and a silicon NPN phototransistor. They transmit signal information while maintaining high electrical isolation between input and output. These devices are supplied in a surface-mountable SOIC-8 package, ideal for high-density applications with limited space. The specified minimum and maximum CTR offers a narrow tolerance for adjacent circuit design, and the high BVCEO of 70 V provides an enhanced safety margin.

Product Attributes

  • Brand: Vishay Semiconductors
  • Package: SOIC-8
  • Certifications: UL1577 (file no. E52744), cUL (file no. E52744, equivalent to CSA bulletin 5A)
  • Material categorization: Refer to www.vishay.com/doc?99912
  • Availability: Tape and reel option (conforms to EIA standard 481-2)

Technical Specifications

Part NumberAgency Certified/PackageCTR (%) 10 mACTR (%) 1 mAIsolation Test VoltageBVCEO
ILD205TUL, cUL SOIC-840 to 8013 to 304000 VRMS70 V
ILD206TUL, cUL SOIC-863 to 12522 to 454000 VRMS70 V
ILD207TUL, cUL SOIC-8100 to 20034 to 704000 VRMS70 V
ILD211TUL, cUL SOIC-8 20-4000 VRMS70 V
ILD213TUL, cUL SOIC-8 100-4000 VRMS70 V
