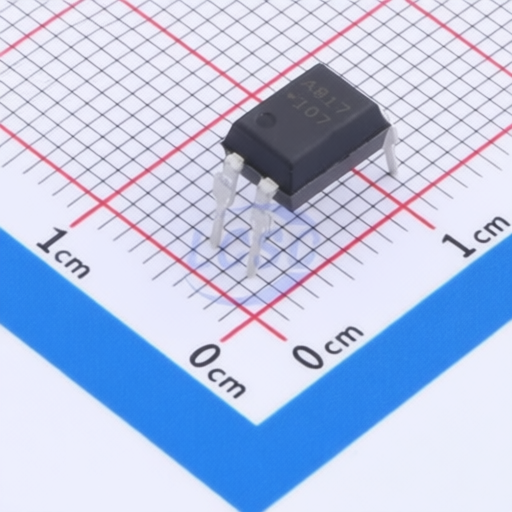

Signal Isolation Phototransistor Optocoupler Broadcom HCPL-817-000E with UL CSA and IEC Approvals
Signal Isolation Phototransistor Optocoupler Broadcom HCPL-817-000E with UL CSA and IEC Approvals
Specifications
Rise time :
4us
Output Current :
30mA
Fall time :
3us
Vce Saturation(VCE(sat)) :
100mV@20mA,1mA
Operating Temperature :
-30℃~+100℃
Load Voltage :
70V
Reverse Voltage :
6V
Current transfer ratio :
600%;50%
Forward Current(If) :
50mA
Pd - Power Dissipation :
200mW
Number of Channels :
-
Load Type :
Phototransistor
Input type :
DC
Isolation Voltage(Vrms) :
5kV
Description :
30mA 100mV@20mA,1mA 70V 6V DC DIP-4 Transistor, Photovoltaic Output Optoisolators RoHS
Mfr. Part # :
HCPL-817-000E
Model Number :
HCPL-817-000E
Package :
DIP-4
Description

Product Overview

The Broadcom HCPL-817 is a phototransistor optocoupler designed for high-density mounting, featuring an LED optically coupled to a phototransistor. It offers high input-output isolation voltage of 5000 Vrms and a typical response time of 4 s. With a minimum Current Transfer Ratio (CTR) of 50% at 5 mA input current, this compact dual-inline package component is suitable for signal transmission between circuits of different potentials and impedances, I/O interfaces for computers, and feedback circuits in power supplies. It is available in various package options including wide-lead spacing and surface-mount configurations, and holds UL, CSA, and IEC/EN/DIN EN 60747-5-5 approvals.

Product Attributes

  • Brand: Broadcom
  • Product Type: Phototransistor Optocoupler
  • Certifications: UL approved, CSA approved, IEC/EN/DIN EN 60747-5-5 approved
  • Package Type: 4-pin DIP
  • Options: Wide-lead spacing (W00), Lead bends for surface mounting (300), Tape and reel for SMD (500), IEC/EN/DIN EN 60747-5-5 approvals (060)
  • ESD Precautions: Normal static precautions advised
  • Application Restrictions: Not for or aerospace applications, not AECQ100 qualified, not recommended for automotive applications

Technical Specifications

Parameter Symbol Min. Typ. Max. Units Test Conditions
Forward Voltage VF 1.2 1.4 V IF = 20 mA
Reverse Current IR 10 A VR = 4V
Terminal Capacitance Ct 30 250 pF V = 0, f = 1 kHz
Collector Dark Current ICEO 100 nA VCE = 20V
Collector-Emitter Breakdown Voltage BVCEO 70 V IC = 0.1 mA
Emitter-Collector Breakdown Voltage BVECO 6 V IE = 10 A
Collector Current IC 2.5 30 mA IF = 5 mA, VCE = 5V, RBE =
Current Transfer Ratio CTR 50 600 % IF = 5 mA
Collector-Emitter Saturation Voltage VCE(sat) 0.1 0.2 V IF = 20 mA, IC = 1 mA
Response Time (Rise) tr 4 18 s VCE = 2V, IC = 2 mA, RL = 100
Response Time (Fall) tf 3 18 s VCE = 2V, IC = 2 mA, RL = 100
Cut-off Frequency fc 80 kHz VCC = 5V, IC = 2 mA, RL = 100, 3 dB
Isolation Resistance Riso 5 1010 1 1011 DC 500V, 40 ~ 60% RH
Floating Capacitance Cf 0.6 1.0 pF V = 0, f = 1 MHz
Input-Output Isolation Voltage Viso 5000 Vrms AC for 1 minute, RH = 40 ~ 60%
Part Number Package Surface Mount Tape and Reel IEC/EN/ DIN EN 60747-5-5 Quantity CTR Rank
HCPL-817-000E 300-mil DIP-4 100 pieces per tube 50% < CTR < 600%
HCPL-817-300E 300-mil DIP-4 X 100 pieces per tube 50% < CTR < 600%
HCPL-817-500E 300-mil DIP-4 X X 1000 pieces per reel 50% < CTR < 600%
HCPL-817-060E 300-mil DIP-4 X 100 pieces per tube 50% < CTR < 600%
HCPL-817-360E 300-mil DIP-4 X X 100 pieces per tube 50% < CTR < 600%
HCPL-817-560E 300-mil DIP-4 X X X 1000 pieces per reel 50% < CTR < 600%
HCPL-817-W00E 400-mil DIP-4 100 pieces per tube 50% < CTR < 600%
HCPL-817-W60E 400-mil DIP-4 X X 100 pieces per tube 50% < CTR < 600%
HCPL-817-00AE 300-mil DIP-4 100 pieces per tube 80% < CTR < 160%
HCPL-817-30AE 300-mil DIP-4 X 100 pieces per tube 80% < CTR < 160%
HCPL-817-50AE 300-mil DIP-4 X X 1000 pieces per reel 80% < CTR < 160%
HCPL-817-06AE 300-mil DIP-4 X 100 pieces per tube 80% < CTR < 160%
HCPL-817-36AE 300-mil DIP-4 X X 100 pieces per tube 80% < CTR < 160%
HCPL-817-W0AE 400-mil DIP-4 100 pieces per tube 80% < CTR < 160%
HCPL-817-00BE 300-mil DIP-4 100 pieces per tube 130% < CTR < 260%
HCPL-817-30BE 300-mil DIP-4 X 100 pieces per tube 130% < CTR < 260%
HCPL-817-50BE 300-mil DIP-4 X X 1000 pieces per reel 130% < CTR < 260%
HCPL-817-06BE 300-mil DIP-4 X 100 pieces per tube 130% < CTR < 260%
HCPL-817-36BE 300-mil DIP-4 X X 100 pieces per tube 130% < CTR < 260%
HCPL-817-W0BE 400-mil DIP-4 100 pieces per tube 130% < CTR < 260%
HCPL-817-00CE 300-mil DIP-4 100 pieces per tube 200% < CTR < 400%
HCPL-817-30CE 300-mil DIP-4 X 100 pieces per tube 200% < CTR < 400%
HCPL-817-50CE 300-mil DIP-4 X X 1000 pieces per reel 200% < CTR < 400%
HCPL-817-06CE 300-mil DIP-4 X 100 pieces per tube 200% < CTR < 400%
HCPL-817-36CE 300-mil DIP-4 X X 100 pieces per tube 200% < CTR < 400%
HCPL-817-W0CE 400-mil DIP-4 100 pieces per tube 200% < CTR < 400%
HCPL-817-00DE 300-mil DIP-4 100 pieces per tube 300% < CTR < 600%
HCPL-817-30DE 300-mil DIP-4 X 100 pieces per tube 300% < CTR < 600%
HCPL-817-50DE 300-mil DIP-4 X X 1000 pieces per reel 300% < CTR < 600%
HCPL-817-06DE 300-mil DIP-4 X 100 pieces per tube 300% < CTR < 600%
HCPL-817-36DE 300-mil DIP-4 X X 100 pieces per tube 300% < CTR < 600%
HCPL-817-W0DE 400-mil DIP-4 100 pieces per tube 300% < CTR < 600%
HCPL-817-00LE 300-mil DIP-4 100 pieces per tube 50% < CTR < 100%
HCPL-817-30LE 300-mil DIP-4 X 100 pieces per tube 50% < CTR < 100%
HCPL-817-50LE 300-mil DIP-4 X X 1000 pieces per reel 50% < CTR < 100%
HCPL-817-06LE 300-mil DIP-4 X 100 pieces per tube 50% < CTR < 100%
HCPL-817-36LE 300-mil DIP-4 X X 100 pieces per tube 50% < CTR < 100%
HCPL-817-W0LE 400-mil DIP-4 100 pieces per tube 50% < CTR < 100%
